Plot the P-V curve for an isothermal and an adiabatic expansion for a monoatomic and a...

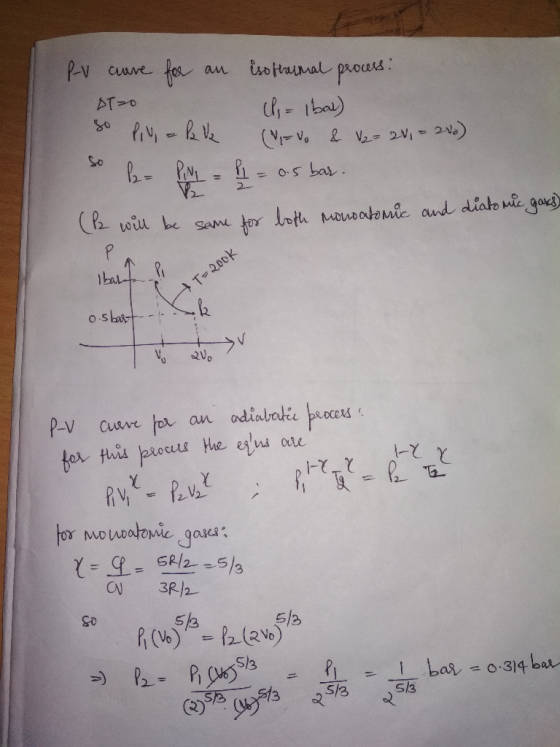

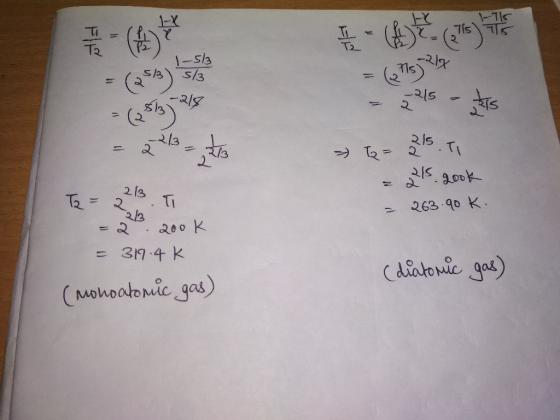

Plot the P-V curve for an isothermal and an adiabatic expansion for a monoatomic and a diatomic ideal gas to double its volume with a starting temperature of 200 K. The starting pressure for both curves is 1 bar.
Homework Answers
Add Answer to:
Plot the P-V curve for an isothermal and an adiabatic expansion
for a monoatomic and a...
1.00 mile of a monoatomic ideal gas at 298 K undergoes isothermal expansion from an initial...
1.00 mile of a monoatomic ideal gas at 298 K undergoes
isothermal expansion from an initial pressure of 12.0 bar to 5.00
bar. Calculate the work if the expansion is done
a) against a constant external pressure
b) reversibly and isothermally.
Problem 3 1.00 mole of a monoatomic ideal gas at 298 K undergoes isothermal expansion from an initial pressure of 12.0 bar to 5.00 bar. Calculate the work if the expansion is done (a) against a constant external pressure...
Two moles of an ideal gas undergo an isothermal expansion at 565 K from a pressure...
Two moles of an ideal gas undergo an isothermal expansion at 565 K from a pressure of 12.5 Bar to a final pressure of 1.50 Bar. Calculate AU, AH, and AS for the process if Cy = R. The same ideal gas undergoes an adiabatic expansion from the same initial pressure to the same final pressure (and the same initial temperature). Calculate the final temperature, AU, AH, and AS for the process.
4.)Write an expression for the relationship between P and V for the adiabatic compression of air....
4.)Write an expression for the relationship between P and V for
the adiabatic compression of air.
5.)do the results above agree with this expression with 5%? what
discrepancies could there be?
6.)Does the syringe return to it's initial volume when the
plunger is released?
7.) provide a Pressure-Volume graph of he compression and
expansion cycle of the gas. label the adiabatic, isothermal and
isovolumetric.
Pressure (kPa) Volume (ml) Temperature (°C Temperature (K) initial 40 26.40 299.55 [102.337 [211-818 Maximum pressure...
A diatomic gas describes a Carnot cycle in which, through an isothermal expansion process at 850...
A diatomic gas describes a Carnot cycle in which, through an isothermal expansion process at 850 K it passes from a pressure of 10 atm and a volume of 2 L at a pressure of 8 atm. Subsequently there is an adiabatic expansion and isothermal compression at a temperature of 310 K. Finally, in the adiabatic compression the initial point is reached at 10 atm of pressure and a volume of 2 L. Make a scheme of the process and...
Item 10 In this problem you are to consider an adiabatic expansion of an ideal diatomic...
Item 10 In this problem you are to consider an adiabatic expansion of an ideal diatomic gas, which means that the gas expands with no addition or subtraction of heat. Part A Assume that the gas is initially at pressure Po, volume V. and temperature To. In addition, assume that the temperature of the gas is such that you can neglect vibrational degrees of freedom. Thus, the ratio of heat capacities is y=Cp/Cy = 7/5. Find an analytic expression for...
Consider a reversible isothermal expansion of a gas at temperature τ from volume V to volume...
Consider a reversible isothermal expansion of a gas at temperature τ from volume V to volume V + ∆V . This is not a monatomic ideal gas, but the internal energy of the gas is given by U(τ, V ) = a*V* τ^ 4 , where a is a constant. The pressure is p = (1/3 U)/V . (a) What is the change of energy of the gas in the expansion? (b) How much work is done on the gas...
2) Calculate w for the adiabatic expansion of 2.50 mol of an ideal gas at an...
2) Calculate w for the adiabatic expansion of 2.50 mol of an ideal gas at an initial pressure of 2.25 bar from an initial temper- ature of 450. K to a final temperature of 300. K. Write an expression for the work done in the isothermal reversible expan- sion of the gas at 300. K from an initial pressure of 2.25 bar. What value of the final pressure would give the same value of w as the first part of...
One liter of a monoatomic ideal gas at 3 atm is subject to reversible adiabatic expansion...
One liter of a monoatomic ideal gas at 3 atm is subject to reversible adiabatic expansion to .5 atm to a final volume of 2.9 L. Calculate the work, the heat, and the enthalpy change in this process.
28. The work done by an ideal gas in an isothermal expansion from v volume Vs...
28. The work done by an ideal gas in an isothermal expansion from v volume Vs to volume V, is glven by the formula: w = nRT In(V/V) spheric pressure (1 atm) is 101.3 KPa. If 1.0 L of He gas at room temperature 0 atm of (208C) and 1. work is done on the gas? pressure is compressed isothermally to a volume of 100 mL, how much 02 E 23x1 D) 2.3 x 10 A) 5.6 ku B) 4.7...
5) Two ideal gas systems undergo reversible expansion under different conditions starting from the same P...
5) Two ideal gas systems undergo reversible expansion under different conditions starting from the same P and V. At the end of the expansion, the two systems have the same volume. The pressure in the system that has undergone adiabatic expansion is lower than in the system that has undergone isothermal expansion. Explain this result without using equations.
1.00 mile of a monoatomic ideal gas at 298 K undergoes
isothermal expansion from an initial pressure of 12.0 bar to 5.00
bar. Calculate the work if the expansion is done
a) against a constant external pressure
b) reversibly and isothermally.
Problem 3 1.00 mole of a monoatomic ideal gas at 298 K undergoes isothermal expansion from an initial pressure of 12.0 bar to 5.00 bar. Calculate the work if the expansion is done (a) against a constant external pressure...
Two moles of an ideal gas undergo an isothermal expansion at 565 K from a pressure of 12.5 Bar to a final pressure of 1.50 Bar. Calculate AU, AH, and AS for the process if Cy = R. The same ideal gas undergoes an adiabatic expansion from the same initial pressure to the same final pressure (and the same initial temperature). Calculate the final temperature, AU, AH, and AS for the process.
4.)Write an expression for the relationship between P and V for
the adiabatic compression of air.
5.)do the results above agree with this expression with 5%? what
discrepancies could there be?
6.)Does the syringe return to it's initial volume when the
plunger is released?
7.) provide a Pressure-Volume graph of he compression and
expansion cycle of the gas. label the adiabatic, isothermal and
isovolumetric.
Pressure (kPa) Volume (ml) Temperature (°C Temperature (K) initial 40 26.40 299.55 [102.337 [211-818 Maximum pressure...
Item 10 In this problem you are to consider an adiabatic expansion of an ideal diatomic gas, which means that the gas expands with no addition or subtraction of heat. Part A Assume that the gas is initially at pressure Po, volume V. and temperature To. In addition, assume that the temperature of the gas is such that you can neglect vibrational degrees of freedom. Thus, the ratio of heat capacities is y=Cp/Cy = 7/5. Find an analytic expression for...
2) Calculate w for the adiabatic expansion of 2.50 mol of an ideal gas at an initial pressure of 2.25 bar from an initial temper- ature of 450. K to a final temperature of 300. K. Write an expression for the work done in the isothermal reversible expan- sion of the gas at 300. K from an initial pressure of 2.25 bar. What value of the final pressure would give the same value of w as the first part of...
28. The work done by an ideal gas in an isothermal expansion from v volume Vs to volume V, is glven by the formula: w = nRT In(V/V) spheric pressure (1 atm) is 101.3 KPa. If 1.0 L of He gas at room temperature 0 atm of (208C) and 1. work is done on the gas? pressure is compressed isothermally to a volume of 100 mL, how much 02 E 23x1 D) 2.3 x 10 A) 5.6 ku B) 4.7...
5) Two ideal gas systems undergo reversible expansion under different conditions starting from the same P and V. At the end of the expansion, the two systems have the same volume. The pressure in the system that has undergone adiabatic expansion is lower than in the system that has undergone isothermal expansion. Explain this result without using equations.
