A diatomic gas describes a Carnot cycle in which, through an isothermal expansion process at 850...
A diatomic gas describes a Carnot cycle in which, through an
isothermal expansion process
at 850 K it passes from a pressure of 10 atm and a volume of 2 L at
a pressure of 8 atm.
Subsequently there is an adiabatic expansion and isothermal
compression at a temperature
of 310 K. Finally, in the adiabatic compression the initial point
is reached at 10 atm of pressure and a
volume of 2 L.

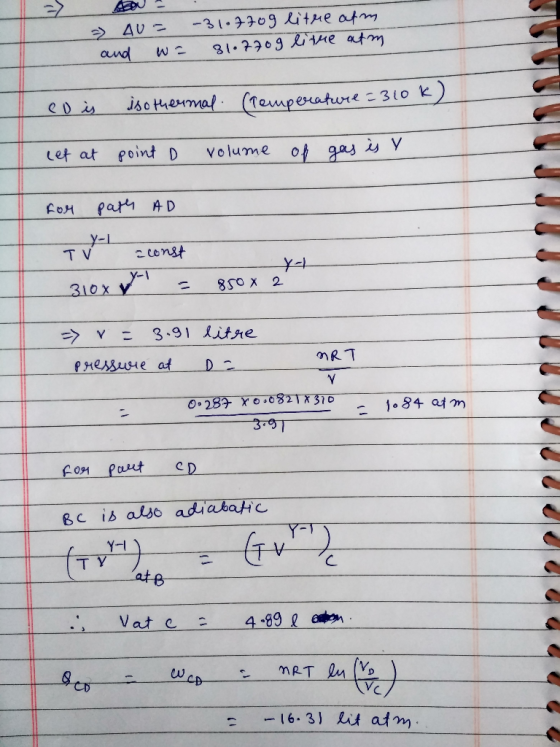

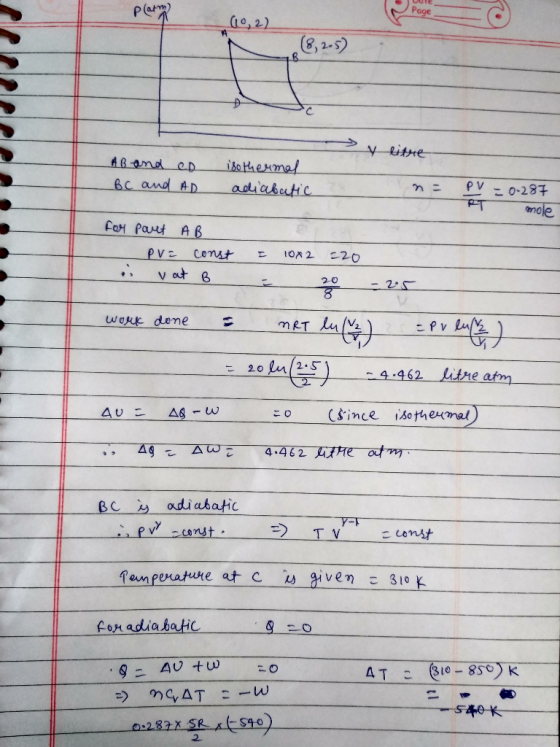

Make a scheme of the process and indicate the values of pressure,
volume and temperature in each one

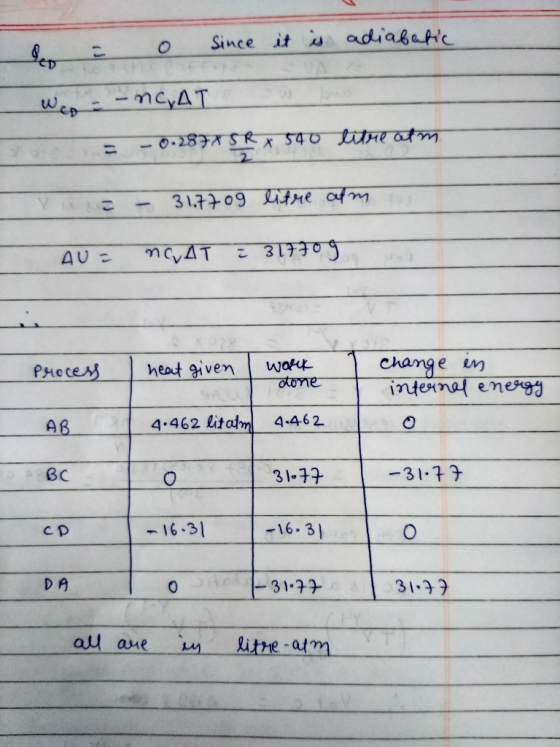

of the vertices of the cycle. Calculate the work, the internal
energy variation and the heat in each of
the stages of the cycle. DATA: R = 8.314 J / mol.K = 0.082 atm.L /
mol.K
Homework Answers
Add Answer to:
A diatomic gas describes a Carnot cycle in which, through an
isothermal expansion process
at 850...
A Carnot cycle is conducted using an ideal diatomic gas. Initially, the gas is at temperature...
A Carnot cycle is conducted using an ideal diatomic gas. Initially, the gas is at temperature 25C., pressure of 100KPa and volume of 0.01m3. The system is then compressed isothermally to a volume 0.002m3. From that point, the gas undergoes an adiabatic compression ( with gamma= 1.4), until the volume further reduces to 0.001m3. After that, the system goes an isothermal expansion process to a point where the pressure of the system is 263.8KPa. Then the system continues the cycle...
An ideal gas (1.82 moles) undergoes the following reversible Carnot cycle. (1) An isothermal expansion at...
An ideal gas (1.82 moles) undergoes the following reversible Carnot cycle. (1) An isothermal expansion at Thot=850K from 3.20L to 20.40L. (2) An adiabatic expansion until the temperature falls to 298K. The system then undergoes (3) an isothermal compression and a subsequent (4) adiabatic compression until the initial state is reached. a. Calculate work and ΔS for each step in the cycle and its overall efficiency. b. Determine ΔH and ΔU for steps (1) and (2). c. Explain why ΔUcycle=...
A 1.00-mol sample of an ideal gas (γ = 1.40) is carried through the Carnot cycle....
A 1.00-mol sample of an ideal gas (γ = 1.40) is carried through the Carnot cycle. Before the isothermal expansion takes place, the pressure of the gas is 25.0 atm and the temperature is 600 K. Before the isothermal compression, the pressure is 1.00 atm and the temperature is 400 K. Determine the pressures and volumes at all end points in the Carnot cycle (at each end point, the cycle switches between different processes).
3. In a Carnot cycle, the isothermal expansion of an ideal gas takes place at 410...
3. In a Carnot cycle, the isothermal expansion of an ideal gas takes place at 410 K and the isothermal compression at 320 K. During the expansion 600 J of heat energy are transferred to the gas. Determine (a) the work performed by the gas during the cycle, () the heat transferred to the cooler, (c) the efficiency of the cycle
An ideal gas is taken through a Carnot cycle. The isothermal expansion occurs at 290°C, and...
An ideal gas is taken through a Carnot cycle. The isothermal expansion occurs at 290°C, and the isothermal compression takes place at 50.0°C. The gas takes in 1.34 103 J of energy from the hot reservoir during the isothermal expansion. (a) Find the energy expelled to the cold reservoir in each cycle. J (b) Find the net work done by the gas in each cycle. J
Consider a Carnot cycle starting at the state of highest pressure and smallest volume. Call the...
Consider a Carnot cycle starting at the state of highest pressure and smallest volume. Call the isothermal expansion that starts at this state step 1, the adiabatic expansion which follows step 2, the isothermal compression that then follows step 3, and the adiabatic compression which returns the system to the initial state step 4. In which step does the entropy of the system increase?
Consider a Carnot cycle in which the working substance is 0.10 mol of perfect gas molecules,...
Consider a Carnot cycle in which the working substance is 0.10 mol of perfect gas molecules, the temperature of the hot source is 373 K, that of the cold sink is 273 K; the initial volume of gas is 1.00 dm', which doubles over the course of the first isothermal stage. For the reversible adiabatic stages it may be assumed that VT3/2 = constant. a) calculate the volume of the gas VB and Vc); b) calculate the volume of the...
The working substance of an engine is 1.00 mol of a diatomic ideal gas. The engine...
The working substance of an engine is 1.00 mol of a diatomic ideal gas. The engine operates in a cycle consisting of three steps: (1) an adiabatic expansion from an initial volume of 9.00 L to a pressure of 1.00 atm and a volume of23.4 L, (2) a compression at constant pressure to its original volume of 9.00 L, and (3) heating at constant volume to its original pressure. Find the efficiency of this cycle.
The working substance of an engine is 1.00 mol of diatomic gas. The engine operates in...
The working substance of an engine is 1.00 mol of diatomic gas. The engine operates in a cycle consisting of three steps: (1) an adiabatic expansion from an initial volume of 9.00 L to a pressure of 1.00 atm and a volume of 30.6 L, (2) a compression at constant pressure to its original volume of 9.00 L, and (3) heating at constant volume to its original pressure. Find the efficiency of this cycle.
Suppose 0.270 mol of an ideal diatomic gas (γ=1.40) undergoes a Carnot cycle between 327C and...
Suppose 0.270 mol of an ideal diatomic gas (γ=1.40) undergoes a Carnot cycle between 327C and 127C, starting at pa =12.0x105 Pa at point a in the pV-diagram for the Carnot cycle. The volume doubles during the isothermal expansion step a to b. (a) Find the pressure and volume at points a, b, c and d. (b) Find Q, W and dU for each step and for the entire cycle. (c) Find the efficiency directly from the results of part...
3. In a Carnot cycle, the isothermal expansion of an ideal gas takes place at 410 K and the isothermal compression at 320 K. During the expansion 600 J of heat energy are transferred to the gas. Determine (a) the work performed by the gas during the cycle, () the heat transferred to the cooler, (c) the efficiency of the cycle
Consider a Carnot cycle in which the working substance is 0.10 mol of perfect gas molecules, the temperature of the hot source is 373 K, that of the cold sink is 273 K; the initial volume of gas is 1.00 dm', which doubles over the course of the first isothermal stage. For the reversible adiabatic stages it may be assumed that VT3/2 = constant. a) calculate the volume of the gas VB and Vc); b) calculate the volume of the...
