The DFT sequence of x[n] of length x[n] is given as follows: X[0] = 2 X[1]...

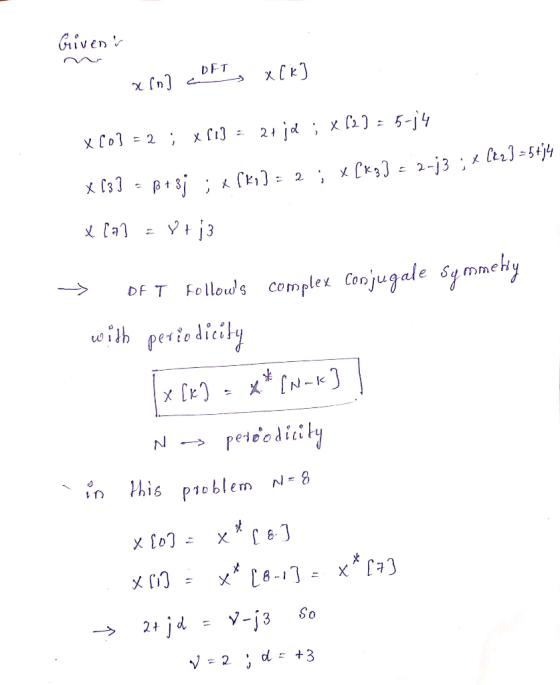

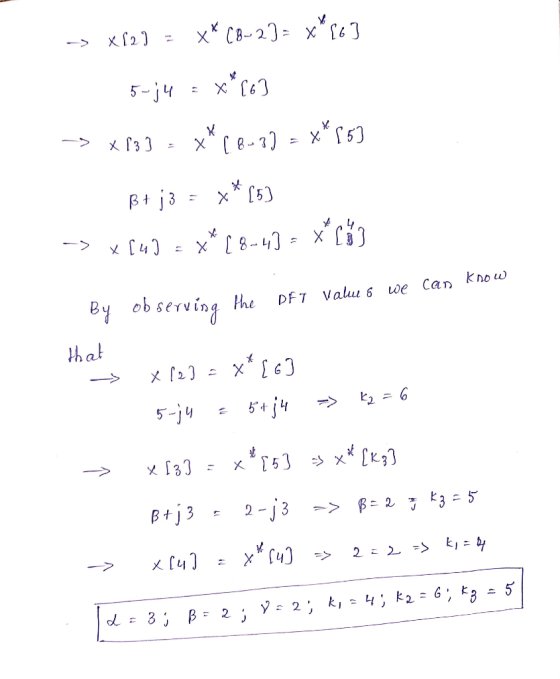

The DFT sequence of x[n] of length x[n] is given as follows:
X[0] = 2
X[1] = 2 + jα
X[2] = 5-j4
X[3] = β+j3
X[k1] = 2
X[k3] = 2-j3
X[k2] = 5+j4
X[7] = γ+j3
Find α, β, γ, k1, k2 & k3
Homework Answers
Add Answer to:
The DFT sequence of x[n] of length x[n] is given as follows:
X[0] = 2
X[1]...
