Homework Answers
Add Answer to:
The DFT is a sampled version of the DTFT of a finite-length sequence; i.e., N-1 (P9.25-1) Furthermore, an FFT algorithm...
The DFT is a sampled version of the DTFT of a finite-length sequence; i.e., N-1 (P9.25-1)...

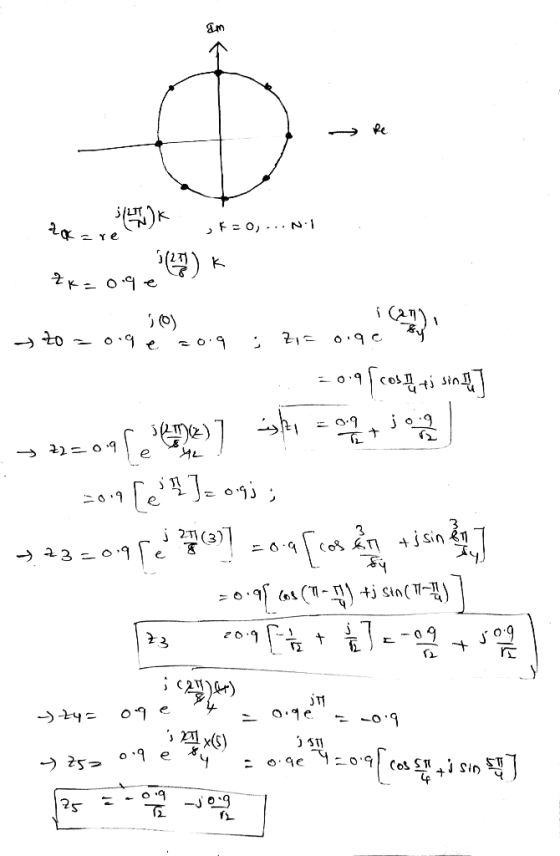

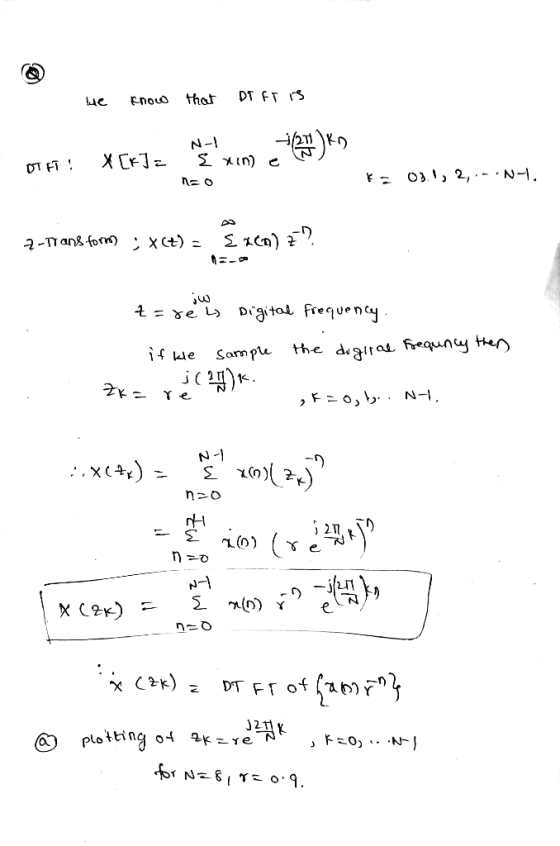

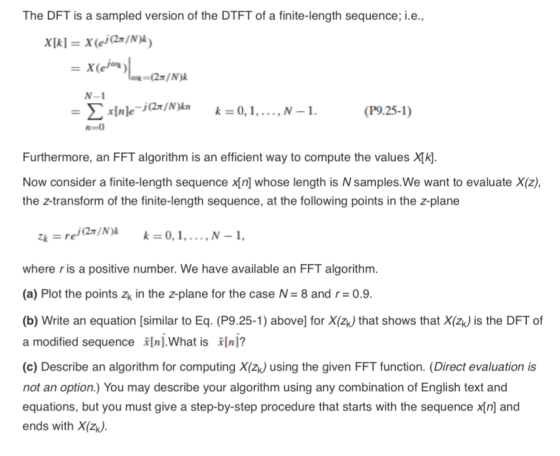

The DFT is a sampled version of the DTFT of a finite-length sequence; i.e., N-1 (P9.25-1) Furthermore, an FFT algorithm is an efficient way to compute the values X Now consider a finite-length sequence xin] whose length is N samples.We want to evaluate X(z) the z-transform of the finite-length sequence, at the following points in the z-plane where ris a positive number. We have available an FFT algorithm (a) Plot the points z in the z-plane for the case N-8...
Let x[n] be infinite-duration sequence with DTFT of 2n X(e'"), Xi[n] is an N-point finite-duratio...
Let x[n] be infinite-duration sequence with DTFT of 2n X(e'"), Xi[n] is an N-point finite-duration sequence whose DFT X,(e N ) was obtained by sampling X(eW) at N equally spaced points on the unit circle. Determine xl[n] in terms of x[n]
Let x[n] be infinite-duration sequence with DTFT of 2n X(e'"), Xi[n] is an N-point finite-duration sequence whose DFT X,(e N ) was obtained by sampling X(eW) at N equally spaced points on the unit circle. Determine xl[n] in terms...
Consider a sequence xln] 2-"uln], with its DTFT given by xlet y[n] be a finite-duration signal of...
Consider a sequence xln] 2-"uln], with its DTFT given by xlet y[n] be a finite-duration signal of length 10. Suppose the 10-point DFT, Y[k], of y[n] is given by 10 equally-spaced samples of X(e). Determine y[n]. Hint: N-point DFT of a sequence w[n] = 2-n (u[n]-u[n-N]) is W [k] = 1-22 1wk
Consider a sequence xln] 2-"uln], with its DTFT given by xlet y[n] be a finite-duration signal of length 10. Suppose the 10-point DFT, Y[k], of y[n] is given...
ASSIGNMENT 2 (C4,_CO2, PO1) 1. Calculate DFT of the following discrete-time sequence, x(n) using DFT technique...
ASSIGNMENT 2 (C4,_CO2, PO1) 1. Calculate DFT of the following discrete-time sequence, x(n) using DFT technique x(n) = {72,-56, 159) (C4, CO2,PO1) 2. Calculate the 8-point DFT of the following discrete-time sequence, x(n) using Decimation In Time Fast Fourier transform (DIT-FFT) algorithm. Show the sketch and label all parameters on a signal flow graph/butterfly diagram structure in your answer. (1-3<ns3 x(n) = 0 elsewhere
5.34 Let xIn],0sns N-1, be a length-N sequence with an N-point DFT XIk],0sksN-1. (a) sa symmetric...
5.34 Let xIn],0sns N-1, be a length-N sequence with an N-point DFT XIk],0sksN-1. (a) sa symmetric sequence satisfying the condition x n] = 지(N 1 n)N] show that X [N/2] 0 for N even. (b) Ifx[n] is a antisymmetric sequence satisfying the condition x[n] = rKN-1-n)N], show that X[0] = 0 (c) If x[n] is a sequence satisfying the condition x[n] =-x[(n + M〉N] with N = 2M, show that X[21] = 0 for I=0, 1, ,M-1
5.34 Let xIn],0sns...
8.32. Considera finite-duration sequence x[n] of length P such that xlnj=Ofor n <0andn> P. We want...
8.32. Considera finite-duration sequence x[n] of length P such that xlnj=Ofor n <0andn> P. We want to compute samples of the Fourier transform at the N equally spaced frequencies 2nk Determine and justify procedures for computing the N samples of the Fourier transform using only one N-point DFT for the following two cases: (a) N > /P (b) N < P
Consider a finite length DT sequence of length N -16 described below. 1, 0<n< 2 Use...
Consider a finite length DT sequence of length N -16 described below. 1, 0<n< 2 Use MATLAB built-in function dftmtx (N), and compute X[k] command and create stem plots for the following: DFT(X[k]. Use subplot (a) x n] vs n; (b) X[k] vs k; (c) angle (X [k) vs k. Label axes of these plots and include title for each of these plots
I will upvote if u will solve What u need? DFT can also be obtained using matrix multiplication. Let X[r] show the transformed values and x[n] show the original signal. Using the analysis equa...
I will upvote if u will solve
What u need?
DFT can also be obtained using matrix multiplication. Let X[r] show the transformed values and x[n] show the original signal. Using the analysis equation: Using matrix multiplication, this operation can be written as x[O X[1 1 e(2m/N) e-K4n/N) x12] [N-1]] e-j(2(N-1)T/N)e-j(4(N-1)m/N) Instead of huilt-in EFT function use matrix multinlication to solve 3th auestion [ 1 e-/(2(N-1)(N-1)T/N)]Le[N-1] DFT is an extension of DTFT in which frequency is discretized to a finite...
The DFT is a sampled version of the DTFT of a finite-length sequence; i.e., N-1 (P9.25-1) Furthermore, an FFT algorithm is an efficient way to compute the values X Now consider a finite-length sequence xin] whose length is N samples.We want to evaluate X(z) the z-transform of the finite-length sequence, at the following points in the z-plane where ris a positive number. We have available an FFT algorithm (a) Plot the points z in the z-plane for the case N-8...
Let x[n] be infinite-duration sequence with DTFT of 2n X(e'"), Xi[n] is an N-point finite-duration sequence whose DFT X,(e N ) was obtained by sampling X(eW) at N equally spaced points on the unit circle. Determine xl[n] in terms of x[n]
Let x[n] be infinite-duration sequence with DTFT of 2n X(e'"), Xi[n] is an N-point finite-duration sequence whose DFT X,(e N ) was obtained by sampling X(eW) at N equally spaced points on the unit circle. Determine xl[n] in terms...
Consider a sequence xln] 2-"uln], with its DTFT given by xlet y[n] be a finite-duration signal of length 10. Suppose the 10-point DFT, Y[k], of y[n] is given by 10 equally-spaced samples of X(e). Determine y[n]. Hint: N-point DFT of a sequence w[n] = 2-n (u[n]-u[n-N]) is W [k] = 1-22 1wk
Consider a sequence xln] 2-"uln], with its DTFT given by xlet y[n] be a finite-duration signal of length 10. Suppose the 10-point DFT, Y[k], of y[n] is given...
ASSIGNMENT 2 (C4,_CO2, PO1) 1. Calculate DFT of the following discrete-time sequence, x(n) using DFT technique x(n) = {72,-56, 159) (C4, CO2,PO1) 2. Calculate the 8-point DFT of the following discrete-time sequence, x(n) using Decimation In Time Fast Fourier transform (DIT-FFT) algorithm. Show the sketch and label all parameters on a signal flow graph/butterfly diagram structure in your answer. (1-3<ns3 x(n) = 0 elsewhere
5.34 Let xIn],0sns N-1, be a length-N sequence with an N-point DFT XIk],0sksN-1. (a) sa symmetric sequence satisfying the condition x n] = 지(N 1 n)N] show that X [N/2] 0 for N even. (b) Ifx[n] is a antisymmetric sequence satisfying the condition x[n] = rKN-1-n)N], show that X[0] = 0 (c) If x[n] is a sequence satisfying the condition x[n] =-x[(n + M〉N] with N = 2M, show that X[21] = 0 for I=0, 1, ,M-1
5.34 Let xIn],0sns...
8.32. Considera finite-duration sequence x[n] of length P such that xlnj=Ofor n <0andn> P. We want to compute samples of the Fourier transform at the N equally spaced frequencies 2nk Determine and justify procedures for computing the N samples of the Fourier transform using only one N-point DFT for the following two cases: (a) N > /P (b) N < P
Consider a finite length DT sequence of length N -16 described below. 1, 0<n< 2 Use MATLAB built-in function dftmtx (N), and compute X[k] command and create stem plots for the following: DFT(X[k]. Use subplot (a) x n] vs n; (b) X[k] vs k; (c) angle (X [k) vs k. Label axes of these plots and include title for each of these plots
I will upvote if u will solve
What u need?
DFT can also be obtained using matrix multiplication. Let X[r] show the transformed values and x[n] show the original signal. Using the analysis equation: Using matrix multiplication, this operation can be written as x[O X[1 1 e(2m/N) e-K4n/N) x12] [N-1]] e-j(2(N-1)T/N)e-j(4(N-1)m/N) Instead of huilt-in EFT function use matrix multinlication to solve 3th auestion [ 1 e-/(2(N-1)(N-1)T/N)]Le[N-1] DFT is an extension of DTFT in which frequency is discretized to a finite...
