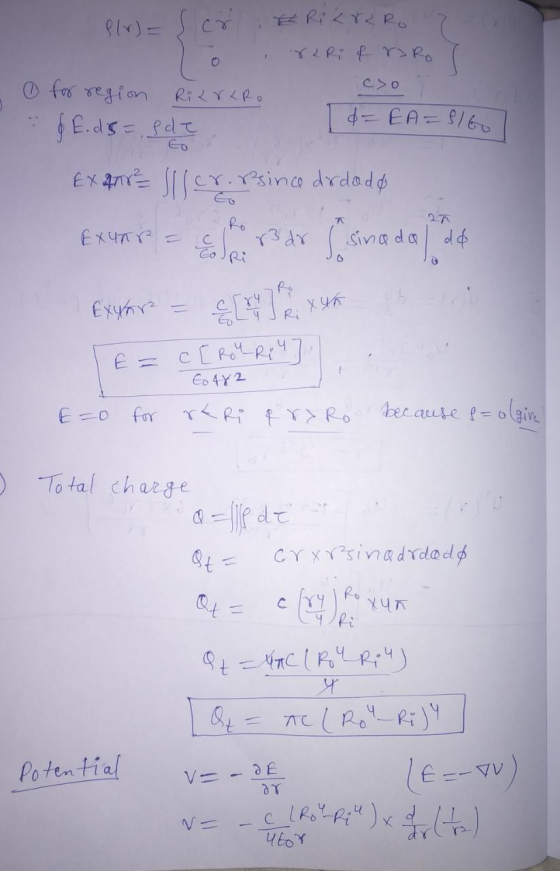

A spherical shell extends from Ri to R0 with p(r) = Cr with C > 0 in the shell but zero for r < Ri and R > R0.

a.) What is the total charge in the shell, Qt?

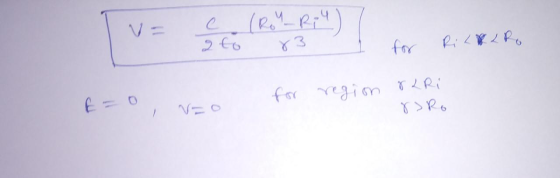

b.) Assuming a point charge with charge -Qt is placed at the center of the shell, what are E and V for all regions of the space?

Thank you!

science physics

Answer 1

Answer #1

Answer 2
