An organization (IP; 131.123.0.0/24) has 5 subnets for finance deptt, HR, admin, technical, and IT, each...

An organization (IP; 131.123.0.0/24) has 5 subnets for finance deptt, HR, admin, technical, and IT, each having 10,15,20,5,and 8 hosts respectively. Design a network addressing criteria that will provide the minimum number of hosts per subnet, and allow enough extra subnets and hosts for 40% growth in all areas. Calculate the custom subnet mask, total number of subnets needed, total number of host addresses for the largest subnet. Show the address range for each subnet.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

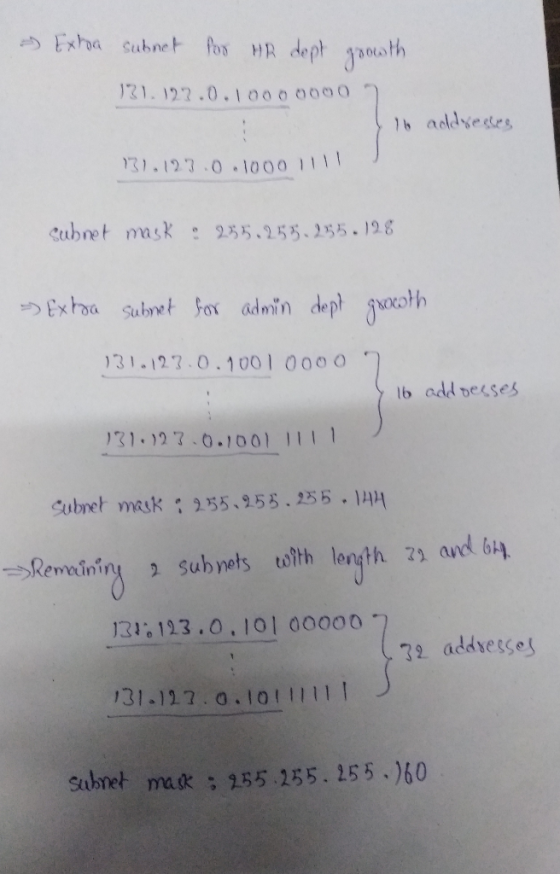

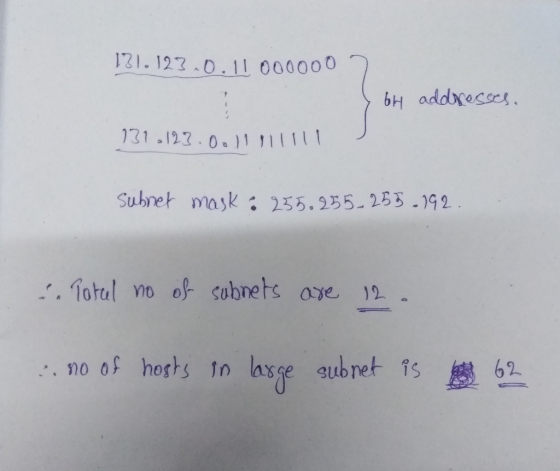

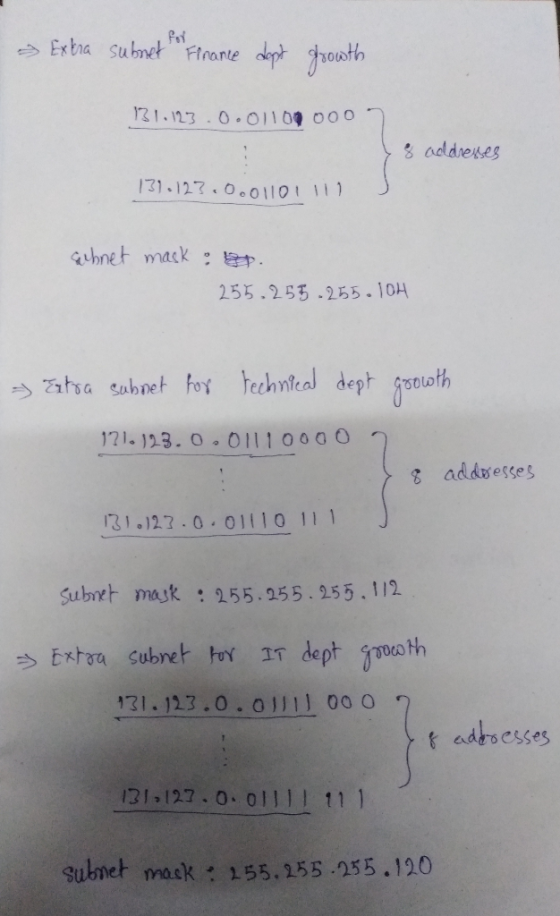

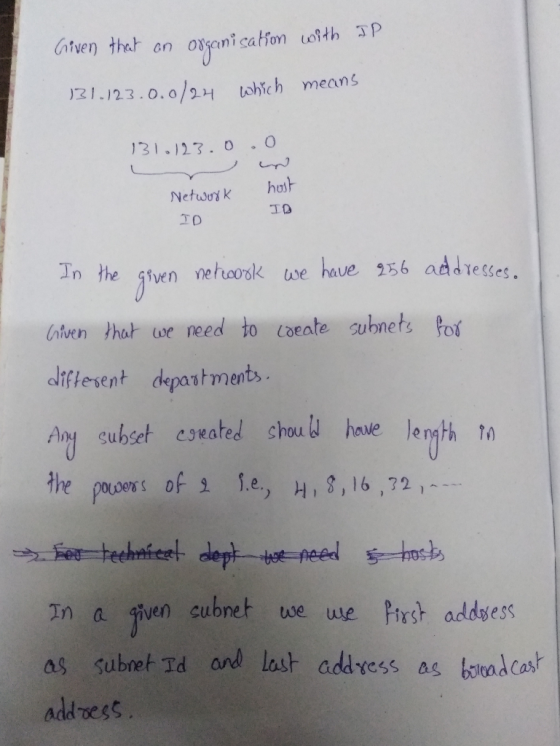

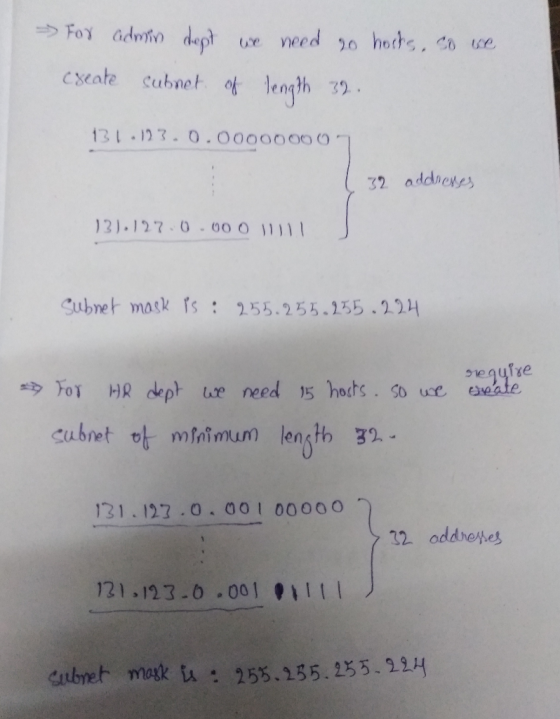

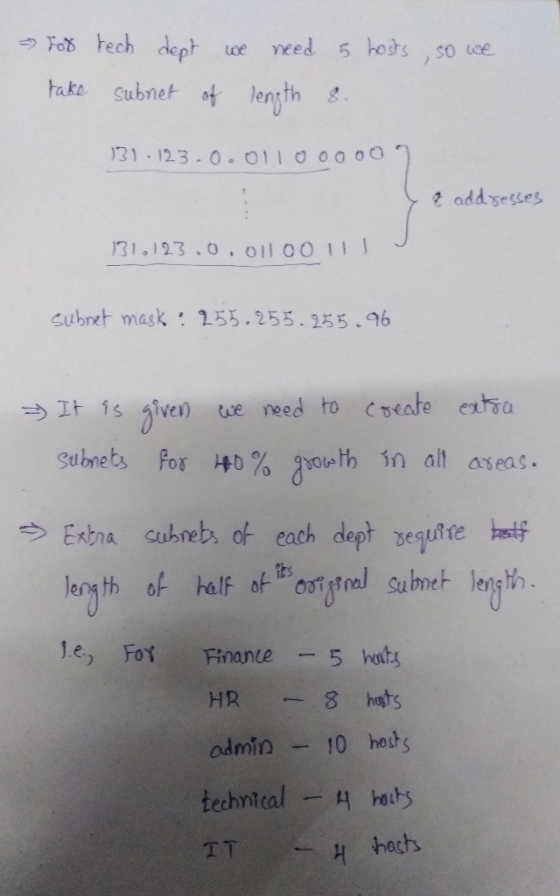

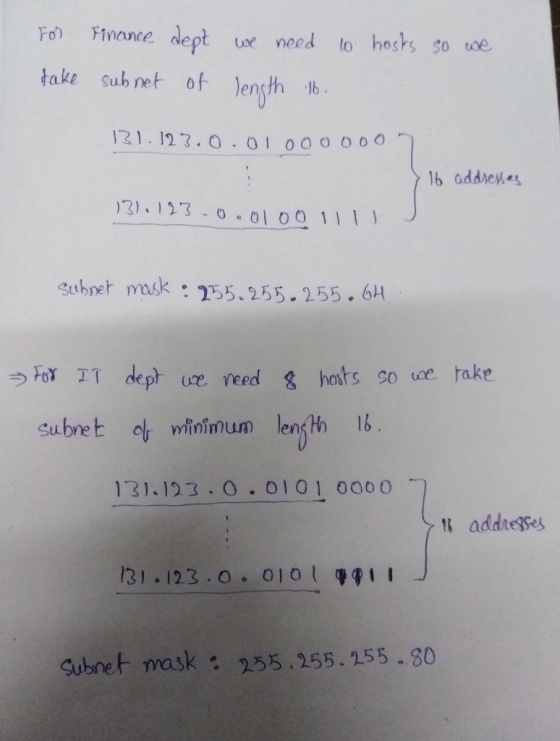

Answer #1


0 0
Add a comment
Answer #1


0 0
Add a comment
