A transformer with turns ratio 8:1, has the resistances of the primary and secondary windings as...

A transformer with turns ratio 8:1, has the resistances of the primary and secondary windings as 0.85 ohms and 0.012 ohm respectively, and the leakage reactances are 4.8 ohms and 0.07 ohms respectively. Determine the voltage to be applied to the primary to obtain current of 150A in the secondary when the secondary terminals are short circuited, Ignore the magnetizing current
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

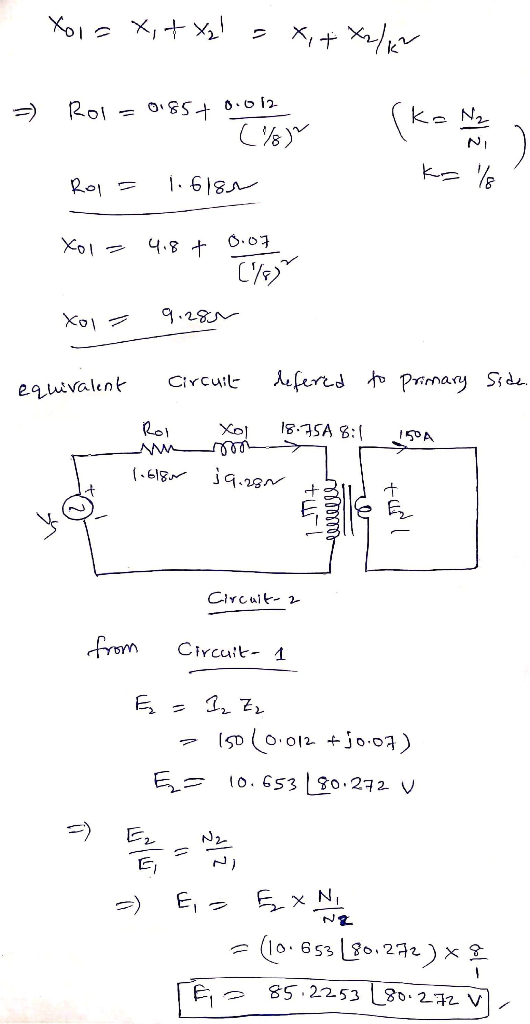

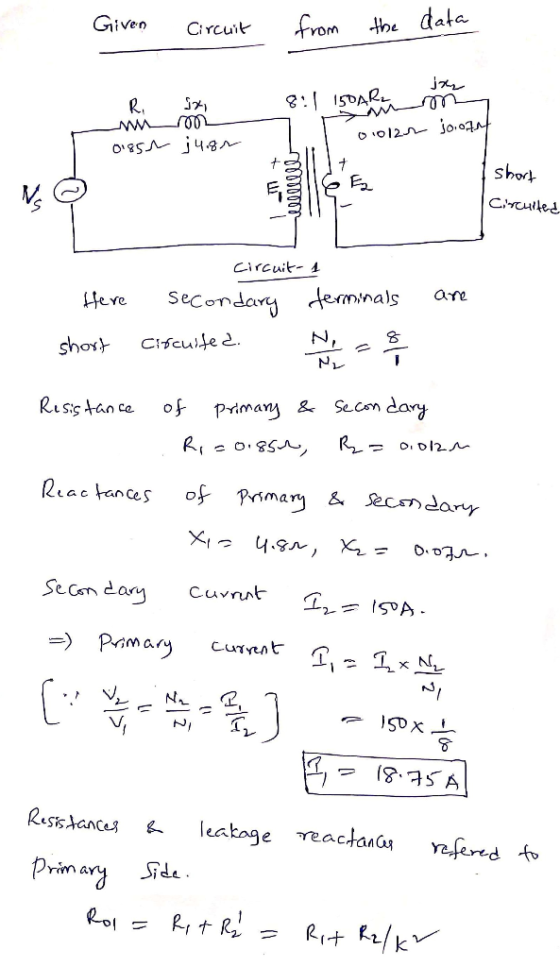

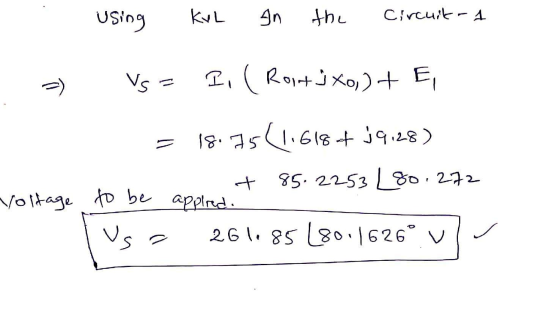

Answer #1

0 0
Add a comment
