A single phase transformer has 2000 turns on the primary winding and 500 turns on the...
A single phase transformer has 2000 turns on the primary winding and 500 turns on the secondary. Winding resistances are ?1 = 2Ω, ?1 = 8Ω, ?2 = 0.125Ω, ?2 = 0.5Ω, ?? = 1122?? 800Ω and ???? = 1000Ω.

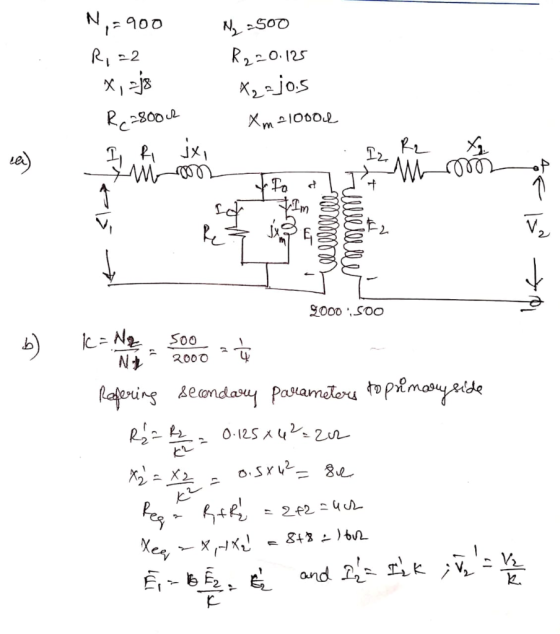

a. Draw the complete circuit for the transformer with the parameters and transformation ratio indicated.
b. Refer the secondary parameters to the primary side and draw the equivalent circuit (Draw the circuit with the core in parallel with the voltage applied to the primary and combine the series impedances).

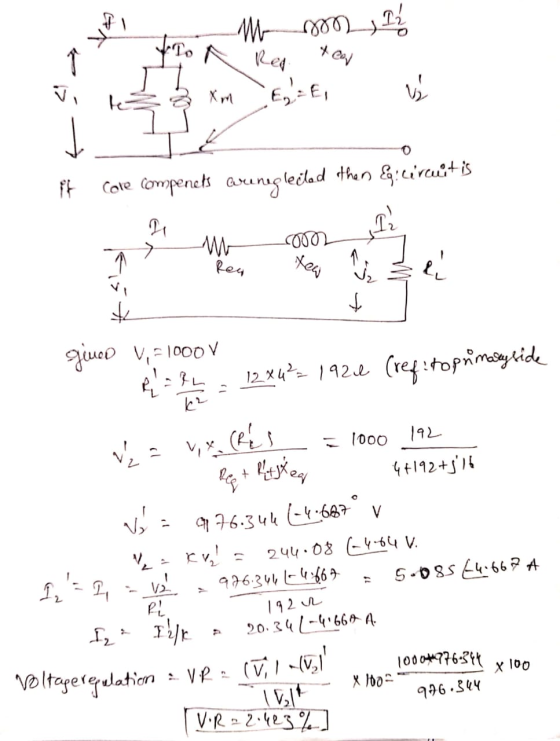

c. If a 12Ω resistor is connected to the secondary windings and
1000V is applied to the primary; neglect the core effect and
calculate ?2′, ?2 , ?1, ?2 and the voltage regulation.
Homework Answers
Add Answer to:
A single phase transformer has 2000 turns on the primary winding
and 500 turns on the...
B. A single-phase transformer has the following parameters. N1/N2 10; Req 12, Xeq 102, X 22W,...
B. A single-phase transformer has the following parameters. N1/N2 10; Req 12, Xeq 102, X 22W, RO 10002, X 0 50002 The rated voltage of the primary winding is 1000V. A load of 0.5 230° is connected across the secondary windings of the transformer. Compute the following a. The load voltage referred to primary V2' and the load voltage V2 c. The currents of the primary and secondary windings d. The voltage regulation e. The efficiency of the transformer
If a lossless transformer has 1000 turns for a primary winding and 100 turns for the...
If a lossless transformer has 1000 turns for a primary winding and 100 turns for the secondary winding, and the voltage at the secondary terminal is 10 volts, what is the voltage at the primary terminal?
An ideal transformer has a primary winding with 100 turns and a secondary winding with 20...
An ideal transformer has a primary winding with 100 turns and a secondary winding with 20 turns. If the primary winding has a voltage drop of 10 V AC, what is the EMF in the secondary coil? A. 100 V AC B. 10 V AC C. 2 V AC D. 20 V AC
1. If 480 volts is applied to the primary winding of a transformer which has 300...
1. If 480 volts is applied to the primary winding of a transformer which has 300 turns in the primary winding and 15 turns in the secondary winding, the secondary voltage will be A. 0.0417 volts. C. 56.8 volts B. 24 volts. D. 9600 volts. 2. A distribution transformer with a grain-orientented steel core is highly efficent because its A. exciting current is sufficiently high. B. flux direction is parallel to the stell-rolling direction C. permeability is increased due to...
Consider a transformer with 125 turns of wire in the primary winding and 1475 turns of...
Consider a transformer with 125 turns of wire in the primary winding and 1475 turns of wire in the secondary winding. The secondary winding is connected across a 1540-Ω resistor. The primary winding is connected to an AC generator which produces 10.5 volts (rms). (a) Find the voltage (rms) across the secondary winding. (b) Find the current (rms) through the resistor. (c) Find the current (rms) through the primary winding.
A transformer with turns ratio 8:1, has the resistances of the primary and secondary windings as...
A transformer with turns ratio 8:1, has the resistances of the primary and secondary windings as 0.85 ohms and 0.012 ohm respectively, and the leakage reactances are 4.8 ohms and 0.07 ohms respectively. Determine the voltage to be applied to the primary to obtain current of 150A in the secondary when the secondary terminals are short circuited, Ignore the magnetizing current
PLEASE SO PART C, THANK YOU WILL RATE. A single-phase transformer with a 5:1 turns ratio...
PLEASE SO PART C, THANK YOU WILL RATE.
A single-phase transformer with a 5:1 turns ratio is connected to a 600 V voltage source on the primary side, and a 5 Ω resistor on the secondary. A current of 22 amps of current is measured to flow through the 5 Ω resistor on the secondary side. The real power flowing into the transformer primary is measured at 2500 W. You can neglect Lm and Rc (the magnetizing inductance and core...
2. The secondary winding of a transformer has a terminal voltage of (t)=169.7 sin3141 V. The...
2. The secondary winding of a transformer has a terminal voltage of (t)=169.7 sin3141 V. The turn ratio of the transformer is 40:200. The impedances of this transformer referred to the primary side are: Rey-0.15 2. Re-50 Q2, X-0.25 S2, X-25 . If the secondary current of the transformer is i,(0=14.14 sin(3141-53.139) A, (a) What is the primary current of this transformer? (10%) (b) What are its voltage regulation and efficiency? (10%)
The ratings of a three-phase, three-winding transformer are Y connected, 66 kV, 20 MVA Primary (1):...
The ratings of a three-phase, three-winding transformer are Y connected, 66 kV, 20 MVA Primary (1): Secondary (2):Y connected, 13.2 kV, 15 MVA Tertiary (3): A connected, 2.3 kV, 5 MVA Neglecting winding resistances and exciting current, the per-unit leakage reactances are: X12 0.08 on a 20-MVA, 66-kV base X13 0.10 on a 20-MVA, 66-kV base X23 0.09 on a 15-MVA, 13.2-kV base (a) Determine the per-unit reactances Xi, X2, X3 of the equivalent circuit on a 20- MVA, 66-kV...
. An ideal transformer has 600 turns on its primary side and 100 turns on its...
. An ideal transformer has 600 turns on its primary side and 100 turns on its secondary side. The primary voltage is 1000 V AC. a. Is this transformer considered to be Step-Up or Step-Down? b. What will the secondary voltage be with this configuration? c. What is the secondary current if the primary current is 100 A? d. The primary windings are reconnected to a 1000 V battery (DC) for a long time. What is the secondary voltage?
B. A single-phase transformer has the following parameters. N1/N2 10; Req 12, Xeq 102, X 22W, RO 10002, X 0 50002 The rated voltage of the primary winding is 1000V. A load of 0.5 230° is connected across the secondary windings of the transformer. Compute the following a. The load voltage referred to primary V2' and the load voltage V2 c. The currents of the primary and secondary windings d. The voltage regulation e. The efficiency of the transformer
PLEASE SO PART C, THANK YOU WILL RATE.
A single-phase transformer with a 5:1 turns ratio is connected to a 600 V voltage source on the primary side, and a 5 Ω resistor on the secondary. A current of 22 amps of current is measured to flow through the 5 Ω resistor on the secondary side. The real power flowing into the transformer primary is measured at 2500 W. You can neglect Lm and Rc (the magnetizing inductance and core...
2. The secondary winding of a transformer has a terminal voltage of (t)=169.7 sin3141 V. The turn ratio of the transformer is 40:200. The impedances of this transformer referred to the primary side are: Rey-0.15 2. Re-50 Q2, X-0.25 S2, X-25 . If the secondary current of the transformer is i,(0=14.14 sin(3141-53.139) A, (a) What is the primary current of this transformer? (10%) (b) What are its voltage regulation and efficiency? (10%)
The ratings of a three-phase, three-winding transformer are Y connected, 66 kV, 20 MVA Primary (1): Secondary (2):Y connected, 13.2 kV, 15 MVA Tertiary (3): A connected, 2.3 kV, 5 MVA Neglecting winding resistances and exciting current, the per-unit leakage reactances are: X12 0.08 on a 20-MVA, 66-kV base X13 0.10 on a 20-MVA, 66-kV base X23 0.09 on a 15-MVA, 13.2-kV base (a) Determine the per-unit reactances Xi, X2, X3 of the equivalent circuit on a 20- MVA, 66-kV...
. An ideal transformer has 600 turns on its primary side and 100 turns on its secondary side. The primary voltage is 1000 V AC. a. Is this transformer considered to be Step-Up or Step-Down? b. What will the secondary voltage be with this configuration? c. What is the secondary current if the primary current is 100 A? d. The primary windings are reconnected to a 1000 V battery (DC) for a long time. What is the secondary voltage?
