A point charge of 8x10-9 C is whirled around at the end of a cord. If...
A point charge of 8x10-9 C is whirled around at the end of a cord. If the frequency of rotation is 100pi rad/s, what is the average current around the circular path? (Answer is 4x10-7A)
Homework Answers
Add Answer to:
A point charge of 8x10-9 C is whirled around at the
end of a cord. If...

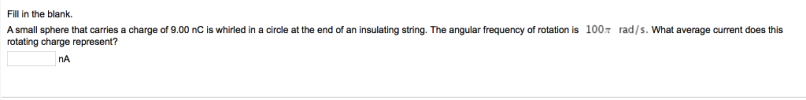

Fill in the blank. Asmall sphere that carries a charge of 9.00 nC is whirled in...
Fill in the blank. Asmall sphere that carries a charge of 9.00 nC is whirled in a circle at the end of an insulating string. The angular frequency of rotation is rotating charge represent? 007 ra s. at average cu ent does this nA
A ball on the end of a string is whirled around in a horizontal circle of...
A ball on the end of a string is whirled around in a horizontal circle of radius 0.340 m. The plane of the circle is 1.20 m above the ground. The string breaks and the ball lands 2.50 m (horizontally) away from the point on the ground directly beneath the ball's location when the string breaks. Find the radial acceleration of the ball during its circular motion. Magnitude m/s Direction
A ball is attached to a horizontal cord of length L=1.01 m whose other end is...
A ball is attached to a horizontal cord of length L=1.01 m whose
other end is fixed, as shown.
If the ball is released, what will be its speed at the lowest point
of its path?
Correct, computer gets: 4.45 m/s
B) A peg is located a distance h directly below the point of
attachment of the cord. If h = 0.740L, what will be the speed of
the ball when it reaches the top of its circular path about...
Conservation problem A ball is attached to a horizontal cord of length L whose other end...
Conservation problem
A ball is attached to a horizontal cord of length L whose other end is fixed (see picture), (a) If the ball is released, what will be its speed at the lowest point of its path? (b) A peg is located a distance h directly below the point of attachment of the cord. If h = 0.7 L, what will be the speed of the ball when it reaches the top of it circular path about the peg?...
A mass m hangs on the end of a cord around a pulley of radius a and moment of inertia I, rotating...
A mass m hangs on the end of a cord around a pulley of radius a
and moment of inertia I, rotating
with an angular velocity w, as shown in the figure below. The rim
of the pulley is attached to a
spring (with constant k). Assume small oscillations so that the
spring remains essentially
horizontal and neglect friction so that the conservation of energy
of the system yields:
1/2mv^2 +1/2Iw^2+1/2kx^2-mgx=C,
where w=v/a, C=const, x+displacement from equilibrium
Find the natural...
The left-hand end of a long horizontal stretched cord oscillates transversely in SHM with frequen...
The left-hand end of a long horizontal stretched cord oscillates transversely in SHM with frequency 270 Hz and amplitude 2.6 cm . The cord is under a tension of 100 N and has a linear density 0.07 kg/m . At t=0, the end of the cord has an upward displacement of 1.8 cm and is falling. Consider the point x = 0.500 m on the cord. Part A Determine the maximum velocity of this point. Part B Determine its maximum...
Constant:s VPart A A point charge of mass 0.235 kg, and net charge +0.355 C, hangs...
Constant:s VPart A A point charge of mass 0.235 kg, and net charge +0.355 C, hangs at rest at the end of an insulating cord above a large sheet of charge. The horizontal sheet of fixed uniform charge creates a uniform vertical electric field in the vicinity of the point charge. The tension in the cord is measured to be 4.80 N Determine the direction of the electric field due to the sheet of charge (see (Figure 1)) upward downward...
A solenoid passes through the x-y plane. A charge of +9 Coulombs with a mass of...
A solenoid passes through the x-y plane. A charge of +9 Coulombs with a mass of 3 x 10-7 kg moving at 9 m/s (in the x-y plane) is placed in the solenoid. Due to the magnetic field produced by the solenoid, the charge moves counter-clockwise in a circle at a frequency of 28 Hz. The charge is removed and a circular wire wound 2 times with a radius of 0.6 meters is placed in the solenoid. If the total...
electromagnetic 9) Lorentz Force and the Cyclotron Frequency: (15 pts) A point charge q has an...
electromagnetic
9) Lorentz Force and the Cyclotron Frequency: (15 pts) A point charge q has an initial velocity v = v. and is incident on a constant magnetic field B = B.2. v = v. B = 3,2 (a) Determine the magnitude and direction of the Lorentz force acting on the charge. Express your answer as a vector. (b) Derive the cyclotron frequency for a charge in circular motion in a constant magnetic field with incident velocity perpendicular to the...
Question 25 (1 point) Protons move clockwise around a circular path of radius 27 cm in...
Question 25 (1 point) Protons move clockwise around a circular path of radius 27 cm in a magnetic field of magnitude B = 0.25 T. Proton has a charge 1.6 x 10^-19 C. What is the magnitude of the momentum of the protons and which direction is the magnetic field pointing? O 0.54 x 10^-20 kg-m/s, out of the plane of the circle Onone of these 1.1 x 10^-20 kg-m/s, into the plane of the circle 0.54 x 10^-20 kg-m/s,...
Fill in the blank. Asmall sphere that carries a charge of 9.00 nC is whirled in a circle at the end of an insulating string. The angular frequency of rotation is rotating charge represent? 007 ra s. at average cu ent does this nA
A ball on the end of a string is whirled around in a horizontal circle of radius 0.340 m. The plane of the circle is 1.20 m above the ground. The string breaks and the ball lands 2.50 m (horizontally) away from the point on the ground directly beneath the ball's location when the string breaks. Find the radial acceleration of the ball during its circular motion. Magnitude m/s Direction
A ball is attached to a horizontal cord of length L=1.01 m whose
other end is fixed, as shown.
If the ball is released, what will be its speed at the lowest point
of its path?
Correct, computer gets: 4.45 m/s
B) A peg is located a distance h directly below the point of
attachment of the cord. If h = 0.740L, what will be the speed of
the ball when it reaches the top of its circular path about...
Conservation problem
A ball is attached to a horizontal cord of length L whose other end is fixed (see picture), (a) If the ball is released, what will be its speed at the lowest point of its path? (b) A peg is located a distance h directly below the point of attachment of the cord. If h = 0.7 L, what will be the speed of the ball when it reaches the top of it circular path about the peg?...
A mass m hangs on the end of a cord around a pulley of radius a
and moment of inertia I, rotating
with an angular velocity w, as shown in the figure below. The rim
of the pulley is attached to a
spring (with constant k). Assume small oscillations so that the
spring remains essentially
horizontal and neglect friction so that the conservation of energy
of the system yields:
1/2mv^2 +1/2Iw^2+1/2kx^2-mgx=C,
where w=v/a, C=const, x+displacement from equilibrium
Find the natural...
Constant:s VPart A A point charge of mass 0.235 kg, and net charge +0.355 C, hangs at rest at the end of an insulating cord above a large sheet of charge. The horizontal sheet of fixed uniform charge creates a uniform vertical electric field in the vicinity of the point charge. The tension in the cord is measured to be 4.80 N Determine the direction of the electric field due to the sheet of charge (see (Figure 1)) upward downward...
electromagnetic
9) Lorentz Force and the Cyclotron Frequency: (15 pts) A point charge q has an initial velocity v = v. and is incident on a constant magnetic field B = B.2. v = v. B = 3,2 (a) Determine the magnitude and direction of the Lorentz force acting on the charge. Express your answer as a vector. (b) Derive the cyclotron frequency for a charge in circular motion in a constant magnetic field with incident velocity perpendicular to the...
Question 25 (1 point) Protons move clockwise around a circular path of radius 27 cm in a magnetic field of magnitude B = 0.25 T. Proton has a charge 1.6 x 10^-19 C. What is the magnitude of the momentum of the protons and which direction is the magnetic field pointing? O 0.54 x 10^-20 kg-m/s, out of the plane of the circle Onone of these 1.1 x 10^-20 kg-m/s, into the plane of the circle 0.54 x 10^-20 kg-m/s,...
