A solenoid passes through the x-y plane. A charge of +9 Coulombs with a mass of...

A solenoid passes through the x-y plane. A charge of +9 Coulombs with a mass of 3 x 10-7 kg moving at 9 m/s (in the x-y plane) is placed in the solenoid. Due to the magnetic field produced by the solenoid, the charge moves counter-clockwise in a circle at a frequency of 28 Hz. The charge is removed and a circular wire wound 2 times with a radius of 0.6 meters is placed in the solenoid. If the total magnetic field at the center of the circular is zero, what is the amount and direction of the current in the circular wire in amps? Indicate clockwise by a negative sign (negative answer) and don't enter a sign for counter-clockwise.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

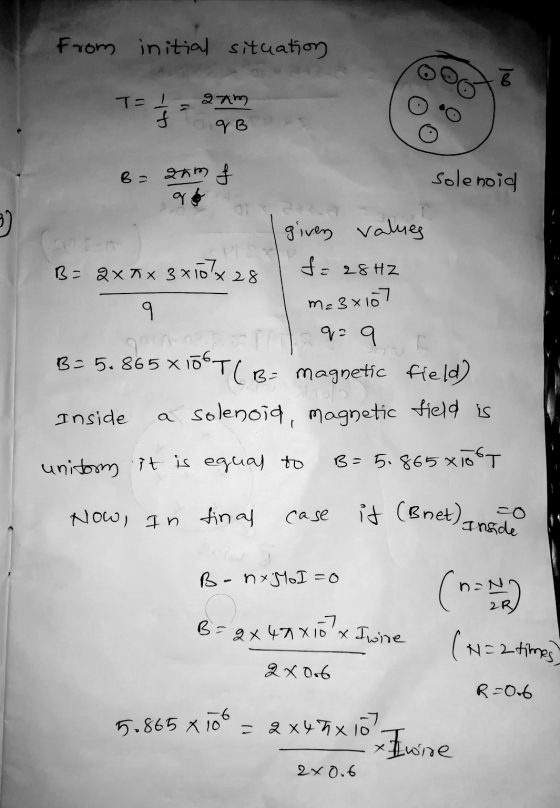

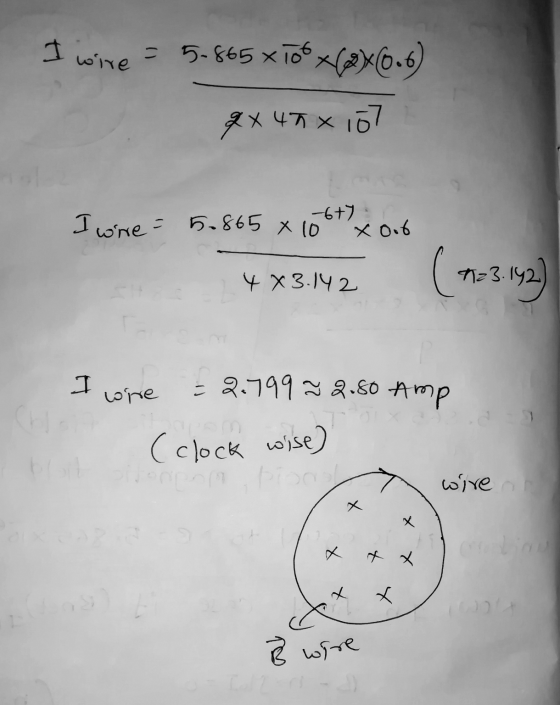

Answer #1

0 0
