Chapter 05, Problem 30 Partially correct answer. Your answer is partially correct. Try again. The drawing...

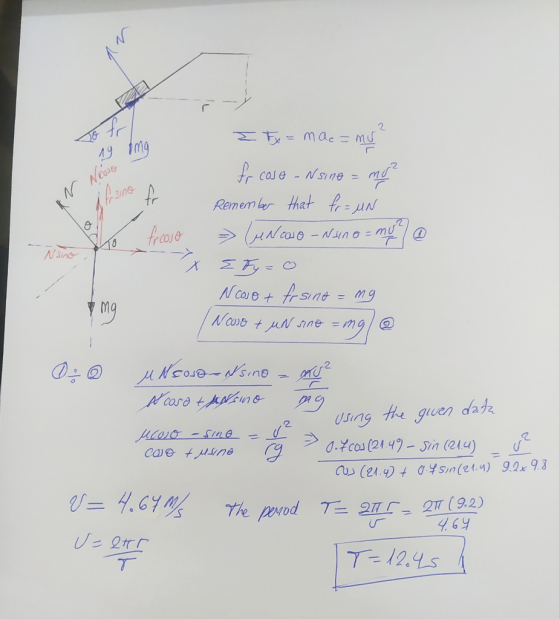

Chapter 05, Problem 30 Partially correct answer. Your answer is partially correct. Try again. The drawing shows a baggage carousel at an airport. Your suitcase has not slid all the way down the slope and is going around at a constant speed on a circle ((r = 9.20 m) as the carousel turns. The coefficient of static friction between the suitcase and the carousel is 0.700, and the angle θ in the drawing is 21.4°. How much time is required for your suitcase to go around once. Assume that the static friction between the suitcase and the carousel is at its maximum.
Homework Answers
Add Answer to:
Chapter 05, Problem 30 Partially correct answer. Your answer is
partially correct. Try again. The drawing...
Chapter 12, Problem 12.13 Your answer is partially correct. Try again. Choose the correct drawing of...
Chapter 12, Problem 12.13 Your answer is partially correct. Try again. Choose the correct drawing of the Bode plot for the network function 16ίώ + 1 The magnitude plot has a slope of I-20 dB/decade from us 0 to ω.10:06 rad/s, a slope of dB/decade from ool to ω2-1120.05 rad/s, and a slope of 2 20 dB/decade 70 from ω2 to co. The value of the magnitude asymptotes between ω1 and ω2 is dB. Click if you would like to...
Chapter 05, Problem 31 GO Your answer is partially correct. Try again. Two satellites are in...
Chapter 05, Problem 31 GO Your answer is partially correct. Try again. Two satellites are in circular orbits around the earth. The orbit for satellite A is at a height of 361 km above the earth's surface, while that for satellite B is at a height of 780 km. And the orbital speed for (a) satellite A and (b) satelite (a) VA (1) Ve Click If you would like to Show Work for this questioni Modi Show Work
Chapter 01, Problem 05 Your answer is partially correct. Try again. Given the quantities a 4.2...
Chapter 01, Problem 05 Your answer is partially correct. Try again. Given the quantities a 4.2 m, b 8.0 s, c 92 m/s, what is the value of the quantity 2 cb Number the tolerance is +12% o Units &ma2/s
Chapter 19, Problem 67 Your answer is partially correct. Try again. The drawing shows a parallel...
Chapter 19, Problem 67 Your answer is partially correct. Try again. The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled with a material that has a dielectric constant K1 2.7. The other half is filled with a material that has a dielectric constant K2-4.6. The area of each plate is 1.2cm2, and the plate separation is 0.37 mm. Find the capacitance Number Units LUF the tolerance is +/-2%
Chapter 21, Problem 49 Your answer is partially correct. Try again. The rectangular loop in the...
Chapter 21, Problem 49 Your answer is partially correct. Try again. The rectangular loop in the drawing consists of 75 turns and carries a current of I 5.4 A. A 2.5-T magnetic field is directed along the +y axis. The loop is free to rotate about the z axis. (a) Determine the magnitude of the net torque exerted on the loop and (b) state whether the 35° angle will increase or decrease turns 0.70m (a) NumberT[354.4 Units T N-m (b)...
Chapter 02, Problem 45 Your answer is partially correct. Try again. The drawing shows a device...
Chapter 02, Problem 45 Your answer is partially correct. Try again. The drawing shows a device that you can make with a piece of cardboard, which can be used to measure a person's reaction time. Hold the card at the top and suddenly drop it. Ask a friend to try to catch the card between his or her thumb and index finger. Initially, your friend's fingers must be level with the asterisks at the bottom. By noting where your riend...
Chapter 27, Problem 023 Partially correct answer. Your answer is partially correct. Try again. In the...
Chapter 27, Problem 023
Partially correct answer. Your answer is partially correct. Try
again. In the figure R1 = 130 Ω, R2 = 50 Ω, and the ideal batteries
have emfs ε1 = 6.0 V, ε2 = 5.0 V, and ε3 = 4.0 V. Find (a) the
current in R1, (b) the current in R2, and (c) the potential
difference between points a and b.
R2 8 R w
PRINTER VERSTONBACK Chapter 18, Problem 34 GO Your answer is partially correct. Try again. The drawing...
PRINTER VERSTONBACK Chapter 18, Problem 34 GO Your answer is partially correct. Try again. The drawing shows two situations in which charges are placed on the x and y axes. They are all located at the same distance of 7.20 cm from the origin O. For each of the situations in the drawing, determine the magnitude of the net electric field at the origin. -5.0 AC 1.0rC +2.0prC 3.0C 4.0 -1.0AC 0 6.0rC 0 (a)E1.2E7 N/C N/C (b)12E7 Click if...
Chapter 18, Problem 20 Your answer is partially correct. Try again. The drawing shows an equilateral...
Chapter 18, Problem 20 Your answer is partially correct. Try again. The drawing shows an equilateral triangle, each side of which has a length of 2.29 cm. Pcint charges are fixed to each corner, as shown. The 4.00 c charge experiences a net force due to the charges and B This net force points vertically downward and has a magnitude of 703 N. Determine (a) charge gA, (b) charge +4.00 C (a) Number T5.918e-6 (b) Number UnitśTc SHOW HINT SHOW...
Chapter 12, Problem 12.13 Your answer is partially correct. Try again. Choose the correct drawing of the Bode plot for the network function 16ίώ + 1 The magnitude plot has a slope of I-20 dB/decade from us 0 to ω.10:06 rad/s, a slope of dB/decade from ool to ω2-1120.05 rad/s, and a slope of 2 20 dB/decade 70 from ω2 to co. The value of the magnitude asymptotes between ω1 and ω2 is dB. Click if you would like to...
Chapter 05, Problem 31 GO Your answer is partially correct. Try again. Two satellites are in circular orbits around the earth. The orbit for satellite A is at a height of 361 km above the earth's surface, while that for satellite B is at a height of 780 km. And the orbital speed for (a) satellite A and (b) satelite (a) VA (1) Ve Click If you would like to Show Work for this questioni Modi Show Work
Chapter 01, Problem 05 Your answer is partially correct. Try again. Given the quantities a 4.2 m, b 8.0 s, c 92 m/s, what is the value of the quantity 2 cb Number the tolerance is +12% o Units &ma2/s
Chapter 19, Problem 67 Your answer is partially correct. Try again. The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled with a material that has a dielectric constant K1 2.7. The other half is filled with a material that has a dielectric constant K2-4.6. The area of each plate is 1.2cm2, and the plate separation is 0.37 mm. Find the capacitance Number Units LUF the tolerance is +/-2%
Chapter 21, Problem 49 Your answer is partially correct. Try again. The rectangular loop in the drawing consists of 75 turns and carries a current of I 5.4 A. A 2.5-T magnetic field is directed along the +y axis. The loop is free to rotate about the z axis. (a) Determine the magnitude of the net torque exerted on the loop and (b) state whether the 35° angle will increase or decrease turns 0.70m (a) NumberT[354.4 Units T N-m (b)...
Chapter 02, Problem 45 Your answer is partially correct. Try again. The drawing shows a device that you can make with a piece of cardboard, which can be used to measure a person's reaction time. Hold the card at the top and suddenly drop it. Ask a friend to try to catch the card between his or her thumb and index finger. Initially, your friend's fingers must be level with the asterisks at the bottom. By noting where your riend...
Chapter 27, Problem 023
Partially correct answer. Your answer is partially correct. Try
again. In the figure R1 = 130 Ω, R2 = 50 Ω, and the ideal batteries
have emfs ε1 = 6.0 V, ε2 = 5.0 V, and ε3 = 4.0 V. Find (a) the
current in R1, (b) the current in R2, and (c) the potential
difference between points a and b.
R2 8 R w
PRINTER VERSTONBACK Chapter 18, Problem 34 GO Your answer is partially correct. Try again. The drawing shows two situations in which charges are placed on the x and y axes. They are all located at the same distance of 7.20 cm from the origin O. For each of the situations in the drawing, determine the magnitude of the net electric field at the origin. -5.0 AC 1.0rC +2.0prC 3.0C 4.0 -1.0AC 0 6.0rC 0 (a)E1.2E7 N/C N/C (b)12E7 Click if...
Chapter 18, Problem 20 Your answer is partially correct. Try again. The drawing shows an equilateral triangle, each side of which has a length of 2.29 cm. Pcint charges are fixed to each corner, as shown. The 4.00 c charge experiences a net force due to the charges and B This net force points vertically downward and has a magnitude of 703 N. Determine (a) charge gA, (b) charge +4.00 C (a) Number T5.918e-6 (b) Number UnitśTc SHOW HINT SHOW...
