Homework Answers
Net capacitance = (k1 * e0 * A / 2d) + (k2 * e0 * A / 2d)
= 8.85 * 10-12 * 1.2 * 10-4 (2.7 + 4.6) / (2 * 0.37 * 10-3)
Capacitance = 1.05 * 10-11 F
Add Answer to:

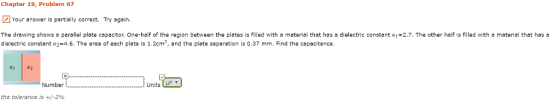

Chapter 19, Problem 67 Your answer is partially correct. Try again. The drawing shows a parallel...
Your answer is partially correct. Try again. nt The figure shows a parallel-plate capacitor with a...
Your answer is partially correct. Try again. nt The figure shows a parallel-plate capacitor with a plate area A = 4.44 cm2 and plate separation d= 6.67 mm. The left half of the gap is filled with material of dielectric constant Ki 3.50; the right half is filled with material of dielectric constant K2 = 10.8. What is the capacitance? A/2 -A/2 Number 7,79e-13 Units TF em em the tolerance is +/-2 % Click if you would like to Show...
Batter+ Chapter 25, Problem 050 Your answer is partially c Try again. | The figure shows...
Batter+ Chapter 25, Problem 050 Your answer is partially c Try again. | The figure shows a parallel-plate capacitor of plate area A 10.8 cm 2 and plate separation 2d= 7.46 mm. The left half of the gap is filled with material of dielectric constant K1 26.8; the top of the right half is filled with material of dielectric constant k2 - 46.6;, the bottom of the right half is filled with material of dielectric constant K3 58.9. What is...
The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled...
The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled with a material that has a dielectric constant κ1=2.4. The other half is filled with a material that has a dielectric constant κ2=4.4. The area of each plate is 1.2cm2, and the plate separation is 0.19 mm. Find the capacitance.
Chapter 25, Problem 050 The figure shows a parallel-plate capacitor of plate area A 11.9 cm2...
Chapter 25, Problem 050 The figure shows a parallel-plate capacitor of plate area A 11.9 cm2 and plate separation 2d- 7.20 mm. The left half of the gap is filled with material of dielectric constant K1 = 25.2; the top of the right half is filled with material of dielectric constant K2 = 46.7; the bottom of the right half is filled with material of dielectric constant K3 - 58.9. What is the capacitance? A/2 A/2 3 Number Units the...
pport 4 Your answer is partially correct. The figure shows a parallel-plate capacitor of plate area...
pport 4 Your answer is partially correct. The figure shows a parallel-plate capacitor of plate area A = 10.6 cm² and plate separation 2d=6.75 mm. The left half of the gap is filled with material of dielectric constant Ky = 23.2; the top of the right half is filled with material of dielectric constant Ky = 41.8; the bottom of the right half is filled with material of dielectric constant K3 = 57.9. What is the capacitance? A/2 -A/2 KI...
The figure shows a parallel-plate capacitor of plate area A 11.8 cm* and plate separation 2d-...
The figure shows a parallel-plate capacitor of plate area A 11.8 cm* and plate separation 2d- 6.85 mm. The left half of the gap is filled with material of dielectric constant K1 -21.5; the top of the right half is filled with material of dielectric constant K2-40.0; the bottom of the right half is filled with material of dielectric constant K3 58.6. What is the capacitance? A/2 A/2 2d K1 Number Units the tolerance is +/-5%
the figure shows a parallel-plate capacitor with a plate area a and plate separation d. the...
the figure shows a parallel-plate capacitor with a plate area a and plate separation d. the left half of the gap is filled with material of dielectric constant k1; the right half is filled with material of dielectric constant k2. what is the capacitance of the capacitor? express your answer in terms of the variables given and ε0.
Question 10 The figure shows a parallel-plate capacitor of plate area A - 10.2 cm2 and...
Question 10 The figure shows a parallel-plate capacitor of plate area A - 10.2 cm2 and plate separation 2d- 7.10 mm. The left half of the gap is filled with material of dielectric constant K1- 26.8; the top of the right half is filled with material of dielectric constant K2 41.1; the bottom of the right half is filled with material of dielectric constant K3 -59.7. What is the capacitance? A/2 「A/2 K2 2d Number Units
upper plate (area A) K2 d Imagine a parallel plate capacitor made from two square plates...
upper plate (area A) K2 d Imagine a parallel plate capacitor made from two square plates of area A that are separated by a distance 2d. One half of the volume between the plates is filled with a dielectric material with a dielectric constant K1; the other half is filled with two equal, stacked layers of dielectric materials with constants K2 and K3, as shown. Find the capacitance of this capacitor. 2d K1 K3 d bottom plate (area A)
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric...
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric material, as shown in figure (18.46) The dielectric constant of one slab is κι and the dielectric constant of the other slab is K2. The separation between the plates is d, and each slab fills half of the space between the plates of the capacitor. Determine the capacitance of this capacitor if the area of the two plates is A 2 Figure 18.46: Problem7
Your answer is partially correct. Try again. nt The figure shows a parallel-plate capacitor with a plate area A = 4.44 cm2 and plate separation d= 6.67 mm. The left half of the gap is filled with material of dielectric constant Ki 3.50; the right half is filled with material of dielectric constant K2 = 10.8. What is the capacitance? A/2 -A/2 Number 7,79e-13 Units TF em em the tolerance is +/-2 % Click if you would like to Show...
Batter+ Chapter 25, Problem 050 Your answer is partially c Try again. | The figure shows a parallel-plate capacitor of plate area A 10.8 cm 2 and plate separation 2d= 7.46 mm. The left half of the gap is filled with material of dielectric constant K1 26.8; the top of the right half is filled with material of dielectric constant k2 - 46.6;, the bottom of the right half is filled with material of dielectric constant K3 58.9. What is...
Chapter 25, Problem 050 The figure shows a parallel-plate capacitor of plate area A 11.9 cm2 and plate separation 2d- 7.20 mm. The left half of the gap is filled with material of dielectric constant K1 = 25.2; the top of the right half is filled with material of dielectric constant K2 = 46.7; the bottom of the right half is filled with material of dielectric constant K3 - 58.9. What is the capacitance? A/2 A/2 3 Number Units the...
pport 4 Your answer is partially correct. The figure shows a parallel-plate capacitor of plate area A = 10.6 cm² and plate separation 2d=6.75 mm. The left half of the gap is filled with material of dielectric constant Ky = 23.2; the top of the right half is filled with material of dielectric constant Ky = 41.8; the bottom of the right half is filled with material of dielectric constant K3 = 57.9. What is the capacitance? A/2 -A/2 KI...
The figure shows a parallel-plate capacitor of plate area A 11.8 cm* and plate separation 2d- 6.85 mm. The left half of the gap is filled with material of dielectric constant K1 -21.5; the top of the right half is filled with material of dielectric constant K2-40.0; the bottom of the right half is filled with material of dielectric constant K3 58.6. What is the capacitance? A/2 A/2 2d K1 Number Units the tolerance is +/-5%
Question 10 The figure shows a parallel-plate capacitor of plate area A - 10.2 cm2 and plate separation 2d- 7.10 mm. The left half of the gap is filled with material of dielectric constant K1- 26.8; the top of the right half is filled with material of dielectric constant K2 41.1; the bottom of the right half is filled with material of dielectric constant K3 -59.7. What is the capacitance? A/2 「A/2 K2 2d Number Units
upper plate (area A) K2 d Imagine a parallel plate capacitor made from two square plates of area A that are separated by a distance 2d. One half of the volume between the plates is filled with a dielectric material with a dielectric constant K1; the other half is filled with two equal, stacked layers of dielectric materials with constants K2 and K3, as shown. Find the capacitance of this capacitor. 2d K1 K3 d bottom plate (area A)
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric material, as shown in figure (18.46) The dielectric constant of one slab is κι and the dielectric constant of the other slab is K2. The separation between the plates is d, and each slab fills half of the space between the plates of the capacitor. Determine the capacitance of this capacitor if the area of the two plates is A 2 Figure 18.46: Problem7
