The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled...

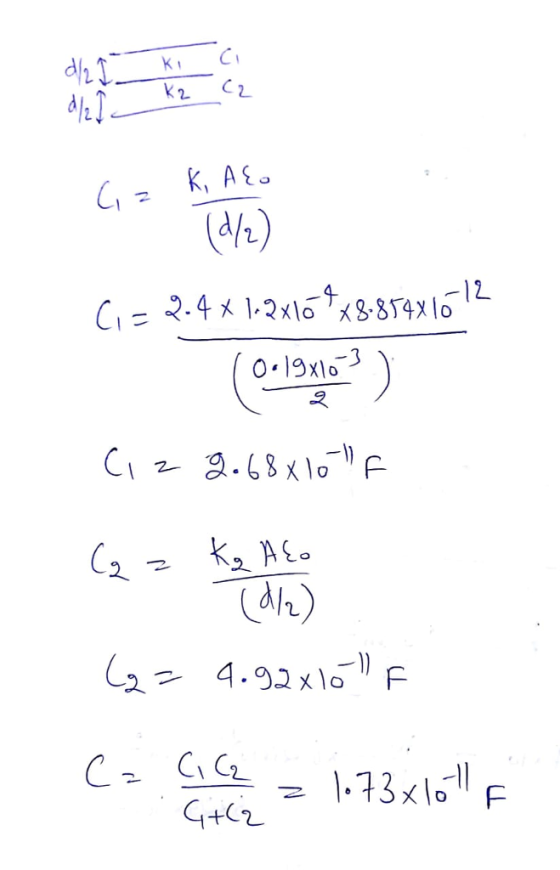

The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled with a material that has a dielectric constant κ1=2.4. The other half is filled with a material that has a dielectric constant κ2=4.4. The area of each plate is 1.2cm2, and the plate separation is 0.19 mm. Find the capacitance.
Homework Answers
Add Answer to:
The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled...
The figure below shows a parallel-plate capacitor with a plate area A = 6.67 cm2 and...
The figure below shows a
parallel-plate capacitor with a plate area A = 6.67 cm2 and plate
separation d = 4.62 mm. The top half of the gap is filled with
material of dielectric constant κ1 = 7.50; the bottom half is
filled with material of dielectric constant κ2 = 14.5. What is the
capacitance
F
The figure shows a parallel-plate capacitor of plate area A = 10.6 cm2 and plate separation...
The figure shows a parallel-plate capacitor of plate area
A = 10.6 cm2 and plate separation 2d=
6.68 mm. The left half of the gap is filled with material of
dielectric constant κ1 = 23.8; the top of the right half
is filled with material of dielectric constant κ2 =
40.8; the bottom of the right half is filled with material of
dielectric constant κ3 = 60.3. What is the
capacitance?
2 A 2 KK 2 2
Chapter 19, Problem 67 Your answer is partially correct. Try again. The drawing shows a parallel...
Chapter 19, Problem 67 Your answer is partially correct. Try again. The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled with a material that has a dielectric constant K1 2.7. The other half is filled with a material that has a dielectric constant K2-4.6. The area of each plate is 1.2cm2, and the plate separation is 0.37 mm. Find the capacitance Number Units LUF the tolerance is +/-2%
19. A parallel plate capacitor of separations distance d between the plates has the space between...
19. A parallel plate capacitor of separations distance d between the plates has the space between filled with two slabs of dielectrics, one with constant κ1 and the other with constant κ2. (a) Each slab has thickness d/2, show that the capacitance is given by ?=2ϵoAd( k1k2K1+k2) (b) The thickness of each slab is the same as the plate separation d, and each slab fills half of the volume between the plates. Show that the capacitance is ?=???(?1+?2)2?
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric...
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric material, as shown in figure (18.46) The dielectric constant of one slab is κι and the dielectric constant of the other slab is K2. The separation between the plates is d, and each slab fills half of the space between the plates of the capacitor. Determine the capacitance of this capacitor if the area of the two plates is A 2 Figure 18.46: Problem7
The following figure shows a parallel-plate capacitor with a plate area 9.99 cm2 and plate separation...
The following figure shows a parallel-plate capacitor with a plate area 9.99 cm2 and plate separation d-4.5 mm. The top half of the gap is filled with material of dielectric constant εί 10.0; the bottom half is filled with material of dielectric constant ε2-13.0. What is the capacitance? 1
The figure shows a parallel-plate capacitor of plate area A = 11.7 cm^2 and plate separation...
The figure shows a parallel-plate capacitor of plate area A = 11.7 cm^2 and plate separation 2d = 6.88 mm. The left half of the gap is filled with material of dielectric constant k_1 = 23.9: the top of the right half is filled with material of dielectric constant k_2 = 45.9: the bottom of the right half is filled with material of dielectric constant k_3 = 55.0. What is the capacitance?
A parallel plate capacitor has plates of area A = 5.50 ✕ 10−2 m2 separated by...
A parallel plate capacitor has plates of area A = 5.50 ✕ 10−2 m2 separated by distance d = 1.32 ✕ 10−4 m. (The permittivity of free space is ε0 = 8.85 ✕ 10−12 C2/(N · m2).) (a) Calculate the capacitance (in F) if the space between the plates is filled with air. . What is the capacitance (in F) if the space is filled half with air and half with a dielectric of constant κ = 3.10 as in...
The figure shows a parallel-plate capacitor of plate area A 11.8 cm* and plate separation 2d-...
The figure shows a parallel-plate capacitor of plate area A 11.8 cm* and plate separation 2d- 6.85 mm. The left half of the gap is filled with material of dielectric constant K1 -21.5; the top of the right half is filled with material of dielectric constant K2-40.0; the bottom of the right half is filled with material of dielectric constant K3 58.6. What is the capacitance? A/2 A/2 2d K1 Number Units the tolerance is +/-5%
the figure shows a parallel-plate capacitor with a plate area a and plate separation d. the...
the figure shows a parallel-plate capacitor with a plate area a and plate separation d. the left half of the gap is filled with material of dielectric constant k1; the right half is filled with material of dielectric constant k2. what is the capacitance of the capacitor? express your answer in terms of the variables given and ε0.
The figure below shows a
parallel-plate capacitor with a plate area A = 6.67 cm2 and plate
separation d = 4.62 mm. The top half of the gap is filled with
material of dielectric constant κ1 = 7.50; the bottom half is
filled with material of dielectric constant κ2 = 14.5. What is the
capacitance
F
The figure shows a parallel-plate capacitor of plate area
A = 10.6 cm2 and plate separation 2d=
6.68 mm. The left half of the gap is filled with material of
dielectric constant κ1 = 23.8; the top of the right half
is filled with material of dielectric constant κ2 =
40.8; the bottom of the right half is filled with material of
dielectric constant κ3 = 60.3. What is the
capacitance?
2 A 2 KK 2 2
Chapter 19, Problem 67 Your answer is partially correct. Try again. The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled with a material that has a dielectric constant K1 2.7. The other half is filled with a material that has a dielectric constant K2-4.6. The area of each plate is 1.2cm2, and the plate separation is 0.37 mm. Find the capacitance Number Units LUF the tolerance is +/-2%
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric material, as shown in figure (18.46) The dielectric constant of one slab is κι and the dielectric constant of the other slab is K2. The separation between the plates is d, and each slab fills half of the space between the plates of the capacitor. Determine the capacitance of this capacitor if the area of the two plates is A 2 Figure 18.46: Problem7
The following figure shows a parallel-plate capacitor with a plate area 9.99 cm2 and plate separation d-4.5 mm. The top half of the gap is filled with material of dielectric constant εί 10.0; the bottom half is filled with material of dielectric constant ε2-13.0. What is the capacitance? 1
The figure shows a parallel-plate capacitor of plate area A = 11.7 cm^2 and plate separation 2d = 6.88 mm. The left half of the gap is filled with material of dielectric constant k_1 = 23.9: the top of the right half is filled with material of dielectric constant k_2 = 45.9: the bottom of the right half is filled with material of dielectric constant k_3 = 55.0. What is the capacitance?
The figure shows a parallel-plate capacitor of plate area A 11.8 cm* and plate separation 2d- 6.85 mm. The left half of the gap is filled with material of dielectric constant K1 -21.5; the top of the right half is filled with material of dielectric constant K2-40.0; the bottom of the right half is filled with material of dielectric constant K3 58.6. What is the capacitance? A/2 A/2 2d K1 Number Units the tolerance is +/-5%
