19. A parallel plate capacitor of separations distance d between the plates has the space between...
19. A parallel plate capacitor of separations distance d between
the plates has the space
between filled with two slabs of dielectrics, one with constant κ1
and the other with constant
κ2.

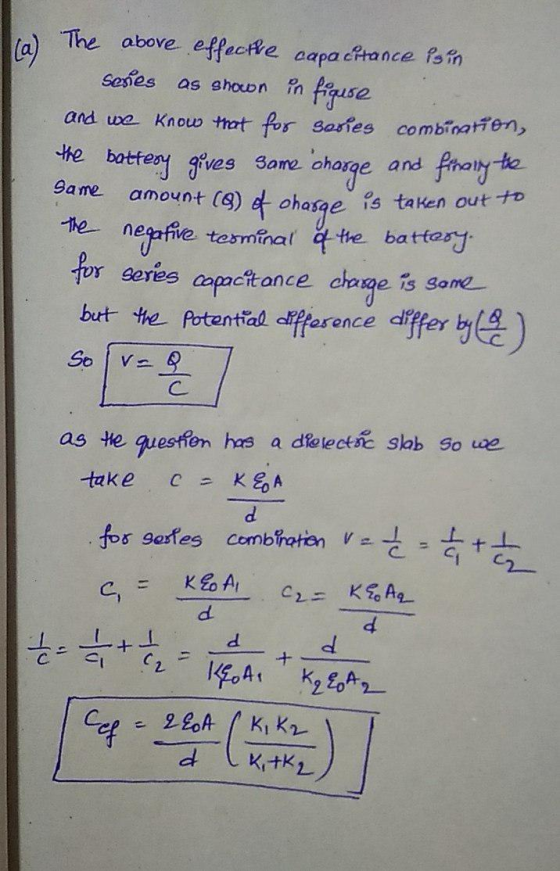

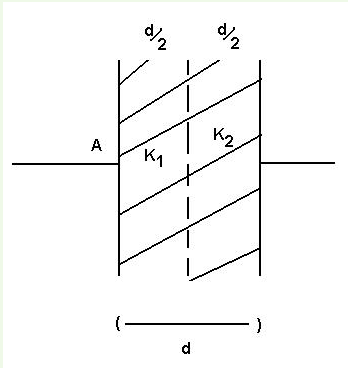

(a) Each slab has thickness d/2, show that the capacitance is given
by
?=2ϵoAd( k1k2K1+k2)

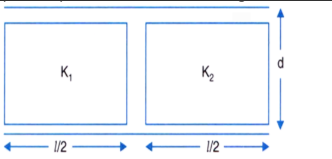

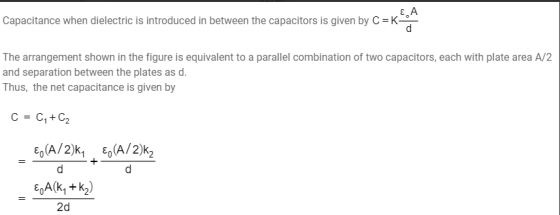

(b) The thickness of each slab is the same as the plate separation
d, and each slab fills half of the volume between the plates. Show
that the capacitance is
?=???(?1+?2)2?
Homework Answers
Add Answer to:
19. A parallel plate capacitor of separations distance d between
the plates has the space
between...
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric...
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric material, as shown in figure (18.46) The dielectric constant of one slab is κι and the dielectric constant of the other slab is K2. The separation between the plates is d, and each slab fills half of the space between the plates of the capacitor. Determine the capacitance of this capacitor if the area of the two plates is A 2 Figure 18.46: Problem7
The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled...
The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled with a material that has a dielectric constant κ1=2.4. The other half is filled with a material that has a dielectric constant κ2=4.4. The area of each plate is 1.2cm2, and the plate separation is 0.19 mm. Find the capacitance.
A parallel plate capacitor has plates of area A = 5.50 ✕ 10−2 m2 separated by...
A parallel plate capacitor has plates of area A = 5.50 ✕ 10−2 m2 separated by distance d = 1.32 ✕ 10−4 m. (The permittivity of free space is ε0 = 8.85 ✕ 10−12 C2/(N · m2).) (a) Calculate the capacitance (in F) if the space between the plates is filled with air. . What is the capacitance (in F) if the space is filled half with air and half with a dielectric of constant κ = 3.10 as in...
The space between the plates of a parallel-plate capacitor, shown below, is filled with two slabs of different dielectric materials
Problem 5 The space between the plates of a parallel-plate capacitor, shown below, is filled with two slabs of different dielectric materials. The slab at the top has thickness 2d and a relative dielectric constant of er1 = 3 and the one at the bottom has thickness d and a relative dielectric constant of er2 = 2. The capacitor plates have surface area S. a. Assume a total charge of +Q on the top plate and -Q on the bottom plate. Find...
The figure below shows a parallel-plate capacitor with a plate area A = 6.67 cm2 and...
The figure below shows a
parallel-plate capacitor with a plate area A = 6.67 cm2 and plate
separation d = 4.62 mm. The top half of the gap is filled with
material of dielectric constant κ1 = 7.50; the bottom half is
filled with material of dielectric constant κ2 = 14.5. What is the
capacitance
F
The figure shows a parallel-plate capacitor of plate area A = 10.6 cm2 and plate separation...
The figure shows a parallel-plate capacitor of plate area
A = 10.6 cm2 and plate separation 2d=
6.68 mm. The left half of the gap is filled with material of
dielectric constant κ1 = 23.8; the top of the right half
is filled with material of dielectric constant κ2 =
40.8; the bottom of the right half is filled with material of
dielectric constant κ3 = 60.3. What is the
capacitance?
2 A 2 KK 2 2
A parallel plate capacitor of capacitance C0 has plates of area A with separation d between them.
A parallel plate capacitor of capacitance C0 has plates of area A with separation d between them. When it is connected to a battery of voltage V0, it has charge of magnitude Q0 on its plates. The plates are pulled apart to a separation 2d while the capacitor remains connected to the battery and the space between the plates is filled halfway with a material having the dielectric constant K. What are the capacitance and the magnitude of the charge...
An uncharged parallel-plate capacitor with only air between the plates has C◦ = 0.600 mF. It...
An uncharged parallel-plate capacitor with only air between the plates has C◦ = 0.600 mF. It is connected to an EMF source with E = 6.00 V. a) How much charge Q◦ accumulates on the cap, and how much energy is stored, U◦? b) The capacitor is discharged back to zero, then filled with a dielectric material that brings its capacitance up to C1 = 1.950 mF. What is the value of κ1 for the dielectric material? When connected to...
Effect of a Metallic Slab A parallel-plate capocitor has a plate separation d and plate area...
Effect of a Metallic Slab A parallel-plate capocitor has a plate separation d and plate area A. An uncharged metallic slab of thickness a is inserted midway between the plates (b) The equivalent circuit of the device in part (a) consists of two capacitors in series, each having a plate separation (a) A parallel-plate capacitor of plate separation d partially filled with a metalic slab of (d-a) (a) Find the capacitance of the device. SOLUTION Conceptualize Figure (a) shows the...
The figure shows a parallel-plate capacitor of plate area A and plate separation d. A potential differenceV0 is applied between the plates.
The figure shows a parallel-plate capacitor of plate area A and plate separation d. A potential differenceV0 is applied between the plates. While the
battery remains connected, a dielectric slab of thickness b and dielectric constant κ is placed between the plates
as shown. Assume A = 130 cm2, d = 1.94
cm, V0 = 72.6 V, b = 0.735 cm, and κ =
3.15. Calculate (a) the capacitance,(b) the charge on the capacitor plates,(c) the electric field in the gap, and(d)...
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric material, as shown in figure (18.46) The dielectric constant of one slab is κι and the dielectric constant of the other slab is K2. The separation between the plates is d, and each slab fills half of the space between the plates of the capacitor. Determine the capacitance of this capacitor if the area of the two plates is A 2 Figure 18.46: Problem7
The figure below shows a
parallel-plate capacitor with a plate area A = 6.67 cm2 and plate
separation d = 4.62 mm. The top half of the gap is filled with
material of dielectric constant κ1 = 7.50; the bottom half is
filled with material of dielectric constant κ2 = 14.5. What is the
capacitance
F
The figure shows a parallel-plate capacitor of plate area
A = 10.6 cm2 and plate separation 2d=
6.68 mm. The left half of the gap is filled with material of
dielectric constant κ1 = 23.8; the top of the right half
is filled with material of dielectric constant κ2 =
40.8; the bottom of the right half is filled with material of
dielectric constant κ3 = 60.3. What is the
capacitance?
2 A 2 KK 2 2
Effect of a Metallic Slab A parallel-plate capocitor has a plate separation d and plate area A. An uncharged metallic slab of thickness a is inserted midway between the plates (b) The equivalent circuit of the device in part (a) consists of two capacitors in series, each having a plate separation (a) A parallel-plate capacitor of plate separation d partially filled with a metalic slab of (d-a) (a) Find the capacitance of the device. SOLUTION Conceptualize Figure (a) shows the...
