Determine the effective stress on a plane oriented 45 degrees from the horizontal, at a point...

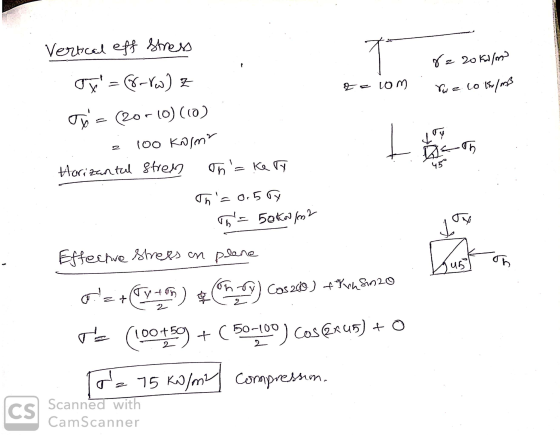

Determine the effective stress on a plane oriented 45 degrees from the horizontal, at a point located at 10 meters of depth in a saturated site. The unit weight of the soil is 20 kN/m 3, the unit weight of water is 10 kN/m 3, and the lateral stress coefficient is 0.5. Express your answer in kPa (but only write the numeric value in the text box).
Homework Answers
Add Answer to:
Determine the effective stress on a plane oriented 45 degrees
from the horizontal, at a point...
For the soil strata, draw diagrams indicating the total stress, pore pressure and effective stress profiles...
For the soil strata, draw diagrams indicating the total stress, pore pressure and effective stress profiles to the bottom of clay layer. Fine sand has a thickness of 6 m (FST) with saturated unit weight of 18 kN/m2. Clay has a thickness of 8 m with saturated unit weight of 14 kN/m3 The water table is located at depth of 0.7 of fine sand thickness below the ground surface (i.e. depth=0.7*FST). Fine sand will sustain capillarity (suction). Assume the same...
A site is underlain by a 10 meter layer of dry gravel with unit weight =...
A site is underlain by a 10 meter layer of dry gravel with unit weight = 20 kN/m3. The lateral stress ratio of the gravel is 0.25. Point A is located 6 meters below the ground surface. Determine the shear stress that acts at point A on a plane inclined 45 degrees counterclockwise from the horizontal. Express your answer in kPa, but do not write the units in the text box (just the numeric answer). If you get a negative...
A site is underlain by two layers of normally consolidated clayey sand. The unit weights of...
A site is underlain by two layers of normally consolidated clayey sand. The unit weights of the top layer are 19 and 21 kN/m3 and the layer is 6 meters thick. The unit weights of the bottom layer are 20 and 22 kN/m3 and the layer is 8 meters thick. Below the bottom layer lies bedrock. The water table is located 2 meters below the ground surface. The top layer soil has an effective stress friction angle of 38 degrees,...
Determine the effective stress on plane x-x in Figure 1 below. The saturated unit weight of...
Determine the effective stress on plane x-x in Figure 1 below. The saturated unit weight of the soil is 20 kN/m 5. 2 m 2 m Soil 2 m ni Figure 1 (Question 5)
Question 3: The following figure shows the soil profile at a site for a proposed building....
Question 3: The following figure shows the soil profile at a site for a proposed building. The soil is a homogeneous, poorly graded sand. At the soil element A (as shown in the figure), if the increase in lateral effective stress is 20% of the increase in vertical effective stress, the soil element will failure. The coefficient of lateral earth pressure at rest. Ko is 0.5. Assume all stresses are principal stresses. The upper 4 m soil shares the same...
3. Shear Strength a. Plot the effective stress Mohr-Coulomb failure envelope for a soil with c'-500...
3. Shear Strength a. Plot the effective stress Mohr-Coulomb failure envelope for a soil with c'-500 b. A plane through a sample of this soil has an effective normal stress of c. Use a Mohr circle that touches the failure enve psf and 32 deg. acting on it. What is the shear strength of the soil on that plane? of 2000 psf to estimate the values of σ, and σ, at a state of shear failure 2000 psf lope at...
A stockpile of soil (of unit weight = 18 kN/m3) is to be stored on a level site. The length of the stockpile is to be considered as infinite with the width and height equal to A = 7 m, B = 5 m and H =...
A stockpile of soil (of unit weight = 18 kN/m3) is to
be stored on a level site. The length of the stockpile is to be
considered as infinite with the width and height equal to A = 7 m,
B = 5 m and H = 7 m, as per the figure shown below. Calculate the
increase in vertical stress (in kPa) due to the loading created by
the stockpile at point A, which is located at depth Z...
subject / soil mechanics i want the solution as soon as possible Q2:- The depth of...
subject / soil mechanics
i want the solution as soon as
possible
Q2:- The depth of water in a well is 3 m. Below the bottom of the well lies a layer of sand 5 meters thick overlying a clay deposit as shown in Figure (Q2). The saturated unit weight of the sand and clay are respectively 19.5 kN/m' and 20.64 kN/m'. Determine the effective stress at points A and B. 1 AN Figure (Q2) 3 m Sand 5 m...
Question 5 (Effective Stress & Consolidation) Figure 05 shows the soil profile of a construction site....
Question 5 (Effective Stress & Consolidation) Figure 05 shows the soil profile of a construction site. The water table is at the ground surface. Saturated unit weight of the sand is 18.8kN/m' and that of the clay is 19.6kN/m. Assume permeability of the clay is very low and unit weight of water is 10kN/m'. Water Table Sand 5m Clay 6m Figure 05 a) Determine the vertical total stress, pore water pressure, and vertical effective stress at the mid-height of the...
Question 3c, how was the effective stress calculated for the depth of 2,6 and 10 m?...
Question 3c, how was the effective stress calculated for the
depth of 2,6 and 10 m? How was the Cp calculated? Is sigma 1 the
effective stress? What is sigma? Why d is 4?
1 3c In ε- Cp w-Σε disp ε. d do initial o Deformation depth d Strain (-) (m) 4 176.2 1.08 2 62 0.27 6 107 4 128.4 0.16 0.63 152 4 10 95.5 0.10 0.39 total 2.10 in 3) A 10 m wide and very...
For the soil strata, draw diagrams indicating the total stress, pore pressure and effective stress profiles to the bottom of clay layer. Fine sand has a thickness of 6 m (FST) with saturated unit weight of 18 kN/m2. Clay has a thickness of 8 m with saturated unit weight of 14 kN/m3 The water table is located at depth of 0.7 of fine sand thickness below the ground surface (i.e. depth=0.7*FST). Fine sand will sustain capillarity (suction). Assume the same...
Determine the effective stress on plane x-x in Figure 1 below. The saturated unit weight of the soil is 20 kN/m 5. 2 m 2 m Soil 2 m ni Figure 1 (Question 5)
Question 3: The following figure shows the soil profile at a site for a proposed building. The soil is a homogeneous, poorly graded sand. At the soil element A (as shown in the figure), if the increase in lateral effective stress is 20% of the increase in vertical effective stress, the soil element will failure. The coefficient of lateral earth pressure at rest. Ko is 0.5. Assume all stresses are principal stresses. The upper 4 m soil shares the same...
3. Shear Strength a. Plot the effective stress Mohr-Coulomb failure envelope for a soil with c'-500 b. A plane through a sample of this soil has an effective normal stress of c. Use a Mohr circle that touches the failure enve psf and 32 deg. acting on it. What is the shear strength of the soil on that plane? of 2000 psf to estimate the values of σ, and σ, at a state of shear failure 2000 psf lope at...
A stockpile of soil (of unit weight = 18 kN/m3) is to
be stored on a level site. The length of the stockpile is to be
considered as infinite with the width and height equal to A = 7 m,
B = 5 m and H = 7 m, as per the figure shown below. Calculate the
increase in vertical stress (in kPa) due to the loading created by
the stockpile at point A, which is located at depth Z...
subject / soil mechanics
i want the solution as soon as
possible
Q2:- The depth of water in a well is 3 m. Below the bottom of the well lies a layer of sand 5 meters thick overlying a clay deposit as shown in Figure (Q2). The saturated unit weight of the sand and clay are respectively 19.5 kN/m' and 20.64 kN/m'. Determine the effective stress at points A and B. 1 AN Figure (Q2) 3 m Sand 5 m...
Question 5 (Effective Stress & Consolidation) Figure 05 shows the soil profile of a construction site. The water table is at the ground surface. Saturated unit weight of the sand is 18.8kN/m' and that of the clay is 19.6kN/m. Assume permeability of the clay is very low and unit weight of water is 10kN/m'. Water Table Sand 5m Clay 6m Figure 05 a) Determine the vertical total stress, pore water pressure, and vertical effective stress at the mid-height of the...
Question 3c, how was the effective stress calculated for the
depth of 2,6 and 10 m? How was the Cp calculated? Is sigma 1 the
effective stress? What is sigma? Why d is 4?
1 3c In ε- Cp w-Σε disp ε. d do initial o Deformation depth d Strain (-) (m) 4 176.2 1.08 2 62 0.27 6 107 4 128.4 0.16 0.63 152 4 10 95.5 0.10 0.39 total 2.10 in 3) A 10 m wide and very...
