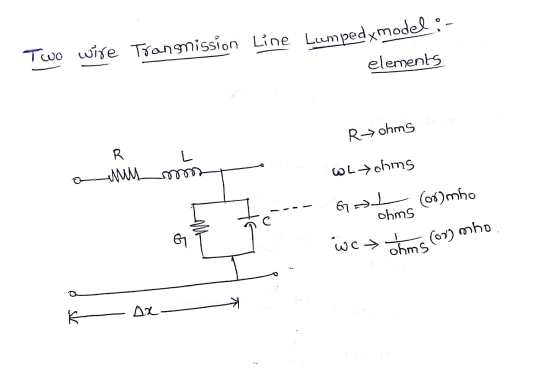

draw the lumped elements model of a two wire transmission line URGENT PLEASE
draw the lumped elements model of a two wire transmission line
URGENT PLEASE
Homework Answers
Add Answer to:
draw the lumped elements model of a two wire transmission
line
URGENT PLEASE
2. Lumped versus distributed circuits (15%) (a) A transmission line of length 1 connects a load...
2. Lumped versus distributed circuits (15%) (a) A transmission line of length 1 connects a load to a sinusoidal voltage source with an oscillation frequency of f. Assuming that the velocity of wave propagation in the line is c (that is, the speed of light in vacuum), for which of the following sit- uations can we model the transmission line as a wire (that is, use a lumped-element model) and where do we need a distributed model? (i) f =...
lumped element matching network and single stub 2. A transmission line of characteristic impedance Zo 50Q is termina...
lumped element matching network and single stub
2. A transmission line of characteristic impedance Zo 50Q is terminated with a load impedance Z, 25-j10. Operating frequency is 1GH2 (a) Design impedance matching using L or R lumped element and find the values of L or R. (b) Design impedance matching using single open stub
2. A transmission line of characteristic impedance Zo 50Q is terminated with a load impedance Z, 25-j10. Operating frequency is 1GH2 (a) Design impedance matching using...
2.4 What are the basic lumped elements of i. a mechanical systenm ii. an electrical system?...
2.4 What are the basic lumped elements of i. a mechanical systenm ii. an electrical system? Indicate whether a distributed-parameter method is needed or a lumped-parameter model is adequate in the study of following dynamic systems: a. vehicle suspension system (motion) b. elevated vehicle guideway (transverse motion) c. oscillator circuit (electrical signals) d. environment (weather) system (temperature) e. aircraft (motion and stresses) f. large transmission cable (capacitance and inductance)
Please explain the monetary transmission mechanism? How does it work? URGENT Please
Please explain the monetary transmission mechanism? How does it work? URGENT Please
Draw three phase and single phase electrical equivalent model of a transmission line (T and π...
Draw three phase and single phase electrical equivalent model of a transmission line (T and π models). Note: the book used is POWER SYSTEM ANALYSIS - John J. Grainger.
3. Consider a two-wire transmission line having length L = 1 m and wire separation s...
3. Consider a two-wire transmission line having length L = 1 m and wire separation s = 1.3 mm, operated at 100 MHz. What is the maximum differential mode current to satisfy the FCC limit on Class B devices? Repeat for a common mode current.
11.14 For a lossless two-wire transmission line, show that (a) The phase velocity u = c...
11.14 For a lossless two-wire transmission line, show that (a) The phase velocity u = c = VLC (b) The characteristic impedance Z = - Vecosh-1 d. Is part (a) true of other lossless lines?
A coaxial transmission line consists of a long straight wire and a surrounding conducting sheath. Both...
A coaxial transmission line consists of a long
straight wire and a surrounding conducting sheath. Both the wire
and the conducting sheath have square cross sections, with side
length a and b, respectively. (a)Can the TE or the TM modes of EM
waves propagate in the transmission line ? If yes, find all the
allowable modes. If no,give your reasons. (b)Find the supported TEM
wave for the transmission line.
Problem 2A coaxial transmission line consists of a long straight wire...
For a copper wire in a 2560m long transmission line to have a resistance of 1.00...
For a copper wire in a 2560m long transmission line to have a resistance of 1.00 ohm, what radius must it have? Edison suggested we use low DC voltages for household electricity. It a toaster has 12 resistive wires in parallel, and when connected to a 12.0V power I supply the toaster dissipates 1200W in total, calculate the current in the power supply, and the resistance of each wire. (Draw a schematic!)
Please draw pictures!!! 8. I) A bird stands on a dc electric transmission line carrying 4100...
Please draw pictures!!!
8. I) A bird stands on a dc electric transmission line carrying 4100 A (Fig. 18-34). The line has 2.5 x 10- resistance per meter, and the bird's feet are 4.0 cm apart. What is the potential difference between the bird's feet? Figure 18-34 Problem 8
2. Lumped versus distributed circuits (15%) (a) A transmission line of length 1 connects a load to a sinusoidal voltage source with an oscillation frequency of f. Assuming that the velocity of wave propagation in the line is c (that is, the speed of light in vacuum), for which of the following sit- uations can we model the transmission line as a wire (that is, use a lumped-element model) and where do we need a distributed model? (i) f =...
lumped element matching network and single stub
2. A transmission line of characteristic impedance Zo 50Q is terminated with a load impedance Z, 25-j10. Operating frequency is 1GH2 (a) Design impedance matching using L or R lumped element and find the values of L or R. (b) Design impedance matching using single open stub
2. A transmission line of characteristic impedance Zo 50Q is terminated with a load impedance Z, 25-j10. Operating frequency is 1GH2 (a) Design impedance matching using...
2.4 What are the basic lumped elements of i. a mechanical systenm ii. an electrical system? Indicate whether a distributed-parameter method is needed or a lumped-parameter model is adequate in the study of following dynamic systems: a. vehicle suspension system (motion) b. elevated vehicle guideway (transverse motion) c. oscillator circuit (electrical signals) d. environment (weather) system (temperature) e. aircraft (motion and stresses) f. large transmission cable (capacitance and inductance)
3. Consider a two-wire transmission line having length L = 1 m and wire separation s = 1.3 mm, operated at 100 MHz. What is the maximum differential mode current to satisfy the FCC limit on Class B devices? Repeat for a common mode current.

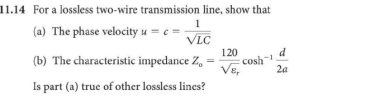

11.14 For a lossless two-wire transmission line, show that (a) The phase velocity u = c = VLC (b) The characteristic impedance Z = - Vecosh-1 d. Is part (a) true of other lossless lines?
A coaxial transmission line consists of a long
straight wire and a surrounding conducting sheath. Both the wire
and the conducting sheath have square cross sections, with side
length a and b, respectively. (a)Can the TE or the TM modes of EM
waves propagate in the transmission line ? If yes, find all the
allowable modes. If no,give your reasons. (b)Find the supported TEM
wave for the transmission line.
Problem 2A coaxial transmission line consists of a long straight wire...
For a copper wire in a 2560m long transmission line to have a resistance of 1.00 ohm, what radius must it have? Edison suggested we use low DC voltages for household electricity. It a toaster has 12 resistive wires in parallel, and when connected to a 12.0V power I supply the toaster dissipates 1200W in total, calculate the current in the power supply, and the resistance of each wire. (Draw a schematic!)
Please draw pictures!!!
8. I) A bird stands on a dc electric transmission line carrying 4100 A (Fig. 18-34). The line has 2.5 x 10- resistance per meter, and the bird's feet are 4.0 cm apart. What is the potential difference between the bird's feet? Figure 18-34 Problem 8
