Block M1 weighs 8 kg and is moving on an inclined surface with µ=.65 and an...

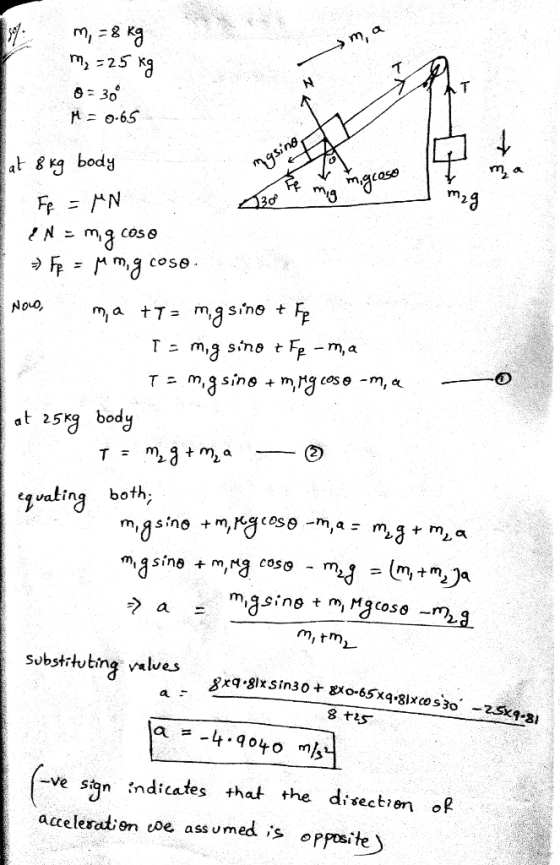

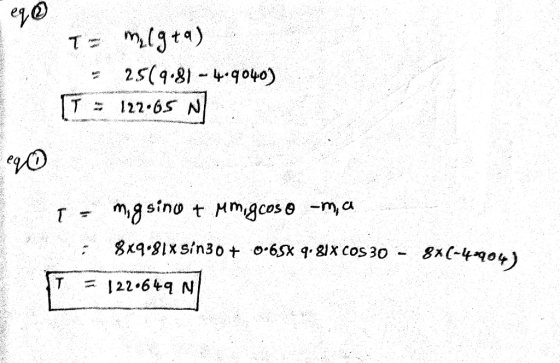

Block M1 weighs 8 kg and is moving on an inclined surface with µ=.65 and an angle of 30 degrees above the horizontal. The block is connected to a pulley that has a hanging mass of 25 kg. ignore the mass of the connecting cable and the and the friction of the wheel. Calculate the acceleration and the tension on the cable.
Homework Answers
Add Answer to:
Block M1 weighs 8 kg and is moving on an inclined surface with
µ=.65 and an...
A block of mass m1=3.7 kg on a frictionless plane inclined as angle θ=30 degrees is...
A block of mass m1=3.7 kg on a
frictionless plane inclined as angle θ=30 degrees is connected by a
cord over a massless, frictionless pulley to a second block of mass
m2=2.3 kg hanging vertically (shown above). What are (a) the
magnitude of the acceleration of each block, (b) the direction of
the acceleration of the hanging block, and (c) the tension in the
cord?
A block of mass m1 = 36 kg on a horizontal surface is connected to a...
A block of mass m1 = 36 kg on a horizontal surface is connected to a mass m2 = 17.1 kg that hangs vertically as shown in the figure below. The two blocks are connected by a string of negligible mass passing over a frictionless pulley. The coefficient of kinetic friction between m1 and the horizontal surface is 0.25. (a) What is the magnitude of the acceleration (in m/s2) of the hanging mass? ____ m/s2 (b) Determine the magnitude of...
The figure below shows an object of mass m1 = 1.0 kg on an inclined surface....
The figure below shows an
object of mass m1 = 1.0 kg on an inclined surface. The angle of the
inclined surface is θ = 30° with the horizontal. The object m1 is
connected to a second object of mass m2 = 2.5 kg on a horizontal
surface below an overhang that is formed by the inclined surface.
Further, an external force of magnitude Fext = 10 N is exerted on
the object with mass m1. We observe both objects...
A block of mass m1 = 39 kg on a horizontalsurface is connected to a...
A block of mass m1 = 39 kg on a horizontal
surface is connected to a mass m2 = 22.5 kg
that hangs vertically as shown in the figure below. The two blocks
are connected by a string of negligible mass passing over a
frictionless pulley. The coefficient of kinetic friction betweenm1 and the horizontal surface is 0.23.A) What is the magnitude of the acceleration (in
m/s2) of the hanging mass?B) Determine the magnitude of the tension (in N) in...
A block of mass m1 = 3.23 kg on a frictionless plane inclined at angle θ...
A block of mass m1 = 3.23 kg on a frictionless plane inclined at angle θ = 32.3° is connected by a cord over a massless, frictionless pulley to a second block of mass m2 = 2.60 kg hanging vertically (see the figure). (a) What is the acceleration of the hanging block (choose the positive direction down)? (b) What is the tension in the cord?
A block of mass m1 = 36 kg on a horizontal surface is connected to a...
A block of mass m1 = 36 kg on a horizontal surface is connected
to a mass m2 = 23.0 kg that hangs vertically as shown in
the figure below. The two blocks are connected by a string of
negligible mass passing over a frictionless pulley. The coefficient
of kinetic friction between m1 and the
horizontal surface is 0.30.
(Assume gravity acts toward the +ydirection and the
+x-axis is parallel to the surface and to the
right.)
(a) What is...
A block (m1 = 3.7 kg) is being pulled up a ramp (at an angle =...
A block (m1 = 3.7 kg) is being pulled up a ramp (at an angle = 36.4 degrees from the horizontal) with a cable that is parallel to the ramp's surface. The cable runs over a pulley that is at the top of the ramp and then is attached to a hanging block (m2 = 17 kg). What is the tension in the cable? Assume that the coefficient of kinetic friction for the block on the ramp is 0.2.
rni 0 A block of mass m1- 21.9 kg is at rest on a plane inclined...
rni 0 A block of mass m1- 21.9 kg is at rest on a plane inclined at 28.0 above the horizontal. The block is connected via a rope and mass less pulley system to another block of mass m2-24.1 kg, as shown in the figure. The coefficient kinetic friction between block 1 and the inclined plane is μ,-0.15. If the blocks are released from rest, what is the acceleration of m2? what is a tension force T on the rope?
Please help, I dont understand this... A block of mass m1 = 34 kg on a...
Please help, I dont understand this... A block of mass m1 = 34 kg on a horizontal surface is connected to a mass m2 = 16.5 kg that hangs vertically as shown in the figure below. The two blocks are connected by a string of negligible mass passing over a frictionless pulley. The coefficient of kinetic friction between m1 and the horizontal surface is 0.23. (a) What is the magnitude of the acceleration (in m/s2) of the hanging mass? (b)...
A block of mass m1 = 3.28 kg on a frictionless plane inclined at angle θ...
A block of mass m1 = 3.28 kg on a frictionless plane inclined at angle θ = 31.8° is connected by a cord over a massless, frictionless pulley to a second block of mass m2 = 2.74 kg hanging vertically (see the figure). (a) What is the acceleration of the hanging block (choose the positive direction down)? (b) What is the tension in the cord? Answered (a) which is 1.65 but cant get (b). Its not 27.6.
A block of mass m1=3.7 kg on a
frictionless plane inclined as angle θ=30 degrees is connected by a
cord over a massless, frictionless pulley to a second block of mass
m2=2.3 kg hanging vertically (shown above). What are (a) the
magnitude of the acceleration of each block, (b) the direction of
the acceleration of the hanging block, and (c) the tension in the
cord?
The figure below shows an
object of mass m1 = 1.0 kg on an inclined surface. The angle of the
inclined surface is θ = 30° with the horizontal. The object m1 is
connected to a second object of mass m2 = 2.5 kg on a horizontal
surface below an overhang that is formed by the inclined surface.
Further, an external force of magnitude Fext = 10 N is exerted on
the object with mass m1. We observe both objects...
A block of mass m1 = 39 kg on a horizontal
surface is connected to a mass m2 = 22.5 kg
that hangs vertically as shown in the figure below. The two blocks
are connected by a string of negligible mass passing over a
frictionless pulley. The coefficient of kinetic friction betweenm1 and the horizontal surface is 0.23.A) What is the magnitude of the acceleration (in
m/s2) of the hanging mass?B) Determine the magnitude of the tension (in N) in...
A block of mass m1 = 36 kg on a horizontal surface is connected
to a mass m2 = 23.0 kg that hangs vertically as shown in
the figure below. The two blocks are connected by a string of
negligible mass passing over a frictionless pulley. The coefficient
of kinetic friction between m1 and the
horizontal surface is 0.30.
(Assume gravity acts toward the +ydirection and the
+x-axis is parallel to the surface and to the
right.)
(a) What is...
rni 0 A block of mass m1- 21.9 kg is at rest on a plane inclined at 28.0 above the horizontal. The block is connected via a rope and mass less pulley system to another block of mass m2-24.1 kg, as shown in the figure. The coefficient kinetic friction between block 1 and the inclined plane is μ,-0.15. If the blocks are released from rest, what is the acceleration of m2? what is a tension force T on the rope?
