A block (m1 = 3.7 kg) is being pulled up a ramp (at an angle =...

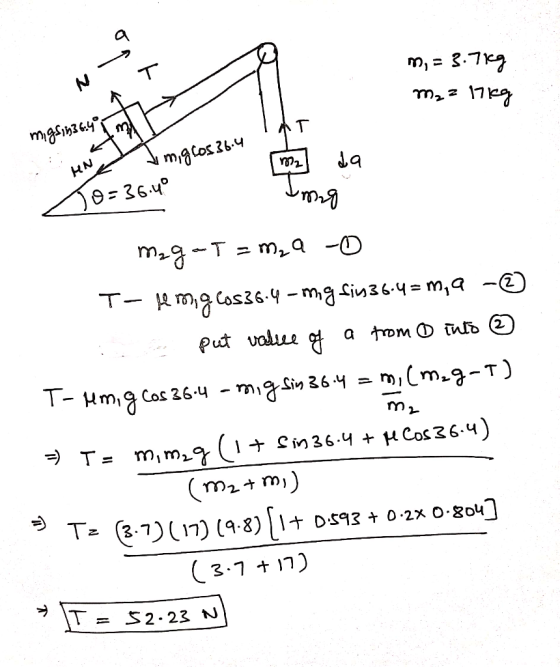

A block (m1 = 3.7 kg) is being pulled up a ramp (at an angle = 36.4 degrees from the horizontal) with a cable that is parallel to the ramp's surface. The cable runs over a pulley that is at the top of the ramp and then is attached to a hanging block (m2 = 17 kg). What is the tension in the cable? Assume that the coefficient of kinetic friction for the block on the ramp is 0.2.
Homework Answers
Block 1 (20 kg) is pulled by a rope from left to right up a ramp...
Block 1 (20 kg) is pulled by a rope from left to right up a ramp which is inclined 45 degrees from the horizontal. The rope pulls on block 1 with a force of 360 N parallel to the surface of the inclined plane. The coefficient of kinetic friction between the block and the surface equals 0.2. Assume that the x-axis is parallel to the incline and positive in the direction up the incline. What is the magnitude of the...
A block of mass m1=3.7 kg on a frictionless plane inclined as angle θ=30 degrees is...
A block of mass m1=3.7 kg on a
frictionless plane inclined as angle θ=30 degrees is connected by a
cord over a massless, frictionless pulley to a second block of mass
m2=2.3 kg hanging vertically (shown above). What are (a) the
magnitude of the acceleration of each block, (b) the direction of
the acceleration of the hanging block, and (c) the tension in the
cord?
Block M1 weighs 8 kg and is moving on an inclined surface with µ=.65 and an...
Block M1 weighs 8 kg and is moving on an inclined surface with µ=.65 and an angle of 30 degrees above the horizontal. The block is connected to a pulley that has a hanging mass of 25 kg. ignore the mass of the connecting cable and the and the friction of the wheel. Calculate the acceleration and the tension on the cable.
A 2kg block us pulled up a ramp by a constant force parallel to the ramp...
A 2kg block us pulled up a ramp by a constant force parallel to the ramp of 15N. The ramp is 2m long and inclined at 30 degrees above the horizontal. If the coefficient of kinetic friction between the block and the ramp is 0.30. what is the speed of the block at the top of the ramp?
A 4kg block us pulled up a ramp by a constant force parallel to the ramp...
A 4kg block us pulled up a ramp by a constant force parallel to the ramp of 20N. The ramp is 2m long and inclined at 30 degrees above the horizontal. If the coefficient of kinetic friction between the block and the ramp is 0.10. what is the speed of the block at the top of the ramp?
A block of mass m1 = 36 kg on a horizontal surface is connected to a...
A block of mass m1 = 36 kg on a horizontal surface is connected
to a mass m2 = 23.0 kg that hangs vertically as shown in
the figure below. The two blocks are connected by a string of
negligible mass passing over a frictionless pulley. The coefficient
of kinetic friction between m1 and the
horizontal surface is 0.30.
(Assume gravity acts toward the +ydirection and the
+x-axis is parallel to the surface and to the
right.)
(a) What is...
A block of mass m1 = 1.95 kg and a block of mass m2 = 5.50...
A block of mass m1 = 1.95 kg and a block of mass m2 = 5.50 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. The fixed, wedge-shaped ramp makes an angle of θ = 30.0° as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. A wedge in the shape of a right trapezoid...
A block of mass m1 = 39 kg on a horizontalsurface is connected to a...
A block of mass m1 = 39 kg on a horizontal
surface is connected to a mass m2 = 22.5 kg
that hangs vertically as shown in the figure below. The two blocks
are connected by a string of negligible mass passing over a
frictionless pulley. The coefficient of kinetic friction betweenm1 and the horizontal surface is 0.23.A) What is the magnitude of the acceleration (in
m/s2) of the hanging mass?B) Determine the magnitude of the tension (in N) in...
A block of mass m1 = 36 kg on a horizontal surface is connected to a...
A block of mass m1 = 36 kg on a horizontal surface is connected to a mass m2 = 17.1 kg that hangs vertically as shown in the figure below. The two blocks are connected by a string of negligible mass passing over a frictionless pulley. The coefficient of kinetic friction between m1 and the horizontal surface is 0.25. (a) What is the magnitude of the acceleration (in m/s2) of the hanging mass? ____ m/s2 (b) Determine the magnitude of...
A 6.15 kg block is pulled by a rope up a ramp with an incline of...
A 6.15 kg block is pulled by a rope up a ramp with an incline of 25 degrees from the horizontal. The acceleration of the block is 2.45 m/s^2. The coefficient of friction between the block and the ramp is 0.266. What is the tension in the rope?
A block of mass m1=3.7 kg on a
frictionless plane inclined as angle θ=30 degrees is connected by a
cord over a massless, frictionless pulley to a second block of mass
m2=2.3 kg hanging vertically (shown above). What are (a) the
magnitude of the acceleration of each block, (b) the direction of
the acceleration of the hanging block, and (c) the tension in the
cord?
A block of mass m1 = 36 kg on a horizontal surface is connected
to a mass m2 = 23.0 kg that hangs vertically as shown in
the figure below. The two blocks are connected by a string of
negligible mass passing over a frictionless pulley. The coefficient
of kinetic friction between m1 and the
horizontal surface is 0.30.
(Assume gravity acts toward the +ydirection and the
+x-axis is parallel to the surface and to the
right.)
(a) What is...
A block of mass m1 = 39 kg on a horizontal
surface is connected to a mass m2 = 22.5 kg
that hangs vertically as shown in the figure below. The two blocks
are connected by a string of negligible mass passing over a
frictionless pulley. The coefficient of kinetic friction betweenm1 and the horizontal surface is 0.23.A) What is the magnitude of the acceleration (in
m/s2) of the hanging mass?B) Determine the magnitude of the tension (in N) in...
