What are the magnitude and direction of the electric field at a point P located at...

What are the magnitude and direction of the electric field at a point P located at xp=2.0 m, yp=3.0 m, due to two charged particles on the x-axis, one carrying a charge q1=+10 μC at x1=1.0 m and one carrying a charge q2=+20 μC at x2=-1.0 m?

Please show work. Thank you

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

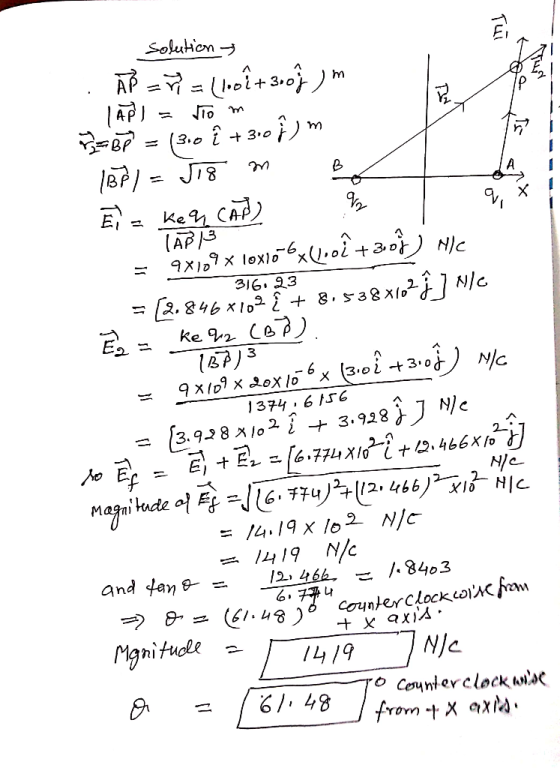

Answer #1

0 0
Add a comment
