1. Determine the electric field (magnitude and direction) at the point A (8.00 nm, 6.00 nm)...

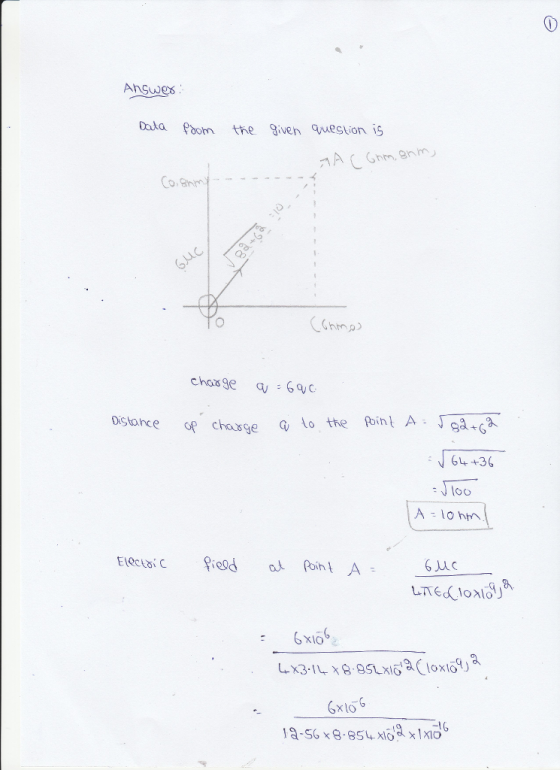

1. Determine the electric field (magnitude and direction) at the point A (8.00 nm, 6.00 nm) caused by a particle located at the origin and carrying a charge of 6.00 μC . Express your answer to two significant digits and include the appropriate units. Enter positive value if the direction of the field is equivalent to the direction from the origin to the point A and negative value if the direction of the field is equivalent to the direction from the point A to the origin.

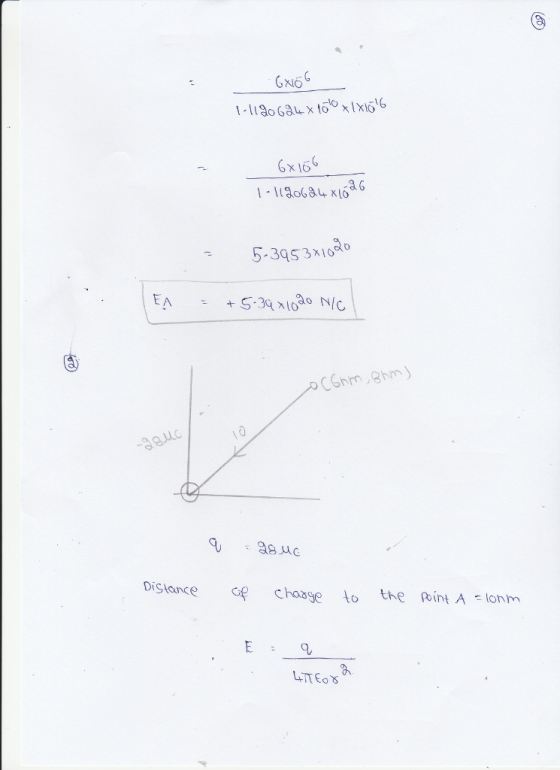

2. Determine the electric field (magnitude and direction) at the point A (8.00 nm, 6.00 nm) caused by a particle located at the origin and carrying a charge of -28.0 μC .
Express your answer to two significant digits and include the appropriate units. Enter positive value if the direction of the field is equivalent to the direction from the origin to the point A and negative value if the direction of the field is equivalent to the direction from the point A to the origin.

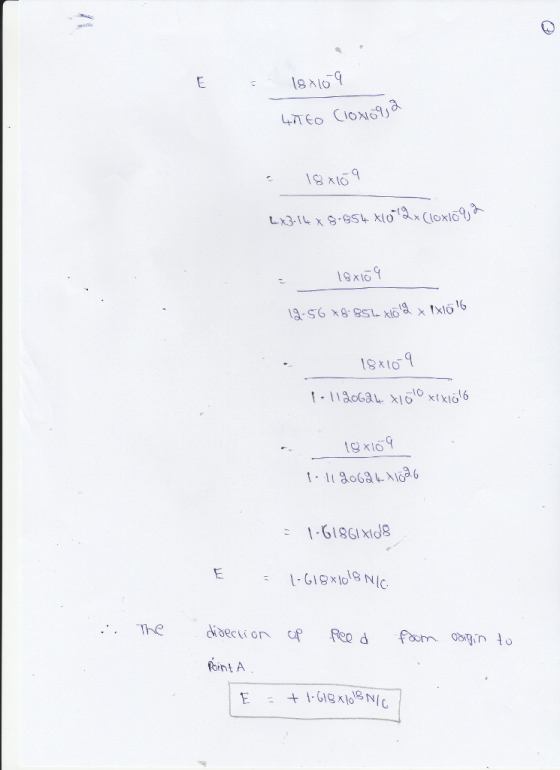

3. Determine the electric field (magnitude and direction) at the point A (8.00 nm, 6.00 nm) caused by a particle located at the origin and carrying a charge of 18.0 nC .
Express your answer to two significant digits and include the appropriate units. Enter positive value if the direction of the field is equivalent to the direction from the origin to the point A and negative value if the direction of the field is equivalent to the direction from the point A to the origin.
Homework Answers
Add Answer to:
1. Determine the electric field (magnitude and direction) at the
point A (8.00 nm, 6.00 nm)...
PartA Conslarits Find the electric field (magnitude and direction) at point on the r-axis at 0.200...
PartA Conslarits Find the electric field (magnitude and direction) at point on the r-axis at 0.200 m. Express your answer with the appropriate units. Enter positive value if the field is in the positive z-direction and negative value if the tield is in the negative 2-direct A-4.00 nC point ㎝erge is at the origin, and a second-7.00 nC point charge is on the Value Units Submut Part B Find the electric field imagnitude and direction) at point on the r-exus...
Part A What is the magnitude of the electric field at a point midway between a-5.6...
Part A What is the magnitude of the electric field at a point midway between a-5.6 μC and a +7.0 μC charge 10 cm apart? Assume no other charges are nearby Express your answer using two significant figures. B-1 Value Units Submit Request Answer Part B What is the direction of the electric field? toward the negative charge toward the positive charge Submit Request Answer
What are the magnitude and direction of the electric field at a point P located at...
What are the magnitude and direction of the electric field at a point P located at xp=2.0 m, yp=3.0 m, due to two charged particles on the x-axis, one carrying a charge q1=+10 μC at x1=1.0 m and one carrying a charge q2=+20 μC at x2=-1.0 m? Please show work. Thank you
Two charges (dipole) of +q = +6.00 μC and −q = −6.00 μC along the y-axis,...
Two charges (dipole) of +q = +6.00 μC and −q = −6.00 μC along
the y-axis, separated by 3.00 m, as shown in the figure below.
Point P is located 4.00 m directly to the right of the positive
charge, as shown. The origin is located halfway between the
charges.
(a) At point P (test point), sketch and label the electric field
E+ due to the positive charge +q, and the electric field E - due to
the negative charge...
Find the magnitude and direction of the electric field this combination of charges produces at point...
Find the magnitude and direction of the electric field this combination of charges produces at point P, which lies 6.00 cm from the -q2 charge measured perpendicular to the line connecting the three charges. Assume that q1 = 4.50 μC and q2 = 1.65 μC .
Two point charges are placed on the x axis. (Figure 1)The first charge, q1 = 8.00...
Two point charges are placed on the x axis. (Figure 1)The first charge, q1 = 8.00 nC , is placed a distance 16.0 m from the origin along the positive x axis; the second charge, q2 = 6.00 nC , is placed a distance 9.00 m from the origin along the negative x axis. Part A Part complete Calculate the electric field at point A, located at coordinates (0 m, 12.0 m ). Give the x and y components of...
(a) Determine the electric field strength at a point 1.00 cm to the left of the...
(a) Determine the electric field strength at a point 1.00 cm to the left of the middle charge shown in the figure below. (Enter the magnitude of the electric field only.) N/C 6.00 μC 1.50pC -2.00 8.00 cm1 2.00 cm (b) If a charge of -2.31 uC is placed at this point, what are the magnitude and direction of the force on it? magnitude direction Submit Answer Save ProgressPractice Another Version
A particle carrying a charge of +32.0 nC is located at (10.0 nm, 95.0 nm), and...
A particle carrying a charge of +32.0 nC is located at (10.0 nm, 95.0 nm), and a particle carrying a charge of +98.0 nC is located at (45.0 nm, 56.0 nm). Calculate the magnitude of the electric force exerted on a charged particle placed at the origin if the charge on that particle is 3.60 μC . (Hint: Once this part is done, there is a fast way to do the other parts.) Calculate the magnitude of the electric force...
Electric Field due to Two Point Charges 5 of 13 Two point charges are placed on...
Electric Field due to Two Point Charges 5 of 13 Two point charges are placed on the x axis (Figure 1)The first charge, gh 8.00 nC, is placed a distance 16.0 m from the origin charge, Q2 6.00 nC, is placed a distance 9.00 m from the origin along the negative x axis. Part A Find the electric field at the origin, point O Give the x and y components of the electric field as an ordered pair. Express your...
(a) Determine the electric field strength at a point 1.00 cm to the left of the...
(a) Determine the electric field strength at a point 1.00 cm to the left of the middle charge shown in the figure below. (Enter the magnitude of the electric field only.) 6.00 μο: 1.50 μC -2.00 pc 8.00 cm2 2.00 cm 2e13 Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully. N/C (b) If a charge of-6.09 μC is placed at this point, what are the magnitude and direction of...
PartA Conslarits Find the electric field (magnitude and direction) at point on the r-axis at 0.200 m. Express your answer with the appropriate units. Enter positive value if the field is in the positive z-direction and negative value if the tield is in the negative 2-direct A-4.00 nC point ㎝erge is at the origin, and a second-7.00 nC point charge is on the Value Units Submut Part B Find the electric field imagnitude and direction) at point on the r-exus...
Part A What is the magnitude of the electric field at a point midway between a-5.6 μC and a +7.0 μC charge 10 cm apart? Assume no other charges are nearby Express your answer using two significant figures. B-1 Value Units Submit Request Answer Part B What is the direction of the electric field? toward the negative charge toward the positive charge Submit Request Answer
Two charges (dipole) of +q = +6.00 μC and −q = −6.00 μC along
the y-axis, separated by 3.00 m, as shown in the figure below.
Point P is located 4.00 m directly to the right of the positive
charge, as shown. The origin is located halfway between the
charges.
(a) At point P (test point), sketch and label the electric field
E+ due to the positive charge +q, and the electric field E - due to
the negative charge...
(a) Determine the electric field strength at a point 1.00 cm to the left of the middle charge shown in the figure below. (Enter the magnitude of the electric field only.) N/C 6.00 μC 1.50pC -2.00 8.00 cm1 2.00 cm (b) If a charge of -2.31 uC is placed at this point, what are the magnitude and direction of the force on it? magnitude direction Submit Answer Save ProgressPractice Another Version
Electric Field due to Two Point Charges 5 of 13 Two point charges are placed on the x axis (Figure 1)The first charge, gh 8.00 nC, is placed a distance 16.0 m from the origin charge, Q2 6.00 nC, is placed a distance 9.00 m from the origin along the negative x axis. Part A Find the electric field at the origin, point O Give the x and y components of the electric field as an ordered pair. Express your...
(a) Determine the electric field strength at a point 1.00 cm to the left of the middle charge shown in the figure below. (Enter the magnitude of the electric field only.) 6.00 μο: 1.50 μC -2.00 pc 8.00 cm2 2.00 cm 2e13 Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully. N/C (b) If a charge of-6.09 μC is placed at this point, what are the magnitude and direction of...
