Assignment 4

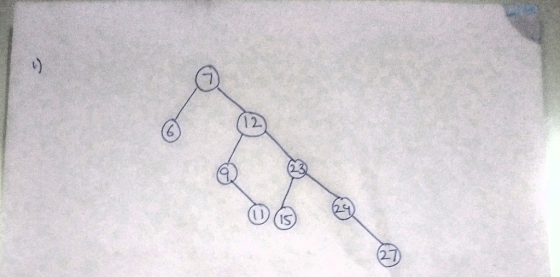

1)For all the questions in Assignment 4, you need to draw a diagram to describe the steps and provide short description as needed. Construct a Binary Search Tree by inserting the following node one by one. [4 points] 7,12,6,9,11,23,24,27,15

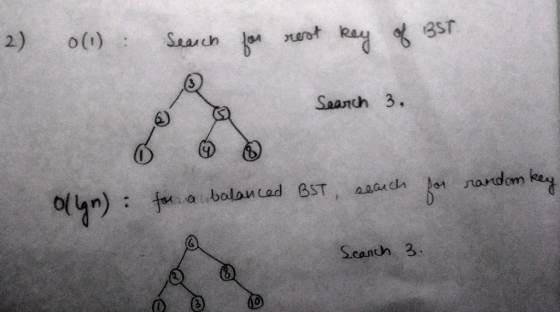

2)Provide an example for each following cases to search a given key in a Binary Search Tree. [4 points]

Time efficiency=Ο(1)3S8CEMtd9AAAAAElFTkSuQmCC

Time efficiency=ΟlogncdA3f5imtB2VefcxtquYZA8cQHOJLX+AydvU9UjZ

Time efficiency=Ο(n)ZRO+N+OcdxOBP4CbNI+pPm7zwkAAAAASUVORK5CY

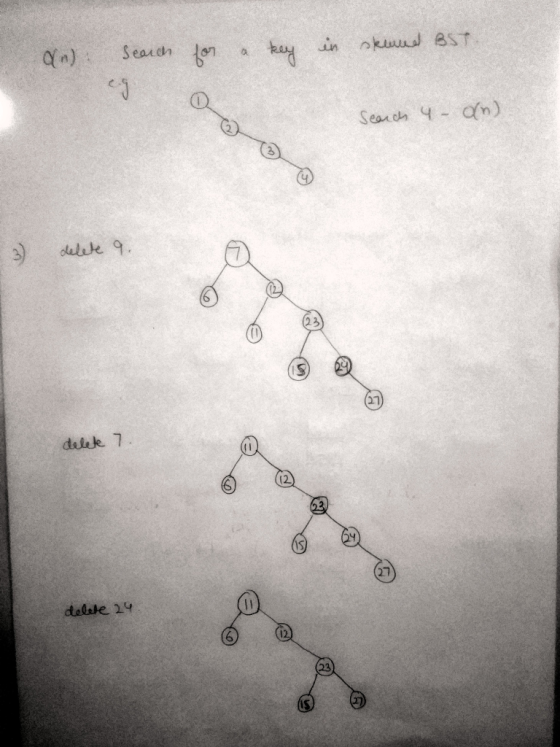

3)For the BST you created in question 1, delete the node 9, then 7, then 24 [4 points] 8+(7*4+(3- 2))/6gFd6ZIUETwAAAABJRU5ErkJggg== [4 points]

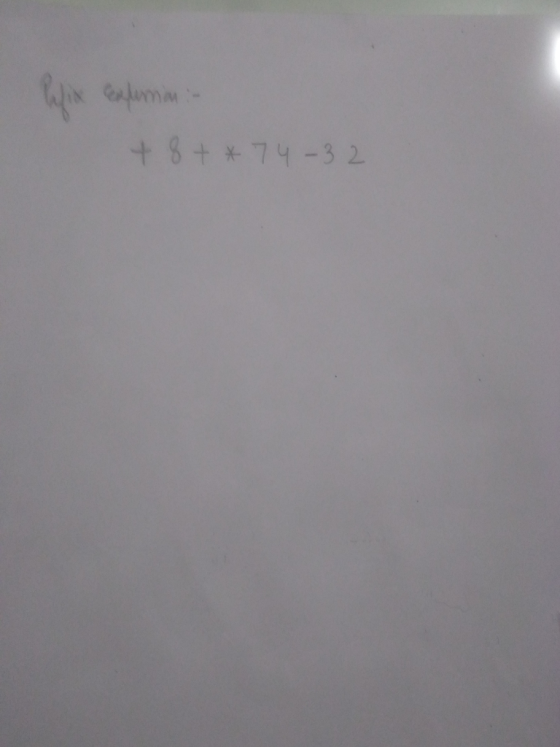

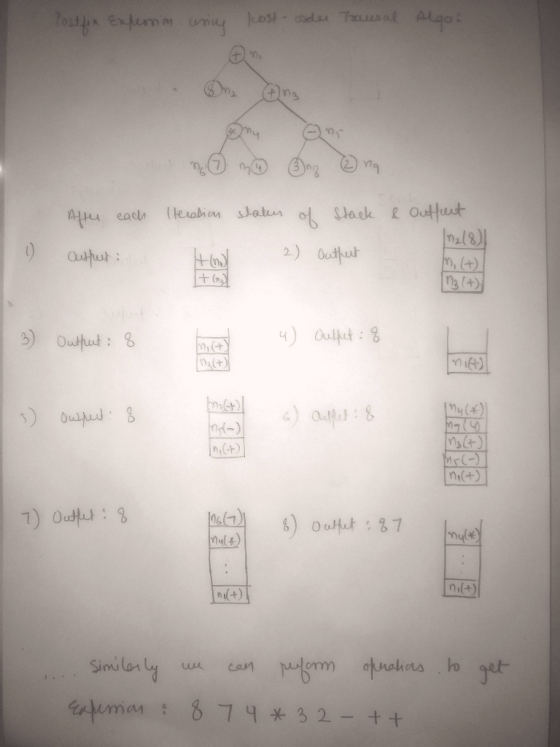

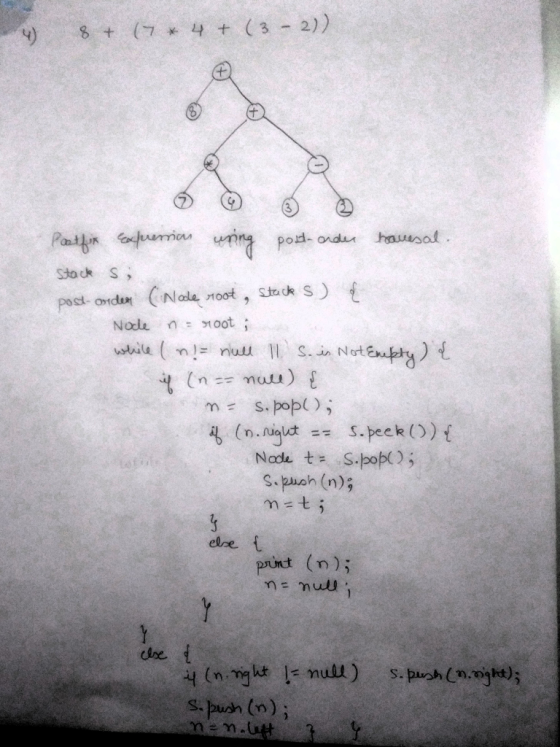

4)Draw a Binary expression tree from the above infix expression. Write the postfix expression and prefix expression using Post-order Traversal and Pre-order Traversal. Using Stack to evaluate the postfix traversal

engineering Computer-Science

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment
