a 30 newton force is being applied by a hand on a ball directly forward (positive...

a 30 newton force is being applied by a hand on a ball directly forward (positive y direction). a weaker force is pushing the ball forward and to the right with a force of 10 newtons, 20 degrees to the right of the y direction. (remember the angle given is relative to the y axis, not the x axis) What is the balancing force needed to make the net force zero?

A. 50 newtons at 10 degrees from the y axis
B. 50 Newtons at 10 degrees from the negative y direction
C. 6.84N + x-dir, 49.3 N + y-dir
D. 6.84N - x-dir, 48.8 N - y-dir
E. 6.84N + x dir, 48.8 N + y-dir
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

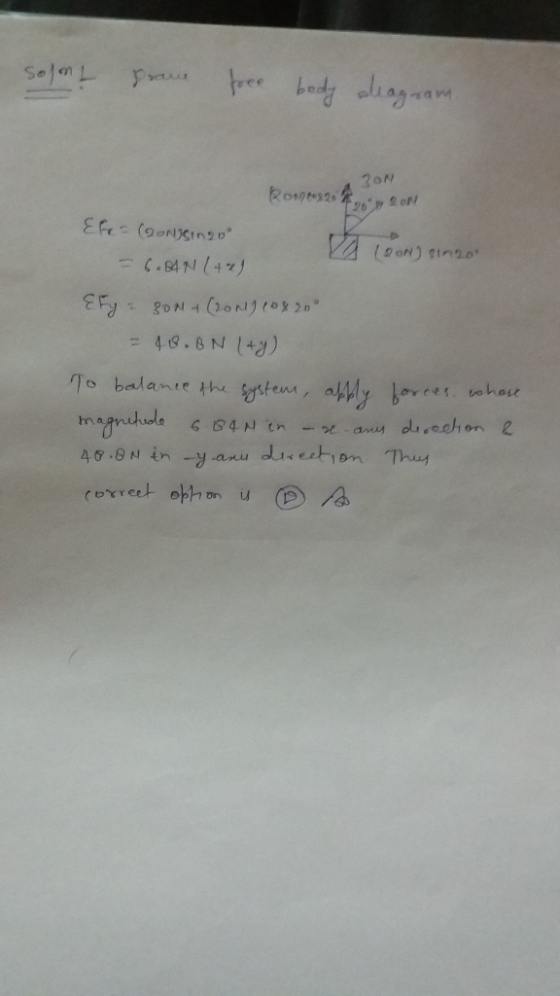

Answer #1

0 0
Add a comment
