1. 55Kg Block is being pulled to the right across a table with an applied force...

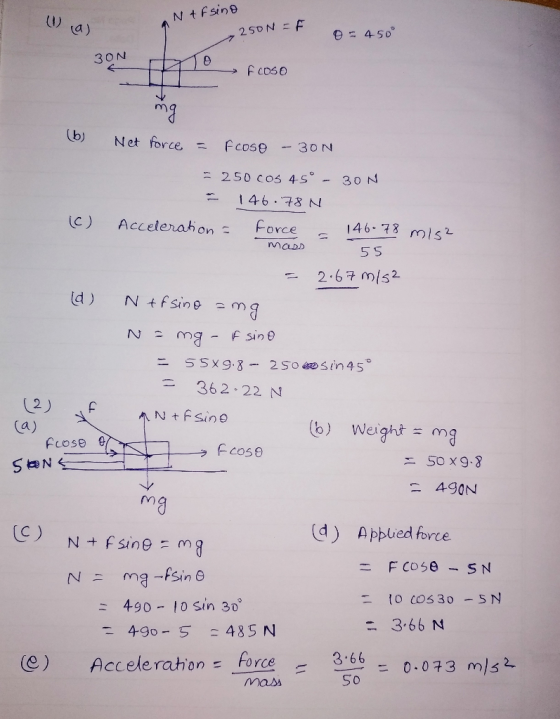

1. 55Kg Block is being pulled to the right across a table with an applied force of 250N at 45.0 degrees above the horizontal. an opposing force of 30.0 N is acting on the block to the left.
a) draw a FBD
b) Find the net force
c) find the acceleration
d) Find the Y component of the applied force
e) Find the normal force
2. A 50 kg box if a dolly pushes the cart with an applied force of 10N at an angle of 30 degrees above the positive horizontal and a frictional force of 5N acts on the cart.
a) draw a FBD
b) calculate the weight
c) calculate the Normal Force
d) Calculate the applied force in the Horizontal
e) Calculate Acceleration

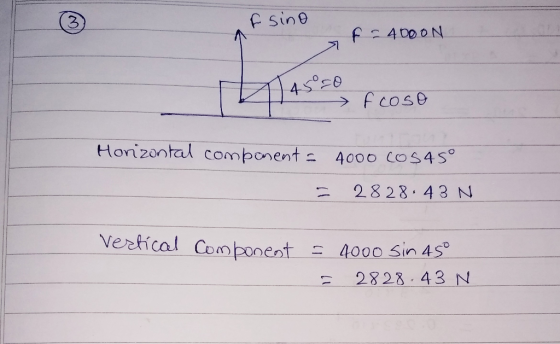

3. A force of 4000 N is acting on an object at an angle of 45 degrees. what is the horizontal component of this force? What is the vertical component of this force?
Homework Answers
