A 70 kg box is pulled by a 300 N tension force at an angle of 30° above the horizontal. The frictional force is 140 Newtons.

Draw and label a qualitative force diagram for the box *

Calculate the horizontal component of the tension. Show your work. *

Calculate the vertical component of the tension. Show your work. *

Calculate the gravitational force. Show your work. *

Calculate the normal force. Show your work. *

Calculate the horizontal net force. Show your work. *

science physics

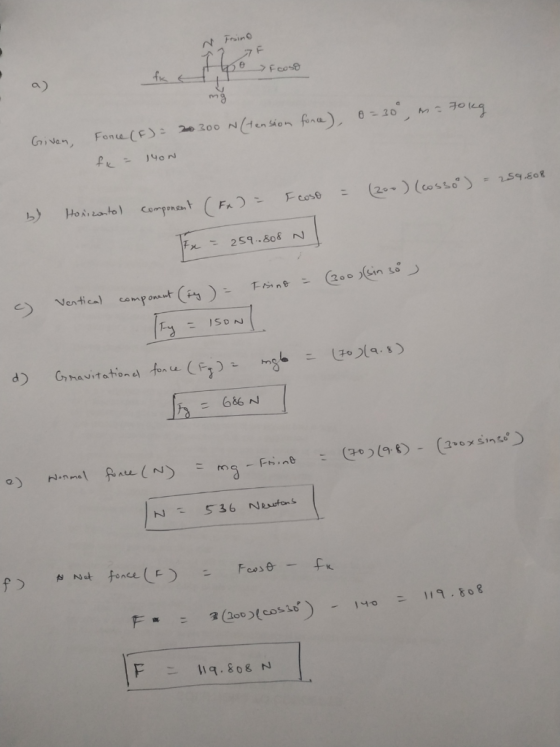

Answer 1

Answer #1

Answer 2
