A 350 kg box is pulled 6.40 m up a 30 degree inclined plane by an...

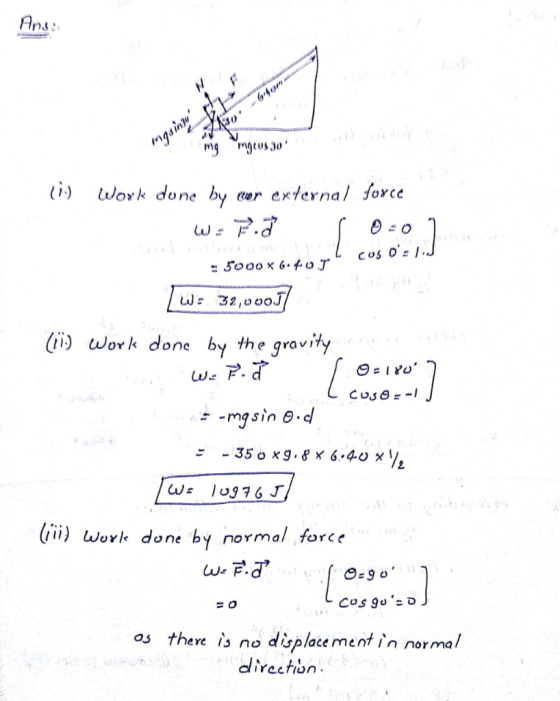

A 350 kg box is pulled 6.40 m up a 30 degree inclined plane by an external force of 5000 N that acts parallel to the frictionless plane.
A) Calculate the work done by the external force. Answer in kJ.
B) Calculate the work done by gravity. Answer in kJ.
C) Calculate the work done by the normal force. Answer in J.
Please answer this in a step-by-step fashion, I would like to see the setting up so that I can try to understand the ''why'' behind.
Homework Answers
Add Answer to:
A 350 kg box is pulled 6.40 m up a 30 degree inclined plane by
an...
A 347 kg box is pulled 6.00 m up a 30° frictionless, inclined plane by an...
A 347 kg box is pulled 6.00 m up a 30° frictionless, inclined plane by an external force of 4625 N that acts parallel to the plane. Calculate the work done by the external force. work done by the external force: J Calculate the work done by gravity. work done by gravity: J Calculate the work done by the normal force.
A 351 kg box is pulled 9.00 m up a 30° frictionless, inclined plane by an...
A 351 kg box is pulled 9.00 m up a 30° frictionless, inclined plane by an external force of 5425 N that acts parallel to the plane. Calculate the work done by the external force. work done by the external force: Calculate the work done by gravity. work done by gravity: Calculate the work done by the normal force. work done by the normal force:
A 351 kg box is pulled 6.00 m up a 30° frictionless, inclined plane by an...
A 351 kg box is pulled 6.00 m up a 30° frictionless, inclined plane by an external force of 4775 N that acts parallel to the plane. a- Calculate the work done by the external force. b-Calculate the work done by gravity. c-Calculate the work done by the normal force.
A 121.4 N carton is pulled up a frictionless baggage ramp inclined at 33.0 ∘ above...
A 121.4 N carton is pulled up a frictionless baggage ramp inclined at 33.0 ∘ above the horizontal... A 121.4 N carton is pulled up a frictionless baggage ramp inclined at 33.0 ∘ above the horizontal by a rope exerting a 75.2 N pull parallel to the ramp's surface. The carton travels 6.95 m along the surface of the ramp. A. Calculate the work done on the carton by the rope. Express your answer using three significant figures. B. Calculate...
an object of mass 10kg rests on an inclined plane of 30 degree angle with horizontal....
an object of mass 10kg rests on an inclined plane of
30 degree angle with horizontal. a force P=200 N acts on it upward
along the inclined plane and moves it 20m. the coefficient of
friction UK=0.25.
2 4 x (cm) 6. An object of mass 10 kg rests on an inclined plane of 30 angle with horizontal. A force 0° angle with horizontal. A force P 200 N acts on it upward along the inclined plane and moves it...
4.7kg block is pulled up a frictionless inclined plane by a 69.0 N force that is...
4.7kg block is pulled up a frictionless inclined plane by a 69.0 N force that is parallel to the plane, starting from rest. the normal force on the block from the plane has magnitude 19.1 N. What is the blocks speed when its displacement up the ramp is 3.7m?
A 2.50 kg block slides down an inclined plane at a 20.0 degree angle (constant velocity)....
A 2.50 kg block slides down an inclined plane at a 20.0 degree angle (constant velocity). a) If the length of the incline is 2.0 m, calculate the work done by the force of gravity. b) Calculate the work done by the force of friction. c) Calculate the net work done by both gravity and friction.
A 50.0 kg block is pulled up from an inclined plane at 13.0 ° by a...
A 50.0 kg block is pulled up from an inclined plane at 13.0 ° by a force of 250 N that is exerted parallel to the plane. The coefficient of kinetic friction between the block and the plane is 0.200. The magnitude of the acceleration of the block is:
An object of 1.0 kg mass is pulled up an inclined plane by a constant force...
An object of 1.0 kg mass is pulled up an inclined plane by a constant force of 10 N that causes a displacement of 0.50 m. The angle of inclination with the horizontal is 30degree. Neglect friction and use g = 10 m/s^2. What is the work done by the net force on the object along the inclined plane? 4.3 J 4.3 kg m/s^2 0 J 2.5 J 3.5 J
A 5kg box is being pulled up an inclined 20 degree slope, the coefficient of kinetic...
A 5kg box is being pulled up an inclined 20 degree slope, the coefficient of kinetic friction is 0.3. It is being pulled by a rope that experts a 20N force and that force makes an angle of 30 degree upward with respect to that slope. Calculate the acceleration of the box
A 351 kg box is pulled 9.00 m up a 30° frictionless, inclined plane by an external force of 5425 N that acts parallel to the plane. Calculate the work done by the external force. work done by the external force: Calculate the work done by gravity. work done by gravity: Calculate the work done by the normal force. work done by the normal force:
an object of mass 10kg rests on an inclined plane of
30 degree angle with horizontal. a force P=200 N acts on it upward
along the inclined plane and moves it 20m. the coefficient of
friction UK=0.25.
2 4 x (cm) 6. An object of mass 10 kg rests on an inclined plane of 30 angle with horizontal. A force 0° angle with horizontal. A force P 200 N acts on it upward along the inclined plane and moves it...
An object of 1.0 kg mass is pulled up an inclined plane by a constant force of 10 N that causes a displacement of 0.50 m. The angle of inclination with the horizontal is 30degree. Neglect friction and use g = 10 m/s^2. What is the work done by the net force on the object along the inclined plane? 4.3 J 4.3 kg m/s^2 0 J 2.5 J 3.5 J
