A 347 kg box is pulled 6.00 m up a 30° frictionless, inclined plane by an...

A 347 kg box is pulled 6.00 m up a 30° frictionless, inclined plane by an external force of 4625 N that acts parallel to the plane. Calculate the work done by the external force. work done by the external force: J Calculate the work done by gravity. work done by gravity: J Calculate the work done by the normal force.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

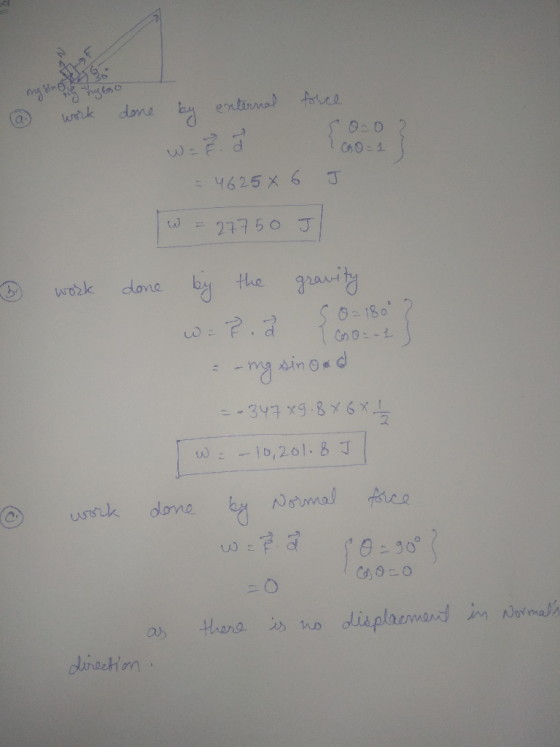

Answer #1

hope this helps.

Please give a thumbs up.

Please comment for any doubt or further clarification...

0 0
Add a comment
