A large, 2,800 MW power plant must be cooled by dissipating the heat it produces into...
A large, 2,800 MW power plant must be cooled by dissipating the
heat it
produces into a nearby lake. Water from the lake is used to achieve
the
cooling. During this process, the water temperature is allowed to
rise by 12°F,
as it circulates through the power plant.

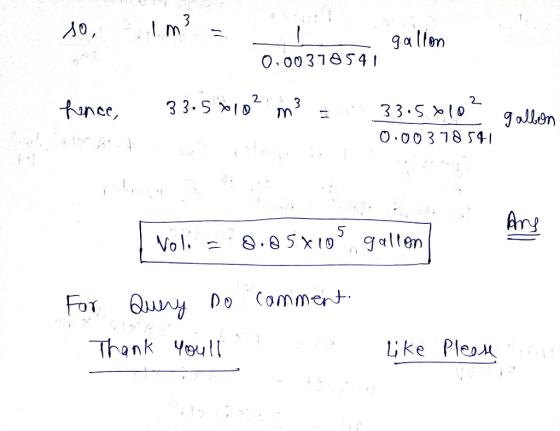

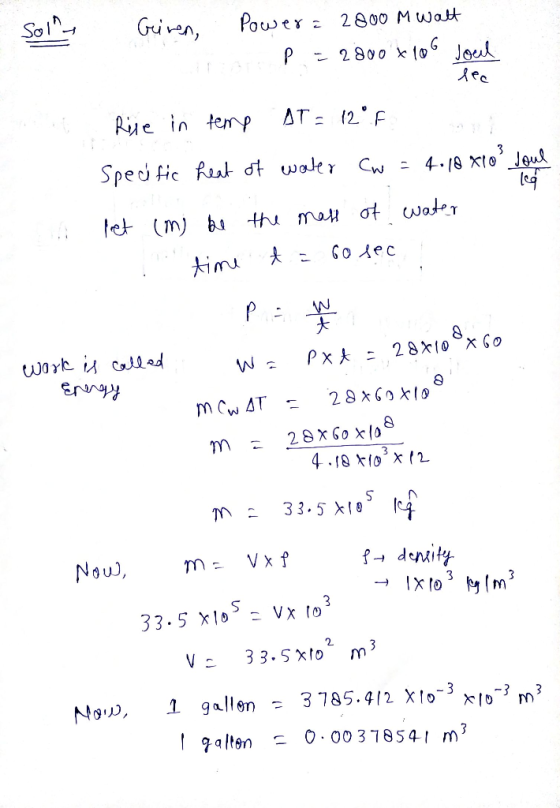

Calculate the number of gallons of cooling water required each
minute.
Homework Answers
Add Answer to:
A large, 2,800 MW power plant must be cooled by dissipating the
heat it
produces into...
The nuclear power plant generates 1826 MW of power, dissipating 5% of this power as waste...
The nuclear power plant generates 1826 MW of power, dissipating 5% of this power as waste heat in the process. This power is transferred to water which flows in the cooling towers. The water heats up from 33oC to 45oC. What is the flow rate of the water in the water towers?
A nuclear power plant generates 3000 MW of heat energy from nuclear reactions in the reactor's...
A nuclear power plant generates 3000 MW of heat energy from nuclear reactions in the reactor's core. This energy is used to boil water and produce high-pressure steam at 320 ∘C. The steam spins a turbine, which produces 1000 MW of electric power, then the steam is condensed and the water is cooled to 25∘C before starting the cycle again. Part A: What is the maximum possible thermal efficiency of the power plant? Part B: Cooling water from a river...
A typical large coal fired electric power plant produces 1,200MW of electricity by burning fuel with...
A typical large coal fired electric power plant produces 1,200MW of electricity by burning fuel with energy content of 3,000 MW. Three hundred and forty (340) MW are lost as heat up the smokestack leaving the rest to drive a generator to produce electricity. However, the thermal efficiency of the turbine is only 45%. That is 45% of the remaining power goes to drive the generator, and 55% is waste heat that must be removed by cooling water. Assume that...
A nuclear power plant has a reactor that produces heat at the rate of 870 MW....
A nuclear power plant has a reactor that produces heat at the rate of 870 MW. This heat is used to produce 240 MW of mechanical power to drive an electrical generator. (a) At what rate is heat discarded to the environment by this power plant? MW (b) What is the thermal efficiency of the plant? A research group plans to construct an engine that extracts energy from the ocean, using the fact that the water temperature near the surface...
30% of the energy produced from a nuclear power plant is converted to 1000 MW of...
30% of the energy produced from a nuclear power plant is converted to 1000 MW of electrical energy. The remaining 70% of the energy from this plant is converted to heat waste. 20% of the heat waste is released out of the smokestack. 80% of the heat waste is taken away by cooling water that is drawn from a nearby river. Specific heat of water = 4.184 kJ/kgºC a) How much of the heat waste is taken away by the...
A natural-gas-fired steam power plant produces 50 MW of net work while consuming natural gas at...
A natural-gas-fired steam power plant produces 50 MW of net work while consuming natural gas at a rate of 500 MMBTU/hr (five- hundred million BTUs of heat emitted by the combusting natural gas per hour). (a) Determine the thermal efficiency of this facility (b) Determine the rate of heat rejection from this facility (c) If the flame temperature of the natural gas were 800°C and the heat rejected by the facility was into a nearby lake at 15°C, determine the...
In a large steam power plant, the combustion of coal provides a heat rate of -...
In a large steam power plant, the combustion of coal provides a heat rate of - 2500 MW at a flame temperature of T-1000 K. Heat is rejected from the plant to a river flowing at T. = 300 K. Heat is transferred from the combustion products to the exterior of large tubes in the boiler by way of radiation and convection, through the boiler tubes by conduc- tion, and then from the interior tube surface to the working fluid...
11. A water-cooled electric power plant generates 300 MW of power at an efficiency of 30%....
11. A water-cooled electric power plant generates 300 MW of power at an efficiency of 30%. At what rate must water be circulated past the condenser if the change in water temperature is not to exceed 15°C? (The specific heat of water is 4.2 x 10° J/ kg°C) A) 22000 x 10³ kg/ s E) 6000 x 10³ kg/ s 9000 x 103 kg/ s D) C) 33000 × 10³ kg/ s B) 11000 x 10° kg/ s 100 hile
Thermal pollution in wastewater. A 1000-MW coal-fired power plant with an efficiency of 35% uses water...
Thermal pollution in wastewater. A 1000-MW coal-fired power plant with an efficiency of 35% uses water from a neighboring stream (with flow of 75 m3/s and 20°C) to carry away waste heat. About 12% of waste heat goes up in the smokestack; the remaining 88% is taken away by cooling water. (a) Calculate the amount of waste heat (inkWorkJ/s) to be removed by cooling water (b) If the cooling water is only allowed to rise in temperature by 11°C, what...
4. A thermonuclear plant produces 940 MW of electric power at 34% efficiency. e plant is situated...
4. A thermonuclear plant produces 940 MW of electric power at 34% efficiency. e plant is situated on a river whose minimum water flow rate is 110 m3/s Temperature of the river water rise when the entire river at its minimum flow is used to cool the power plant by (A) 2°C (B) 4°C (C) 20°c (D) 40 °C. 14 points)
4. A thermonuclear plant produces 940 MW of electric power at 34% efficiency. e plant is situated on a...
A natural-gas-fired steam power plant produces 50 MW of net work while consuming natural gas at a rate of 500 MMBTU/hr (five- hundred million BTUs of heat emitted by the combusting natural gas per hour). (a) Determine the thermal efficiency of this facility (b) Determine the rate of heat rejection from this facility (c) If the flame temperature of the natural gas were 800°C and the heat rejected by the facility was into a nearby lake at 15°C, determine the...
In a large steam power plant, the combustion of coal provides a heat rate of - 2500 MW at a flame temperature of T-1000 K. Heat is rejected from the plant to a river flowing at T. = 300 K. Heat is transferred from the combustion products to the exterior of large tubes in the boiler by way of radiation and convection, through the boiler tubes by conduc- tion, and then from the interior tube surface to the working fluid...
11. A water-cooled electric power plant generates 300 MW of power at an efficiency of 30%. At what rate must water be circulated past the condenser if the change in water temperature is not to exceed 15°C? (The specific heat of water is 4.2 x 10° J/ kg°C) A) 22000 x 10³ kg/ s E) 6000 x 10³ kg/ s 9000 x 103 kg/ s D) C) 33000 × 10³ kg/ s B) 11000 x 10° kg/ s 100 hile
4. A thermonuclear plant produces 940 MW of electric power at 34% efficiency. e plant is situated on a river whose minimum water flow rate is 110 m3/s Temperature of the river water rise when the entire river at its minimum flow is used to cool the power plant by (A) 2°C (B) 4°C (C) 20°c (D) 40 °C. 14 points)
4. A thermonuclear plant produces 940 MW of electric power at 34% efficiency. e plant is situated on a...
