A train's acceleration from rest to driving speed lasts 60 seconds and the braking from driving...

A train's acceleration from rest to driving speed lasts 60 seconds and the braking from driving speed is 120s.
Calculate the distance between the two stations, when the running speed is 90 km / h.

And the running time between the stations is a total of 16 min.

(Answer 22km)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

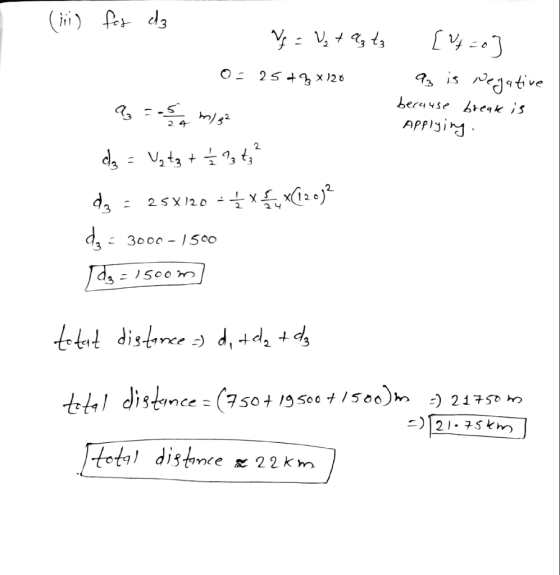

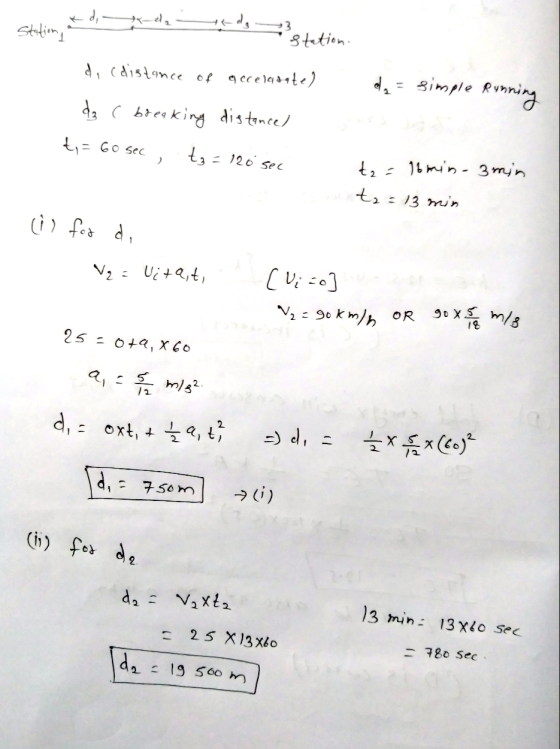

Answer #1

if you are satisfied from my solution then plz like it Thank you

0 0
