A moving block is being pulled up a friction ramp by a rope that is parallel...

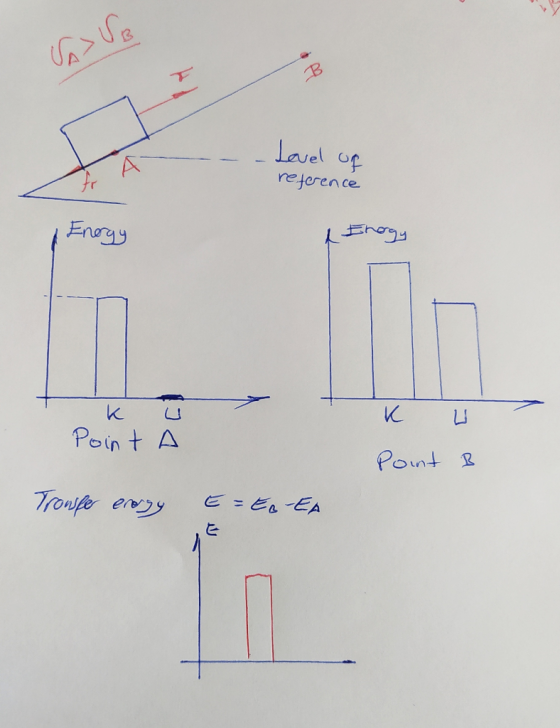

A moving block is being pulled up a friction ramp by a rope that is parallel to the incline. The block moves at an increasing speed from A to B. Draw an energy bar chart for points A and B including an Energy Transfer portion in the middle (5 bars total).

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1


0 0
Add a comment
Know the answer?
Add Answer to:
A moving block is being pulled up a friction ramp by a rope that is parallel...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 6.15 kg block is pulled by a rope up a ramp with an incline of...

    A 6.15 kg block is pulled by a rope up a ramp with an incline of 25 degrees from the horizontal. The acceleration of the block is 2.45 m/s^2. The coefficient of friction between the block and the ramp is 0.266. What is the tension in the rope?

  • Block 1 (20 kg) is pulled by a rope from left to right up a ramp...

    Block 1 (20 kg) is pulled by a rope from left to right up a ramp which is inclined 45 degrees from the horizontal. The rope pulls on block 1 with a force of 360 N parallel to the surface of the inclined plane. The coefficient of kinetic friction between the block and the surface equals 0.2. Assume that the x-axis is parallel to the incline and positive in the direction up the incline. What is the magnitude of the...

  • a) what was the acceleration of the block down the ramp before the rope is pulled?...

    a) what was the acceleration of the block down the ramp before the rope is pulled? b) what was the acceleration of the block down the ramp after the rope is pulled? A4 kg block is released from rest at the top of a frictionless plane of length 9m that is inclined at an angle of 21 degrees to the horizontal Acord is attached to the block and trails along behind it. When the block reaches a point 3 m...

  • Block 1 (20 kg) is pulled by a rope from left to right up a ramp...

    Block 1 (20 kg) is pulled by a rope from left to right up a ramp which is inclined 30 degrees from the horizontal. The rope pulls on block 1 with a force of 220 N parallel to the surface of the inclined plane. The coefficient of kinetic friction between the block and the surface equals 0.1. On a sheet of paper, draw the free body diagram for block 1 using the two-subscript notation from class. Assume that the x-axis...

  • A 2kg block us pulled up a ramp by a constant force parallel to the ramp...

    A 2kg block us pulled up a ramp by a constant force parallel to the ramp of 15N. The ramp is 2m long and inclined at 30 degrees above the horizontal. If the coefficient of kinetic friction between the block and the ramp is 0.30. what is the speed of the block at the top of the ramp?

  • A 4kg block us pulled up a ramp by a constant force parallel to the ramp...

    A 4kg block us pulled up a ramp by a constant force parallel to the ramp of 20N. The ramp is 2m long and inclined at 30 degrees above the horizontal. If the coefficient of kinetic friction between the block and the ramp is 0.10. what is the speed of the block at the top of the ramp?

  • Block 1 (15 kg) is pulled by a rope from left to right up a ramp...

    Block 1 (15 kg) is pulled by a rope from left to right up a ramp which is inclined 45 degrees from the horizontal. The rope pulls on block 1 with a force of 255 N parallel to the surface of the inclined plane. The coefficient of kinetic friction between the block and the surface equals 0.3. On a sheet of paper, draw the free body diagram for block 1 using the two-subscript notation from class. Assume that the x-axis...

  • A 295-kg log is pulled up a ramp by means of a rope that is parallel...

    A 295-kg log is pulled up a ramp by means of a rope that is parallel to the surface of the ramp. The ramp is inclined at 30.0° with respect to the horizontal. The coefficient of kinetic friction between the log and the ramp is 0.850, and the log has an acceleration of 0.800 m/s2. Find the tension in the rope.

  • A 215-kg log is pulled up a ramp by means of a rope that is parallel...

    A 215-kg log is pulled up a ramp by means of a rope that is parallel to the surface of the ramp. The ramp is inclined at 26.3° with respect to the horizontal. The coefficient of kinetic friction between the log and the ramp is 0.905, and the log has an acceleration of 0.685 m/s2. Find the tension in the rope.

  • A 195-kg log is pulled up a ramp by means of a rope that is parallel...

    A 195-kg log is pulled up a ramp by means of a rope that is parallel to the surface of the ramp. The ramp is inclined at 27.2° with respect to the horizontal. The coefficient of kinetic friction between the log and the ramp is 0.865, and the log has an acceleration of 0.899 m/s2. Find the tension in the rope.
