This question is about the min-heap. A min-heap with 10 elements is given in the following...
This question is about the min-heap. A min-heap with 10 elements is given in the following array format. The following three sub-questions all refer to this min-heap
| i | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| A[i] | 11 | 22 | 33 | 44 | 55 | 66 | 77 | 88 | 99 | 100 |

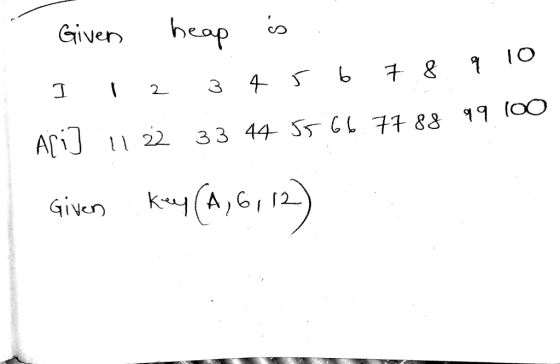

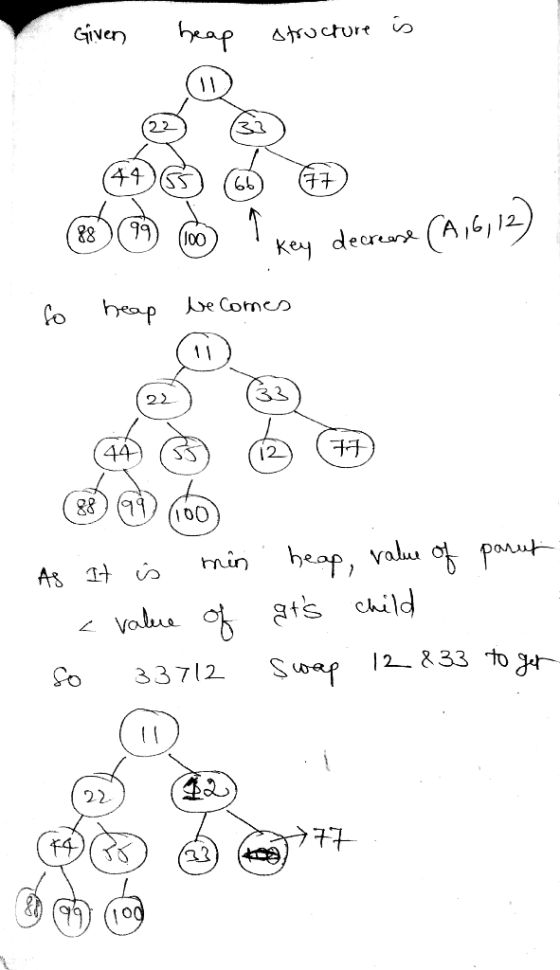

Show the result after applying heap-decrease-key(A, 6, 12) to the min-heap at the top of this page:
| i | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| A[i] |
Show the result after applying heap-extract-min(A) to the min-heap at the top of this page

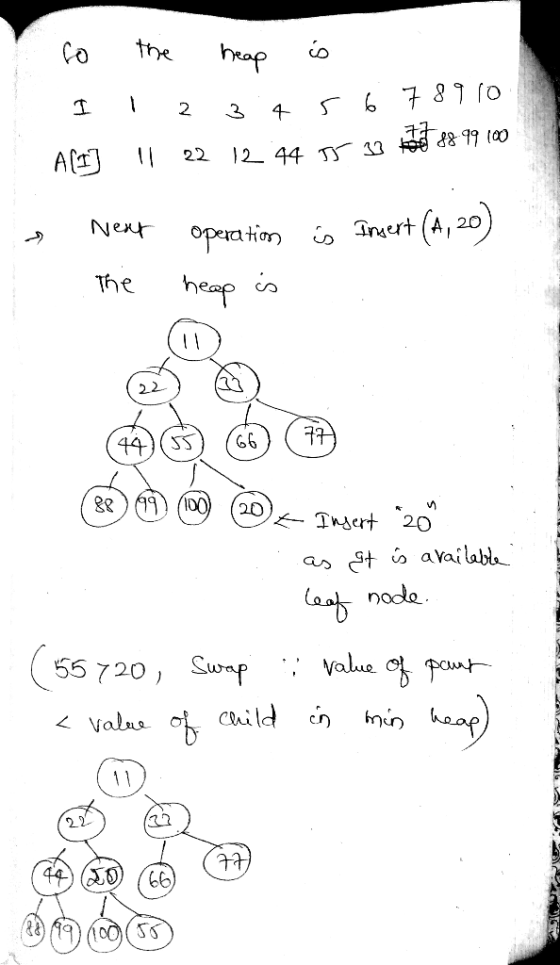

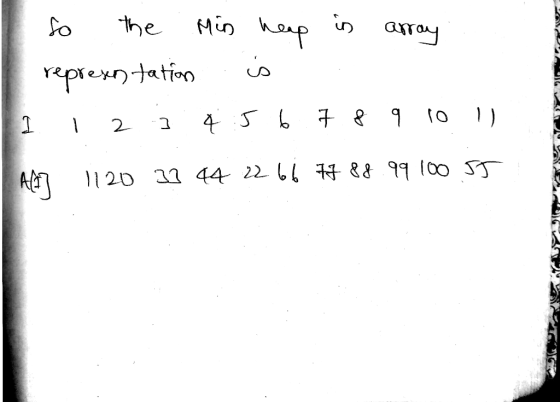

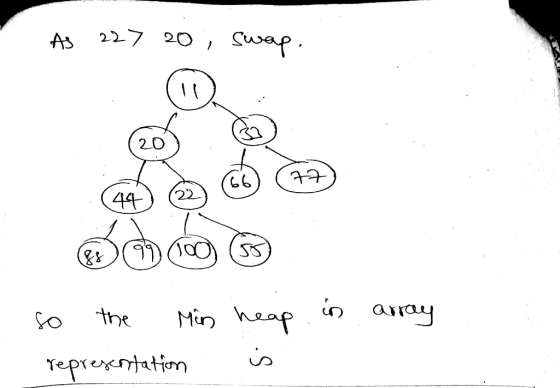

Show the result after applying min-heap-insert(A, 20) to the min-heap at the top of this page
Please provide answer in table form like above
