how much water vapor should be injected to the air to increase the humidity? if the...
Homework Answers
Add Answer to:

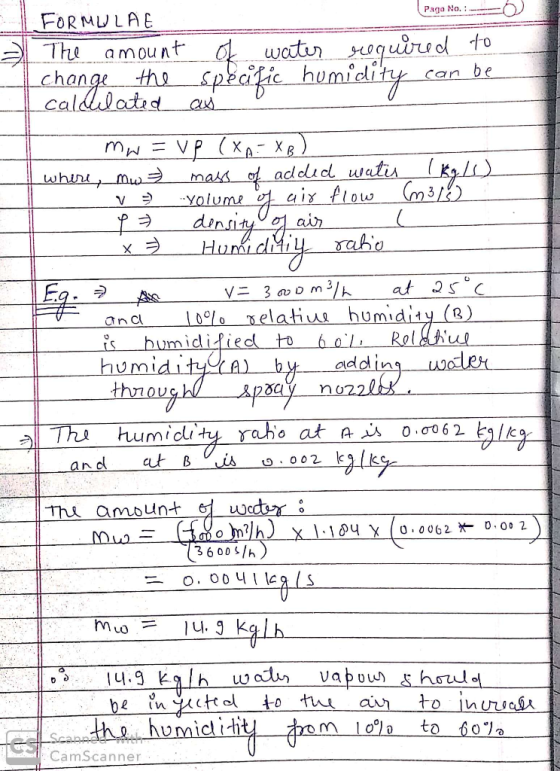

how
much water vapor should be injected to the air to increase the
humidity?
if the...
Humidity is the amount of water vapor in the air at a given time
Humidity is the amount of water vapor in the air at a given time. At warm temperatures, air can hold more moisture than it can at cold temperatures. Relative humidity is the amount of vapor the air is holding expressed as a percentage of the amount the air is capable of holding. For example, at 86 degrees Fahrenheit, air can hold a maximum of 30.4 grams of water per cubic meter. If the air at the same temperature is holding...
1. (relative humidity) The partial pressure of water vapor in air is usually less than the...
1. (relative humidity) The partial pressure of water vapor in air is usually less than the equilibrium vapor pressure (or saturation pressure) at the ambient temperature; this is why a cup of water will spontaneously evaporate. The ratio of the partial pressure of water vapor to the equilibrium vapor pressure (at the same temperature) is called the relative humidity. Saturated air, at 100% relative humidity, would be in equilibrium with a cup of liquid water. The saturation pressure depends strongly...
We are learning about relative humidity. 1st part- what is the water vapor content at 25 degree C air if its relative humidity is 50%? 50=10/20 x 100% gives me the water vapor content of 10g/kg. 2nd p...
We are learning about relative humidity. 1st part- what is the water vapor content at 25 degree C air if its relative humidity is 50%? 50=10/20 x 100% gives me the water vapor content of 10g/kg. 2nd part- If the air was at 25 degree C at sea level, and rises to 1,000 meters, then what will its temperature be? It will drop by 10 degree C, so the temperature will be 15 degrees C. At 15 degree's C the...
15. The relative humidity of air equals the ratio of the partial pressure of water in the air to ...
15. The relative humidity of air equals the ratio of the partial pressure of water in the air to the equilibrium vapor pressure of water at the same temperature times 100%. If the relative humidity of the air is 56% and its temperature is 70°F, how many grams of water are present in a room measuring 15 ft x 10 ft x 11 ft? The vapor pressure of water at 68 °F is 17.54 torr. Show your work
15. The...
1) An air-water vapor mixture at 95°F has a relative humidity of 45%. Calculate the partial...
1) An air-water vapor mixture at 95°F has a relative humidity of 45%. Calculate the partial pressure of the water vapor and its dew-point temperature. (Hint: Psychrometric chart is really useful for this.)
The relative humidity of air equals the ratio of the partial pressure of water in the...
The relative humidity of air equals the ratio of the partial pressure of water in the air to the equilibrium vapor pressure of water at the same temperature times 100%. If the relative humidity of the air is 58% and its temperature is 68 oF , how many moles of water are present in a room measuring 12 ft x 10 ft x 8 ft? The vapor pressure of water at 68 oF is 17.54 torr.
a) Define relative humidity (2 marks) b) Describe the relation between relative humidity, the capacity of...
a) Define relative humidity (2 marks) b) Describe the relation between relative humidity, the capacity of air to hold moisture a ambient temperature. (2 marks) c) Moist air at 22°C and a wet bulb temperature of 9°C enters a steam spray humidifier. The mass flow of the dry air is 90 kg/min. Saturated water vapor at 110 °C is injected into the mixture at a rate of 52 kg/hr. There is no heat transfer with the surroundings, and the pressure...
3. The air in a building is to be maintained at 25°C and 55% relative humidity...
3. The air in a building is to be maintained at 25°C and 55% relative humidity by passing outside air through a water spray. The air enters the spray chamber at 32°C and 70% relative humidity, leaves the chamber cooled and saturated with water vapor, and is then reheated to 25°C. Estimate the temperature of the air leaving the spray chamber and the water (kg) added to or removed from (specify which) each kilogram of dry air processed
absolute humidity at atmospheric pressure at 27 C is 0.011 kg water / dry air determine:...
absolute humidity at atmospheric pressure at 27 C is 0.011 kg water / dry air determine: a. water vapor partial pressure (kPa) b. relative humidity (%) c. dew point temperature (C)
a. Calculate the dry air and water vapor mass flow rates (lb/min) if the volume flow...
a. Calculate the dry air and water vapor mass flow rates (lb/min) if the volume flow rate is 1,000 cfm, the humidity ratio is 0.025 lbv/lba, and the dry air density is 0.072 Iba/ft3. b. Assume the above air enters an evaporator coil at 90°F where it is cooled in a constant humidity ratio process until reaching the 100 % RH curve ( the temperature at that point is the dew point. The air then keeps dropping in temperature, following...
1. (relative humidity) The partial pressure of water vapor in air is usually less than the equilibrium vapor pressure (or saturation pressure) at the ambient temperature; this is why a cup of water will spontaneously evaporate. The ratio of the partial pressure of water vapor to the equilibrium vapor pressure (at the same temperature) is called the relative humidity. Saturated air, at 100% relative humidity, would be in equilibrium with a cup of liquid water. The saturation pressure depends strongly...
15. The relative humidity of air equals the ratio of the partial pressure of water in the air to the equilibrium vapor pressure of water at the same temperature times 100%. If the relative humidity of the air is 56% and its temperature is 70°F, how many grams of water are present in a room measuring 15 ft x 10 ft x 11 ft? The vapor pressure of water at 68 °F is 17.54 torr. Show your work
15. The...
1) An air-water vapor mixture at 95°F has a relative humidity of 45%. Calculate the partial pressure of the water vapor and its dew-point temperature. (Hint: Psychrometric chart is really useful for this.)
a) Define relative humidity (2 marks) b) Describe the relation between relative humidity, the capacity of air to hold moisture a ambient temperature. (2 marks) c) Moist air at 22°C and a wet bulb temperature of 9°C enters a steam spray humidifier. The mass flow of the dry air is 90 kg/min. Saturated water vapor at 110 °C is injected into the mixture at a rate of 52 kg/hr. There is no heat transfer with the surroundings, and the pressure...
3. The air in a building is to be maintained at 25°C and 55% relative humidity by passing outside air through a water spray. The air enters the spray chamber at 32°C and 70% relative humidity, leaves the chamber cooled and saturated with water vapor, and is then reheated to 25°C. Estimate the temperature of the air leaving the spray chamber and the water (kg) added to or removed from (specify which) each kilogram of dry air processed
a. Calculate the dry air and water vapor mass flow rates (lb/min) if the volume flow rate is 1,000 cfm, the humidity ratio is 0.025 lbv/lba, and the dry air density is 0.072 Iba/ft3. b. Assume the above air enters an evaporator coil at 90°F where it is cooled in a constant humidity ratio process until reaching the 100 % RH curve ( the temperature at that point is the dew point. The air then keeps dropping in temperature, following...
