A 300-mm-diameter pipe carries a flow of 50 L/s. Compute the velocity of flow in m/s.
A 300-mm-diameter pipe carries a flow of 50 L/s. Compute the velocity of flow in m/s.
Homework Answers

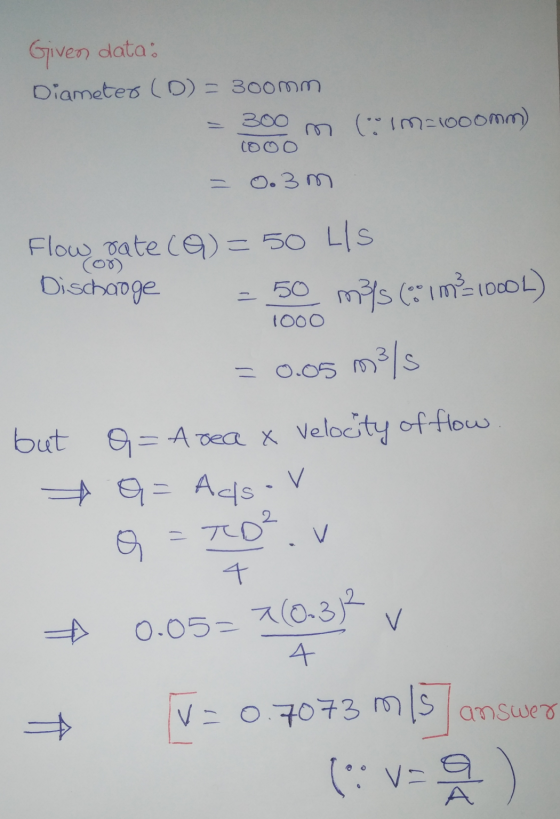

velocity of the flow is 0.7073
m/sAdd Answer to:
