A round rod made of A36 steel is pulled with a 90,000 # of force. What...

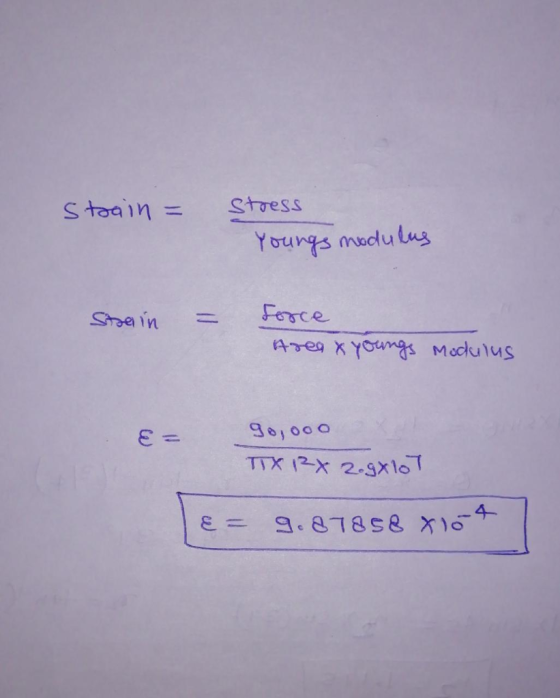

A round rod made of A36 steel is pulled with a 90,000 # of force. What is the strain?
Young's modulus (E) for A36 steel is 29000000 #/in².
The radius of the rod is 1".
Homework Answers
Add Answer to:
A round rod made of
A36 steel is pulled with a 90,000 # of force. What...
4. An Am1004-T61 magnesium tube is bonded to a central A36 steel rod. Sketch and label...
4. An Am1004-T61 magnesium tube is bonded to a central A36 steel rod. Sketch and label the shear stress distribution across 900 mm the entire radius of the composite member when a torque of 4.8 kN m is applied. Sketch the corresponding shear strain distribution 80 mm 40 mm
All truss members are made with A36 steel having YP- 250MPa. If the truss is subjected...
All truss members are made with A36 steel having YP- 250MPa. If the truss is subjected to the loads as shown, determine a) the force developed in members, df, dg, and eg. b) the cross sectional area of member df in mm2 at FS-1.7 against YP. d) the elongation and strain of member df only (A36 steel, E-200GPa). f d a 4kN 4kN 2kN 3 panels at 4m = 12m Explain → Cut through joint "g" and take moment at...
4. An Am1004-T61 magnesium tube is bonded to a central A36 steel rod. Sketch and label...
4. An Am1004-T61 magnesium tube is bonded to a central A36 steel rod. Sketch and label the shear stress distribution across the entire radius of the composite member when a torque of 4.8 kN-m is applied. Sketch the corresponding shear strain distribution. 900 mm 80 mimA 40 mm 80 mm4 40 mm 5. For the composite member of Problem 4, assume that both materials are perfectly plastic once they yield. Furthermore, assume that the shear yield stress of the magnesium...
1. A 520 mm long and 3.3 mm diameter mild steel rod undergoes a stress test....
1. A 520 mm long and 3.3 mm diameter mild steel rod undergoes a stress test. A tensile force of 30200 N is applied and the rod extends by 0.05 mm. (i) Calculate the nominal stress. (ii) Calculate the nominal strain. (iii) Calculate Young's Modulus. (Answer format: Standard form, No thousands separator, Two decimals, Optional Unit if any)
A composite rod is made up of typical structural steel (on the inside) and high strength...
A composite rod is made up of typical structural steel (on the inside) and high strength steel (on the outside). Both steels (in fact all steels) have the same elastic shear modulus G- 80 GPa. The normal steel (inside) has a shear yield stress of 240 MPa. The high strength steel (outside) has a shear yield stress of 480 MPa. The rod is torqued so that the perimeter reaches a shear strain of 0.006. (a) Draw the strain diagram. (b...
Asap 1. The bracket is made of steel (Young's modulus 200 GPa; Poisson's ratio 0.3). When the force P is applied to the bracket, the gages in the strain rosette at point A have the followi...
Asap
1. The bracket is made of steel (Young's modulus 200 GPa; Poisson's ratio 0.3). When the force P is applied to the bracket, the gages in the strain rosette at point A have the following readings: E.-60 μ . Ep 135 μ l, and E.-264 μ (a) Determine the shear strain at point A. (b) Determine the orientation of the principal plane, the in-plane principal strains, the maximum in-plane shear strain, and the average in-plane normal strain. Determine the...
Rod ABC is made of a steel for which the yield strength is oy= 450 MPa...
Rod ABC is made of a steel for which the yield strength is oy= 450 MPa and the modulus of elasticity is E-200 GPa. Knowing that a strain energy of 11.2 J must be acquired by the rod as the axial load P is applied, determine the factor of safety of the rod with respect to permanent deformation when a -0.3 m. 18-mm diameter 12-mm diameter The factor of safety of the rod with respect to permanent deformation is
A rod system consists of two parts of steel A36 that are connected to pins. Each...
A rod system consists of two parts of steel A36 that are
connected to pins. Each part has a cross section of 1000 mm².
Determine how large the force P must be to move point A down 0.625
mm. (E = 200 GPa)
Answer: P = 213.3 kN
0,6 m -0,45 m-te-0,45 m-
The 1.25" diameter steel rod is subjected to the load shown. Determine the state of stress...
The 1.25" diameter steel rod is subjected to the load shown. Determine the state of stress at point D (located at the top of the rod and on the z-axis), determine the associated strains. Let F = 12 lb and 0 = 45°. The force F is acting in a plane parallel to the x-y plane. Shear modulus of elasticity: G = 11.2 x 106 psi Young's modulus: E = 29.0 x 106 psi 1.25 in 3 in.
Problem 3: Composite moduli Composites are materials that are composed of two or more distinct composed...
Problem 3: Composite moduli Composites are materials that are composed of two or more distinct composed of two materials with Young's modulus E, (top and bottom components) and Eb (center component), and where 0 < λ < 1. HAL (1-A)L AL Ex (3a) Suppose that the material is subjected to an average stress σχ along the x direction resulting in a strain Ex as shown in the center figure above. Find the effective Young's modulus Eer (in terms of E....
4. An Am1004-T61 magnesium tube is bonded to a central A36 steel rod. Sketch and label the shear stress distribution across 900 mm the entire radius of the composite member when a torque of 4.8 kN m is applied. Sketch the corresponding shear strain distribution 80 mm 40 mm
All truss members are made with A36 steel having YP- 250MPa. If the truss is subjected to the loads as shown, determine a) the force developed in members, df, dg, and eg. b) the cross sectional area of member df in mm2 at FS-1.7 against YP. d) the elongation and strain of member df only (A36 steel, E-200GPa). f d a 4kN 4kN 2kN 3 panels at 4m = 12m Explain → Cut through joint "g" and take moment at...
4. An Am1004-T61 magnesium tube is bonded to a central A36 steel rod. Sketch and label the shear stress distribution across the entire radius of the composite member when a torque of 4.8 kN-m is applied. Sketch the corresponding shear strain distribution. 900 mm 80 mimA 40 mm 80 mm4 40 mm 5. For the composite member of Problem 4, assume that both materials are perfectly plastic once they yield. Furthermore, assume that the shear yield stress of the magnesium...
A composite rod is made up of typical structural steel (on the inside) and high strength steel (on the outside). Both steels (in fact all steels) have the same elastic shear modulus G- 80 GPa. The normal steel (inside) has a shear yield stress of 240 MPa. The high strength steel (outside) has a shear yield stress of 480 MPa. The rod is torqued so that the perimeter reaches a shear strain of 0.006. (a) Draw the strain diagram. (b...
Asap
1. The bracket is made of steel (Young's modulus 200 GPa; Poisson's ratio 0.3). When the force P is applied to the bracket, the gages in the strain rosette at point A have the following readings: E.-60 μ . Ep 135 μ l, and E.-264 μ (a) Determine the shear strain at point A. (b) Determine the orientation of the principal plane, the in-plane principal strains, the maximum in-plane shear strain, and the average in-plane normal strain. Determine the...
Rod ABC is made of a steel for which the yield strength is oy= 450 MPa and the modulus of elasticity is E-200 GPa. Knowing that a strain energy of 11.2 J must be acquired by the rod as the axial load P is applied, determine the factor of safety of the rod with respect to permanent deformation when a -0.3 m. 18-mm diameter 12-mm diameter The factor of safety of the rod with respect to permanent deformation is
A rod system consists of two parts of steel A36 that are
connected to pins. Each part has a cross section of 1000 mm².
Determine how large the force P must be to move point A down 0.625
mm. (E = 200 GPa)
Answer: P = 213.3 kN
0,6 m -0,45 m-te-0,45 m-
The 1.25" diameter steel rod is subjected to the load shown. Determine the state of stress at point D (located at the top of the rod and on the z-axis), determine the associated strains. Let F = 12 lb and 0 = 45°. The force F is acting in a plane parallel to the x-y plane. Shear modulus of elasticity: G = 11.2 x 106 psi Young's modulus: E = 29.0 x 106 psi 1.25 in 3 in.
Problem 3: Composite moduli Composites are materials that are composed of two or more distinct composed of two materials with Young's modulus E, (top and bottom components) and Eb (center component), and where 0 < λ < 1. HAL (1-A)L AL Ex (3a) Suppose that the material is subjected to an average stress σχ along the x direction resulting in a strain Ex as shown in the center figure above. Find the effective Young's modulus Eer (in terms of E....
