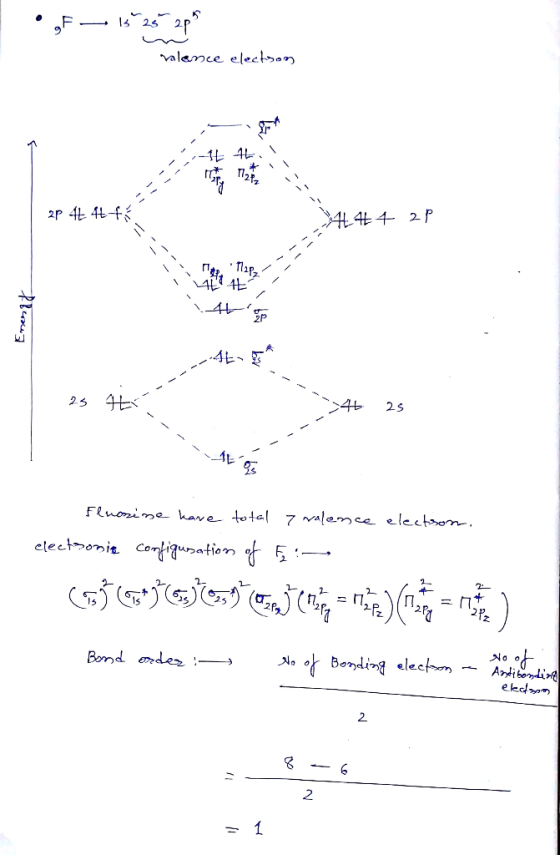

Construct an approximate molecular orbital energy diagram for homonuclear diatomic F2. Considering only the valence atomic...
Construct an approximate molecular orbital energy diagram for
homonuclear diatomic F2.
Considering only the valence atomic orbitals on fluorine. Show the
sigma and pi interaction between orbitals of
the same symmetry and then rank these on your diagram in terms of
increasing energy (be sure to draw pictures
of the orbital interactions or the final MOs). Write out the
electron configuration and determine the bond order
of F2.
Homework Answers
