The internal energy of a certain ideal gas is given by the experssion U=850+0.529pv btu/lb where...

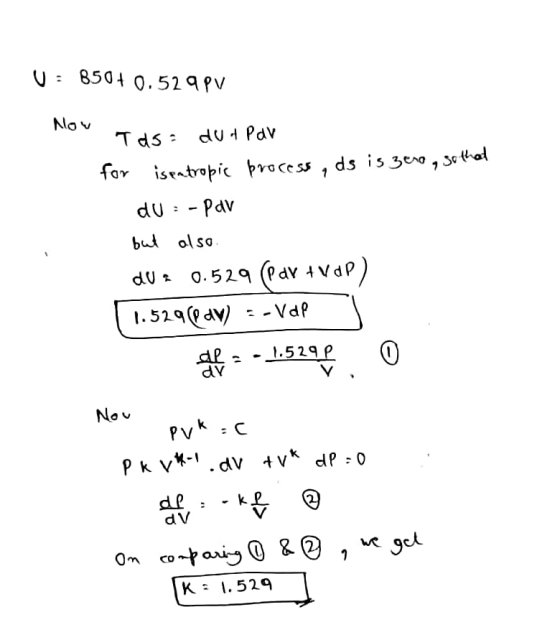

The internal energy of a certain ideal gas is given by the experssion U=850+0.529pv btu/lb where p is in psia. determine the exponent k in pv^k=C for this gas undergoing an isentropic process.
Homework Answers
Add Answer to:
The internal energy of a certain ideal gas is given by the
experssion U=850+0.529pv btu/lb where...
A gas undergoes a process from state 1, where p1 = 60 lbf/in.2, v1 = 6.0...
A gas undergoes a process from state 1, where p1 = 60 lbf/in.2, v1 = 6.0 ft3/lb, to state 2 where p2 = 85.1 lbf/in.2, according to pv1.3 = constant. The relationship between pressure, specific volume, and internal energy is u = (0.2651)pv - 95.436 where p is in lbf/in.2, v is in ft3/lb, and u is in Btu/lb. The mass of gas is 10 lb. Neglecting kinetic and potential energy effects, determine the heat transfer, in Btu. Entry field...
(3) Show, that for an ideal gas undergoing an isentropic process, P㎡ = Pp , where...
(3) Show, that for an ideal gas undergoing an isentropic process, P㎡ = Pp , where k is the Heat Capacity ratio. P and v denote the pressure and volume respectively. (18 points)
What is the maximum work (in Btu/lb) obtainable from an adiabatic expansion of ethylene gas through...
What is the maximum work (in Btu/lb) obtainable from an adiabatic expansion of ethylene gas through a turbine from 1000 psia and 340 F to a pressure of 100 psia. Draw the process path on a T-S diagram. a) Assume NON-IDEAL behaviour and use the generalized Charts/Tables. Use Tables of Property Departure.
Learning Goal Internal Energy of an ideal gas The internal energy of a system is the...
Learning Goal Internal Energy of an ideal gas The internal energy of a system is the energy stored in the system. In an ideal gas, the internal energy includes the kinetic energies (translational and rotational) of all the molecules, and other energies due to the interactions among the molecules. The internal energy is proportional to the Absolute Temperature T and the number of moles n (or the number of molecules N). n monatomic ideal gases, the interactions among the molecules...
The internal energy of an ideal gas can be derived using statistical mechanics as U=U(S,V)=αNkB(N/V)2/3 e2S/3NkB...
The internal energy of an ideal gas can be derived using statistical mechanics as U=U(S,V)=αNkB(N/V)2/3 e2S/3NkB where α is a constant. Show that this expression leads to the equation of state for an ideal gas pV = NkBT. (What is dU?)
A gas is compressed by a piston in a cylinder from an initial pressure of 10...
A gas is compressed by a piston in a cylinder from an initial pressure of 10 psia, initial volume at 40 ft^3 to a final pressure of 20 psia. During the compression process, the product pV remains constant. If the change in internal energy to the gas is 10 Btu, determine the amount of heat transferred from the system. (1 Btu = 778.17 ft-lbf)
Internal Energy of a gas, ldeal Gas Law 1. The average kinetic energy of a molecule,...
Internal Energy of a gas, ldeal Gas Law 1. The average kinetic energy of a molecule, is called thermal energy, it is directly related to absolute temperature. 1 3 KE (average per molecule) mv(average) =kT (kg =1.38x10-23 J/K) 3KBT 2. The average speed of molecules in a gas: vrms+ т where vrms stands for root-mean-square (rms) speed. 3. The INTERNAL ENERGY of a gas is the TOTAL ENERGY of ALL the N atoms and molecules For a MONATOMIC gas, each...
(a) One mole of a monoatomic van der Waals gas obeys the equation of state A3. ) (V-b)=RT (p+ and its internal energy is expressed as U CvT where Cv is the molar isochoric heat capacity of an ideal g...
(a) One mole of a monoatomic van der Waals gas obeys the equation of state A3. ) (V-b)=RT (p+ and its internal energy is expressed as U CvT where Cv is the molar isochoric heat capacity of an ideal gas. The gas is initially at pressure p and volume V (i) Explain the physical meaning of the parameters a and b in the equation of state of the gas (ii) Write down the equation that defines entropy in thermodynamics. Define...
4 points In the pV diagram below, an ideal gas returns to its initial state after...
4 points In the pV diagram below, an ideal gas returns to its initial state after undergoing a cyclic process. The change in thermal or internal energy for one cycle of this process is A negative positive Ozero D.cannot be determined from the information given
Question 3 9 pts A gas has a specific heat at constant pressure of c-0.490 Btu/lb Btu/lbm. R. Det...
Question 3 9 pts A gas has a specific heat at constant pressure of c-0.490 Btu/lb Btu/lbm. R. Determine the molecular weight of this gas R and a specific heat at constant volume of c 0270 MW 1545 R-cJ (k-1)
Question 3 9 pts A gas has a specific heat at constant pressure of c-0.490 Btu/lb Btu/lbm. R. Determine the molecular weight of this gas R and a specific heat at constant volume of c 0270 MW 1545 R-cJ (k-1)
(3) Show, that for an ideal gas undergoing an isentropic process, P㎡ = Pp , where k is the Heat Capacity ratio. P and v denote the pressure and volume respectively. (18 points)
Learning Goal Internal Energy of an ideal gas The internal energy of a system is the energy stored in the system. In an ideal gas, the internal energy includes the kinetic energies (translational and rotational) of all the molecules, and other energies due to the interactions among the molecules. The internal energy is proportional to the Absolute Temperature T and the number of moles n (or the number of molecules N). n monatomic ideal gases, the interactions among the molecules...
Internal Energy of a gas, ldeal Gas Law 1. The average kinetic energy of a molecule, is called thermal energy, it is directly related to absolute temperature. 1 3 KE (average per molecule) mv(average) =kT (kg =1.38x10-23 J/K) 3KBT 2. The average speed of molecules in a gas: vrms+ т where vrms stands for root-mean-square (rms) speed. 3. The INTERNAL ENERGY of a gas is the TOTAL ENERGY of ALL the N atoms and molecules For a MONATOMIC gas, each...
(a) One mole of a monoatomic van der Waals gas obeys the equation of state A3. ) (V-b)=RT (p+ and its internal energy is expressed as U CvT where Cv is the molar isochoric heat capacity of an ideal gas. The gas is initially at pressure p and volume V (i) Explain the physical meaning of the parameters a and b in the equation of state of the gas (ii) Write down the equation that defines entropy in thermodynamics. Define...
4 points In the pV diagram below, an ideal gas returns to its initial state after undergoing a cyclic process. The change in thermal or internal energy for one cycle of this process is A negative positive Ozero D.cannot be determined from the information given
Question 3 9 pts A gas has a specific heat at constant pressure of c-0.490 Btu/lb Btu/lbm. R. Determine the molecular weight of this gas R and a specific heat at constant volume of c 0270 MW 1545 R-cJ (k-1)
Question 3 9 pts A gas has a specific heat at constant pressure of c-0.490 Btu/lb Btu/lbm. R. Determine the molecular weight of this gas R and a specific heat at constant volume of c 0270 MW 1545 R-cJ (k-1)
