Write out a table with signed binary numbers from 00002 to 11112 in one column and...

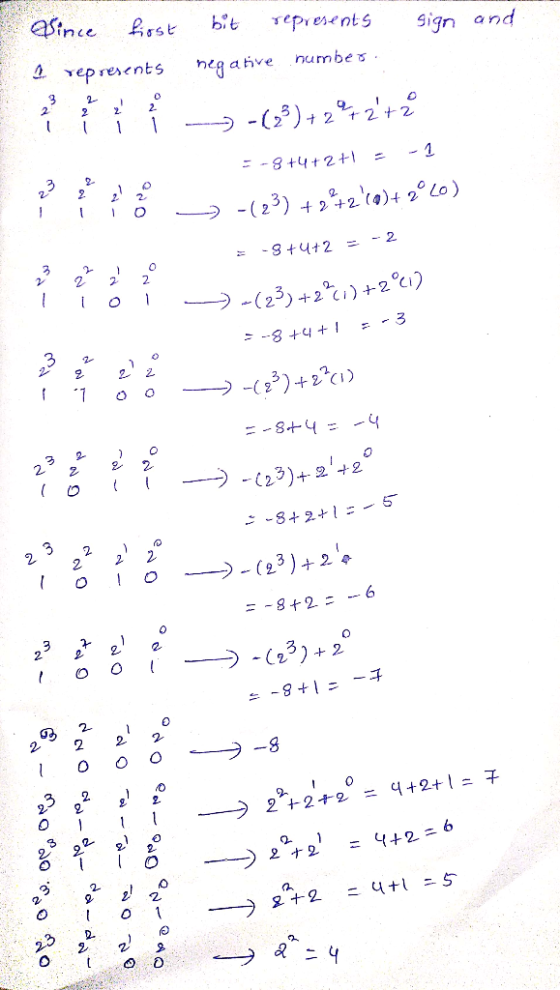

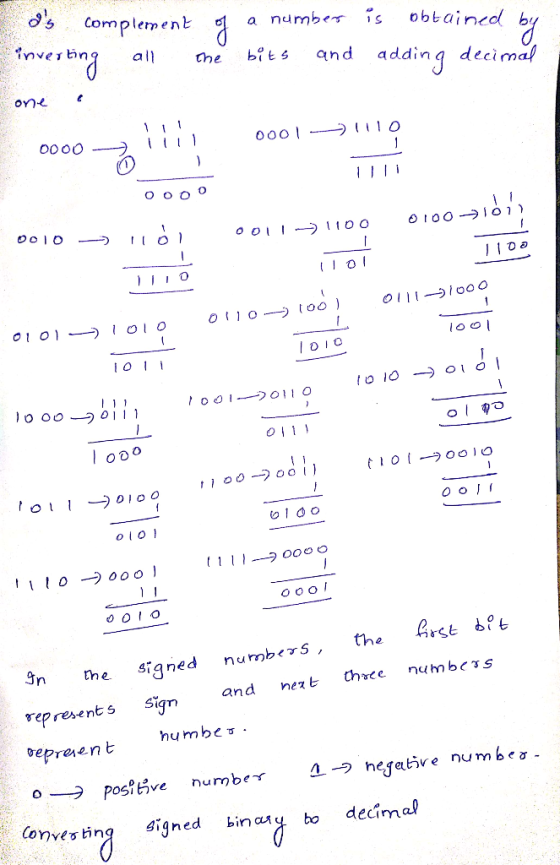

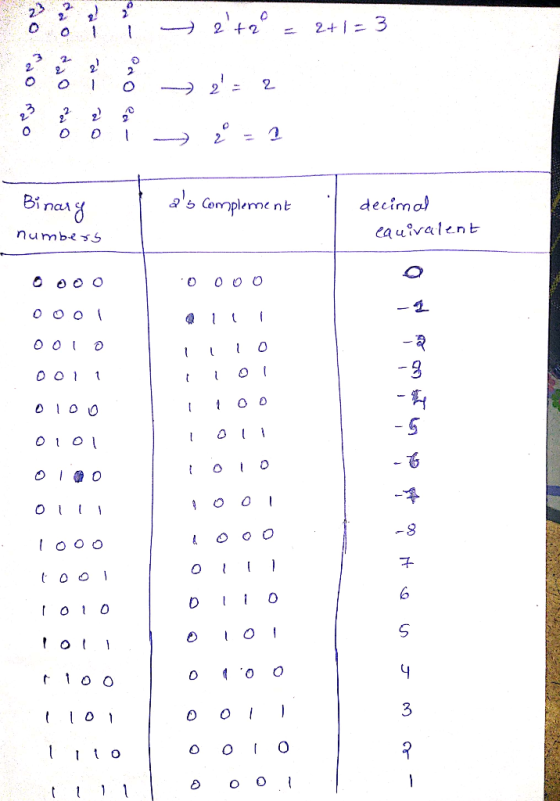

Write out a table with signed binary numbers from 00002 to 11112 in one column and write the 2's complement of the numbers in the second column. In the third column write the signed decimal value of the numbers from the second column. Assume the MSB(Most Significant Bit) of the numbers in the first two columns is the sign bit (0= positive, 1= negative).
Please Solve with Full steps
Thank You.
