1.0 mC charges are located at (0., 0.), (1.0, 0.0) and (1.0, 1.0), where all dimensions...

1.0 mC charges are located at (0., 0.), (1.0, 0.0) and (1.0, 1.0), where all dimensions are in meters. Determine the magnitude and direction of the electric field due to these charges at the point (0.0, 1.0). Draw a picture.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

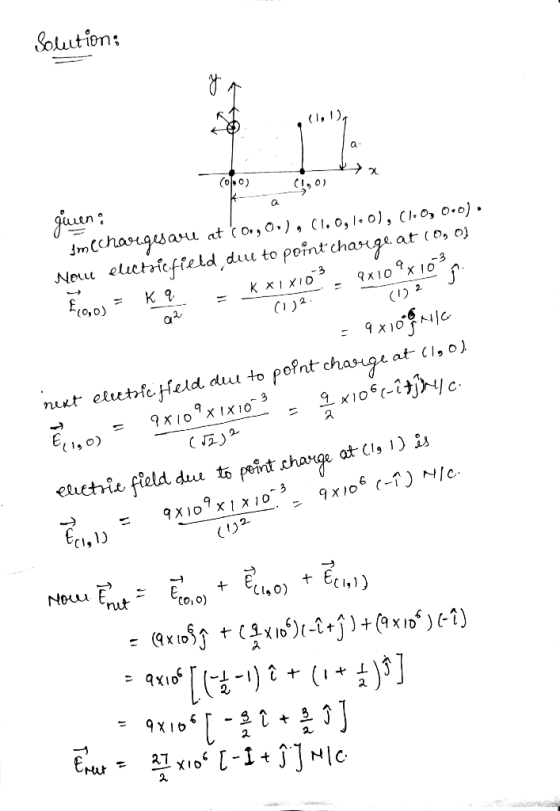

Answer #1

0 0
Add a comment
