A parallel-plate capacitor is formed from two 6.6 cm-diameter electrodes spaced 2.7 mm apart. The electric...

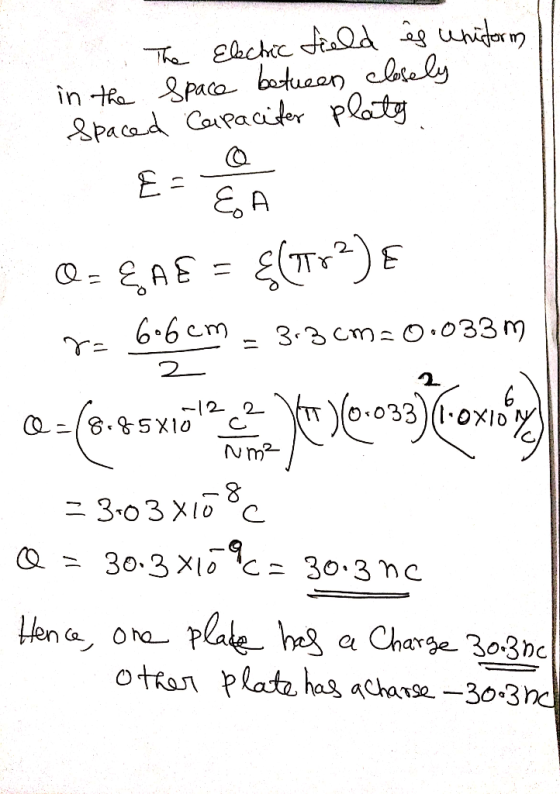

A parallel-plate capacitor is formed from two 6.6 cm-diameter electrodes spaced 2.7 mm apart. The electric field strength inside the capacitor is 1.0×10^6 N/C.
Homework Answers
Add Answer to:
A parallel-plate capacitor is formed from two 6.6 cm-diameter
electrodes spaced 2.7 mm apart. The electric...
A parallel-plate capacitor is formed from two 9.4 cm -diameter electrodes spaced 1.2 mm apart. The...
A parallel-plate capacitor is formed from two 9.4 cm -diameter electrodes spaced 1.2 mm apart. The electric field strength inside the capacitor is 4.0 ×10^6 N/C. What is the charge (in nC) on each electrode?
A parallel-plate capacitor is formed from two 6.0-cm-diameter electrodes spaced 2.0 mm apart. The electric field...
A parallel-plate capacitor is formed from two 6.0-cm-diameter electrodes spaced 2.0 mm apart. The electric field strength inside the capacitor is 1.0*10^6 N/C. What is the charge (in nC) on each electrode? Please show -all- steps for the derivation. The correct answer should be 25 nC and -25 nC
A parallel-plate capacitor is formed from two 4.1 cm-diameter electrodes spaced 1.1 mm apart. The electric...
A parallel-plate capacitor is formed from two 4.1 cm-diameter electrodes spaced 1.1 mm apart. The electric field strength inside the capacitor is 4.0×106N/C.
A parallel-plate capacitor is formed from two 4.4 cm -diameter electrodes spaced 3.0 mm apart. The...
A parallel-plate capacitor is formed from two 4.4 cm -diameter electrodes spaced 3.0 mm apart. The electric field strength inside the capacitor is 2.0 ×10^6N/C. What is the charge on the electrodes?
A parallel-plate capacitor is formed from two 4.5 cm -diameter electrodes spaced 2.1 mm apart. The...
A parallel-plate capacitor is formed from two 4.5 cm -diameter electrodes spaced 2.1 mm apart. The electric field strength inside the capacitor is 6.0 ×10^6 N/C. What is the charge (in nC) on each electrode? Express your answer using two significant figures.
A parallel-plate capacitor is formed from two 1.5 cm -diameter electrodes spaced 2.2 mm apart.
A parallel-plate capacitor is formed from two 1.5 cm -diameter electrodes spaced 2.2 mm apart. The electric field strength inside the capacitor is 4.0 times 10^6 N/C. What is the charge (in nC) on each electrode? Express your answer using two significant figures.
A parallel-plate capacitor is formed from two 1.9 cm -diameter electrodes spaced 2.8 mm apart
A parallel-plate capacitor is formed from two 1.9 cm -diameter electrodes spaced 2.8 mm apart. The electric field strength inside the capacitor is 6.0 × 10^{6} N / CYou may want to review (Pages 644-645).Part AWhat is the charge (in nC ) on each electrode?
A parallel-plate capacitor is formed from two 6.1 cm-diameter electrodes spaced 2.2 mm apart. The electric...
A parallel-plate capacitor is formed from two 6.1 cm-diameter electrodes spaced 2.2 mm apart. The electric field strength inside the capacitor is 6.0×106N/C. What is the magnitude of the charge (in nC) on each electrode?
A parallel-plate capacitor is formed from two 1.4 cm-diameter electrodes spaced 1.5 mm apart. The electric...
A parallel-plate capacitor is formed from two 1.4 cm-diameter electrodes spaced 1.5 mm apart. The electric field strength inside the capacitor is 5.0×106N/C. What is the magnitude of the charge (in nC) on each electrode?
A parallel-plate capacitor is formed from two 6.8 cm-diameter electrodes spaced 1.2 mm apart. The electric...
A parallel-plate capacitor is formed from two 6.8 cm-diameter electrodes spaced 1.2 mm apart. The electric field strength inside the capacitor is 4.0×10^6N/C. What is the magnitude of the charge (in nC) on each electrode? Express your answer in nanocoulombs.
