   A   200   N   block   is   pulled   1.50   m   along   a   horizontal   table   by   an   applied&nbsp

   A   200   N   block   is   pulled   1.50   m   along   a   horizontal   table   by   an   applied   force   of   80.0   N.       The   friction   force   acts   on   it   is   25.0   N.       Find   the
   a)   Normal   force   acts   on   the   block.           Ans:       R   =   __________,   ____

b)   Net   force   acts   on   the   block.       Ans:       Fnet   =   ________,   ____


   c)   Work   done   by


           Wapplied       =   _____,   ____________,   _____
           Wfriction       =   _____,   ____________,   _____
           Wgravity       =   _____,   ____________,   _____
           Wnormal       =   _____,   ____________,   _____
           Wall       =   _____,   ____________,   _____
           Wnet       =   _____,   ____________,   _____

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

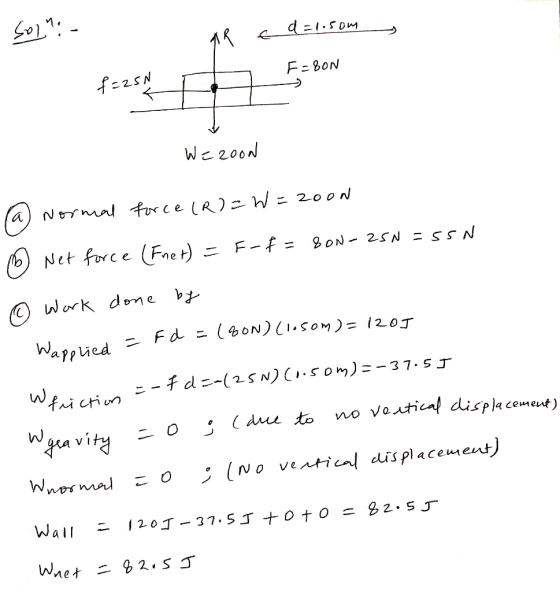

Answer #1
