A block of mass 2.50 kg is pushed 2.20 m along a frictionless horizontal table by a constant 10.0 N force directed 25.0° below the horizontal


A block of mass 2.50 kg is pushed 2.20 m along a frictionless horizontal table by a constant 10.0 N force directed 25.0° below the horizontal. Determine the work done by the applied force.


(a) 51.9 J (b) 19.9 J (c) 93.4J (d) 31.4J (e) 1.19J

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

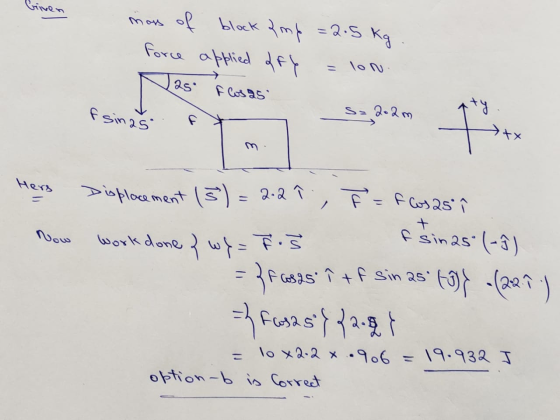

This problem is based on work as explained below...

0 0
