For ∑ = {a, b}, construct a dfa that accepts the set consisting of all strings...

Question

Question

For ∑ = {a, b}, construct a dfa that accepts the set consisting of all strings with at least one b and exactly two a’s

engineering Computer-Science

Answer 1

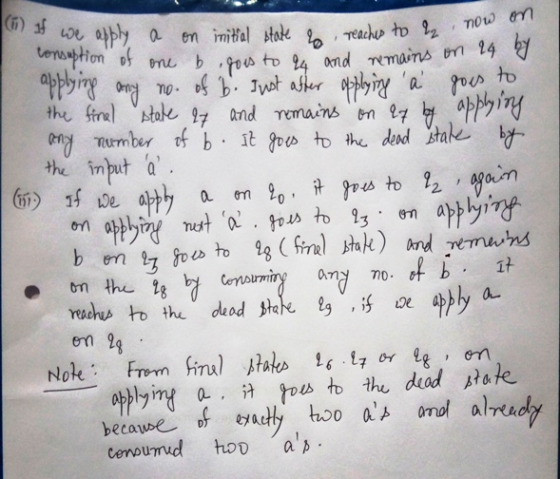

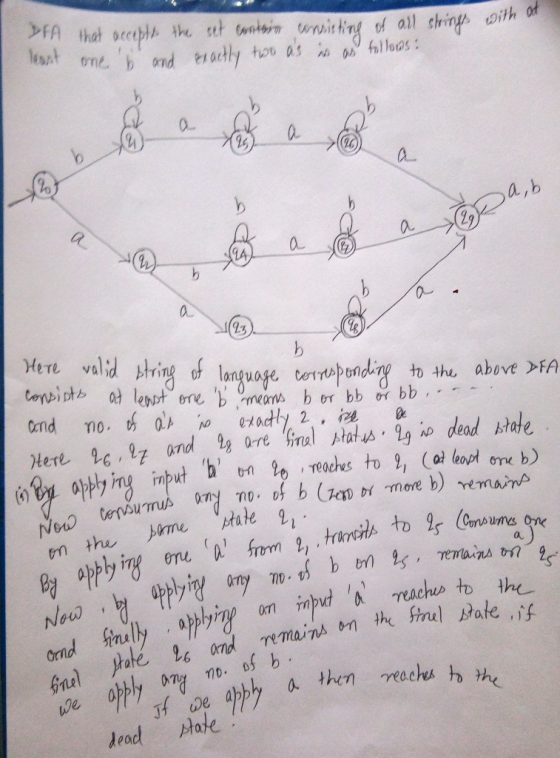

Answer #1

Answer 2
