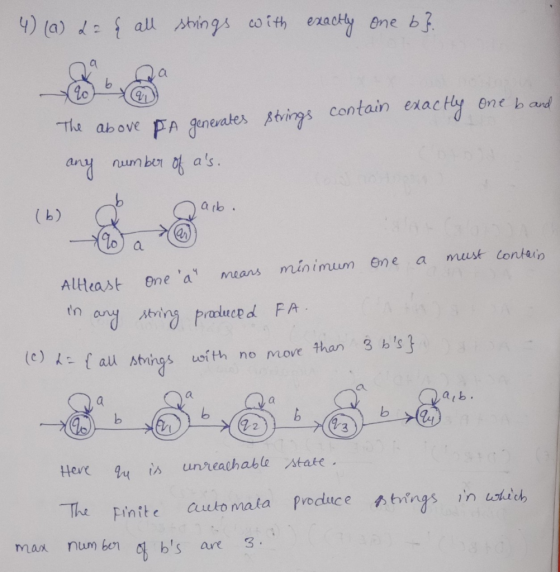

4) For the alphabet S={a, b}, construct an FA that accepts the following languages. Show all of your work.

(a) L = {all strings with exactly one b}.

(b) L = {all strings with at least one a}.

(c) L = {all strings with no more than three b's}.

engineering Computer-Science

Answer 1

Answer #1
