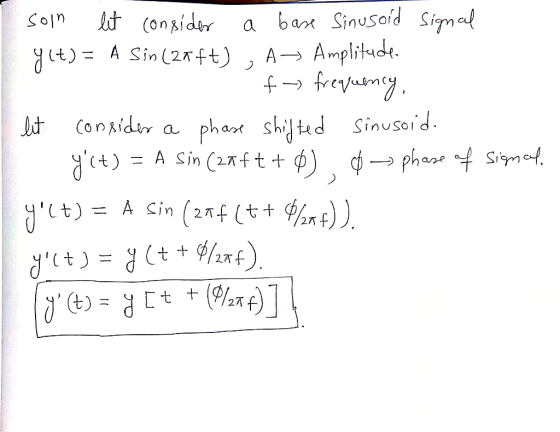

How does the phase of a sinusoidal signal be represented through the time shift of a...
How does the phase of a sinusoidal signal be represented through the time shift of a base sinusoid with zero phases and the same amplitude and frequency?
Homework Answers
Add Answer to:
How does the phase of a sinusoidal signal be represented through
the time shift of a...
Consider a sinusoidal signal?(?) = ? cos(?0? + ?). Here ?0 is the angular frequency of the signal and ? is the initial phase shift.
Consider a sinusoidal signal?(?) = ? cos(?0? + ?). Here ?0 is the angular frequency of the signal and ? is the initial phase shift.a) Draw the time domain signal. (10 Marks) b) Given that the Fourier transform pair is ? ??? ℱ ↔ 2??(? − ?), find the Fourier Transform ?(?) of ?(?). Here ?(?) is the direct delta function. (12 Marks) c) Draw the Magnitude and phase spectrums of ?(?). (8 Marks) d) Find the Fourier Transform of ?(?) = ?(?)?(?)...
A sinusoidal signal is determined by its frequency, amplitude and phase. Can you retrieve all this...
A sinusoidal signal is determined by its frequency, amplitude and phase. Can you retrieve all this information from the sampled signal?
1. A sinusoidal current signal has amplitude of 10 amp and frequency of 60 Hz and...
1. A sinusoidal current signal has amplitude of 10 amp and frequency of 60 Hz and phase angle of 0. (a) Express the current in mathematical form. (b) When it passes through an electric circuit, the voltage signal gets an amplitude of 20 volt and a phase delay of 45. Write the voltage signal. (c) Draw both the voltage and current signals on the same graph. 2. Let a signal be defined as y(x) = (1 – x)2. Determine the...
(10) A Schmitt trigger is used to digitize a sinusoidal signal 6. Given that if Vin and 0.55Vo, then Vout-V if Vin0.5Vo...
(10) A Schmitt trigger is used to digitize a sinusoidal signal 6. Given that if Vin and 0.55Vo, then Vout-V if Vin0.5Vo, then Vout 0 Plot the behavior of the Schmitt sensor above for a cosine wave with maximum amplitude of Vo, (Vpeak-to-peak 2Vo) for two full cycles (2T where T is the arbitrary period) Assume zero offset and zero phase shift for the cosine wave. Identify key points on the graph.
(10) A Schmitt trigger is used to digitize...
One of the most important classes of time dependent signals are periodic signals. Periodic signals satisfy tho following signal equations, x(t) X(t) x(t+nt) for n 2,3. The periodic signals to b...
One of the most important classes of time dependent signals are periodic signals. Periodic signals satisfy tho following signal equations, x(t) X(t) x(t+nt) for n 2,3. The periodic signals to be observed in this laboratory assignment are shown below. In all the examples A represents the amplitude of the signal and may be given as the measurement from 0 to the peak value A, Apk or can be given as the measurement between A and -A which defines a peak-to-peak...
2. A 3 KHz sinusoidal signal Phase Modulates a carrier at 245.3 MHz. The modulating tone...
2. A 3 KHz sinusoidal signal Phase Modulates a carrier at 245.3 MHz. The modulating tone has an amplitude of 4 volts and the phase sensitivity of the modulator is 0.5 radians/volt. a. (15 points) Evaluate the required transmission bandwidth using Carson's Rule. b. (15 points) If the resulting PM signal is passed through an IBPF with bandwidth given by Carson's Rule (plus a few Hz), what percentage of the signal power is lost?
The sinusoidal modulating wave is applied to a phase modulator with phase sensitivity kp. The unmodulated carrier wave has frequency fc and amplitude Ac. a) Determine the spectrum of the resulting ph...
The sinusoidal modulating wave is applied to a phase modulator with phase sensitivity kp. The unmodulated carrier wave has frequency fc and amplitude Ac. a) Determine the spectrum of the resulting phase-modulated signal, assuming that the maximum phase deviationP4es not exceed 0.3 radians. b) Construct a phasor diagram for this modulated signal, and compare it with that of the corresponding narrow-band FM signal.
The sinusoidal modulating wave is applied to a phase modulator with phase sensitivity kp. The unmodulated carrier...
Need MatLab code Exercise: Use MATLAB to generate the sinusoidal waveform: x(t) = 3 cos(1200) Consider...
Need MatLab code
Exercise: Use MATLAB to generate the sinusoidal waveform: x(t) = 3 cos(1200) Consider the frequency of this sinusoid and use this information to select an appropriate time-step and time array that will allow this signal to be correctly represented and displayed on a new MATLAB figure window (display 4 periods of this wave only). Now set up an appropriate frequency array and use the fft() and fftshift() functions to generate and plot the Fourier Transform (magnitude spectra)...
Let Y (t) = sin(ωt + Θ) be a sinusoidal signal with random phase Θ ∼...
Let Y (t) = sin(ωt + Θ) be a sinusoidal signal with random phase Θ ∼ U[−π, π]. Find the pdf of the random variable Y (t) (assume here that both t and the radial frequency ω are constant). Comment on the dependence of the pdf of Y (t) on time t.
Write a MATLAB code for the question below. There is an initial signal containing 60 Hz...
Write a MATLAB code for the question below.
There is an initial signal containing 60 Hz sinusoid of amplitude 0.8 and a 150 Hz sinusoid of amplitude 1.2 corrupted by a noise - using the randn command - (zero-mean white noise with variance of 4). Plot the noisy signal in the time domain. After that compute the Fourier transform -using the fft command of the noisy signal, compute the two-sided spectrum. Define the frequency domain f and plot the single-sided...
(10) A Schmitt trigger is used to digitize a sinusoidal signal 6. Given that if Vin and 0.55Vo, then Vout-V if Vin0.5Vo, then Vout 0 Plot the behavior of the Schmitt sensor above for a cosine wave with maximum amplitude of Vo, (Vpeak-to-peak 2Vo) for two full cycles (2T where T is the arbitrary period) Assume zero offset and zero phase shift for the cosine wave. Identify key points on the graph.
(10) A Schmitt trigger is used to digitize...
One of the most important classes of time dependent signals are periodic signals. Periodic signals satisfy tho following signal equations, x(t) X(t) x(t+nt) for n 2,3. The periodic signals to be observed in this laboratory assignment are shown below. In all the examples A represents the amplitude of the signal and may be given as the measurement from 0 to the peak value A, Apk or can be given as the measurement between A and -A which defines a peak-to-peak...
2. A 3 KHz sinusoidal signal Phase Modulates a carrier at 245.3 MHz. The modulating tone has an amplitude of 4 volts and the phase sensitivity of the modulator is 0.5 radians/volt. a. (15 points) Evaluate the required transmission bandwidth using Carson's Rule. b. (15 points) If the resulting PM signal is passed through an IBPF with bandwidth given by Carson's Rule (plus a few Hz), what percentage of the signal power is lost?
The sinusoidal modulating wave is applied to a phase modulator with phase sensitivity kp. The unmodulated carrier wave has frequency fc and amplitude Ac. a) Determine the spectrum of the resulting phase-modulated signal, assuming that the maximum phase deviationP4es not exceed 0.3 radians. b) Construct a phasor diagram for this modulated signal, and compare it with that of the corresponding narrow-band FM signal.
The sinusoidal modulating wave is applied to a phase modulator with phase sensitivity kp. The unmodulated carrier...
Need MatLab code
Exercise: Use MATLAB to generate the sinusoidal waveform: x(t) = 3 cos(1200) Consider the frequency of this sinusoid and use this information to select an appropriate time-step and time array that will allow this signal to be correctly represented and displayed on a new MATLAB figure window (display 4 periods of this wave only). Now set up an appropriate frequency array and use the fft() and fftshift() functions to generate and plot the Fourier Transform (magnitude spectra)...
Write a MATLAB code for the question below.
There is an initial signal containing 60 Hz sinusoid of amplitude 0.8 and a 150 Hz sinusoid of amplitude 1.2 corrupted by a noise - using the randn command - (zero-mean white noise with variance of 4). Plot the noisy signal in the time domain. After that compute the Fourier transform -using the fft command of the noisy signal, compute the two-sided spectrum. Define the frequency domain f and plot the single-sided...
