A generator with an rms voltage of 130 V is connected in series to a resistor...

Question

Question

A generator with an rms voltage of 130 V is connected in series to a resistor 3.65 kΩ and a capacitor 3.00 μF .

1. At what frequency must this circuit be operated for the current to lead the voltage by 29.0 ∘? (Answer Hz)

2. Using the frequency found in part A, find the average power consumed by this circuit. (Answer in W

science physics

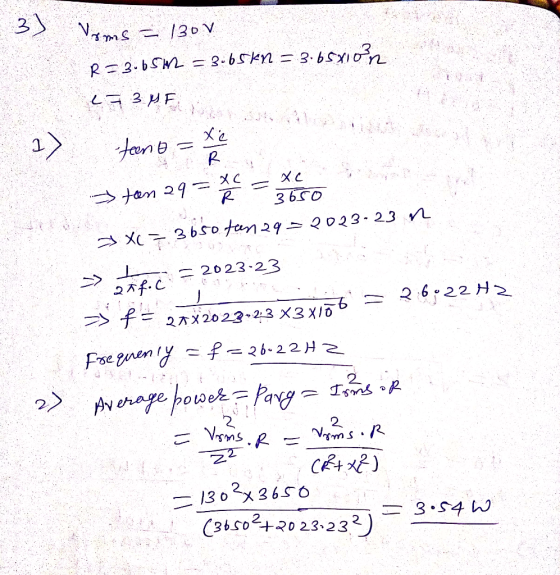

Answer 1

Answer #1

Answer 2
