Question

Please finish this Assembly code.

Modify it to compute the number of elements in the deiiference of SetA and SetB (as in HW1-2) and store that number at the memory
location labeled DifferenceSize. Again, assume that SetA has eight integers and SetB has ten,
and that the two sets are “sets” in that there are no duplicate elements within an individual set but
they may be in any order.

#
# This program determines difference of SetA (always of size 8) and SetB
# (always of size 10) and stores the size of the difference.

# NOTE:
# The program should work on multiple test cases, not just the one provided.
# For full credit, be sure to document your code.

.data
SetA: .word 8, 3, -27, -60, 25, 17, 26, 9
SetB: .word 5, 17, -7, 3, -25, 27, 42, 26, 8, -60
DifferenceSize: .alloc 1

.text
       # write your code here...

       jr $31              # return to OS

Answer 1

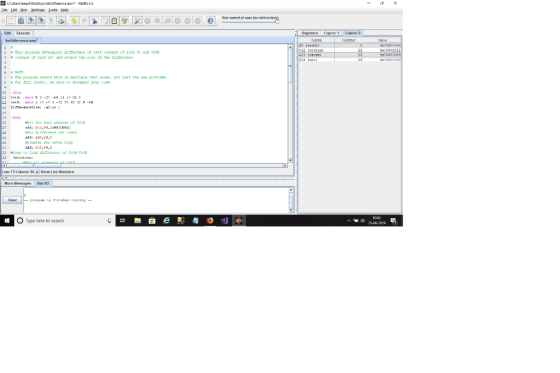

Screenshot

Program

#
# This program determines difference of SetA (always of size 8) and SetB
# (always of size 10) and stores the size of the difference.

# NOTE:
# The program should work on multiple test cases, not just the one provided.
# For full credit, be sure to document your code.

.data
SetA: .word 8 3 -27 -60 25 17 26 9
SetB: .word 5 17 -7 3 -25 27 42 26 8 -60
DifferenceSize: .alloc 1

.text
       #Get the base address of SetA
       addi $t0,$0,0x00000000
       #for difference set count
       addi $s0,$0,0
       #counter for outer loop
       addi $t3,$0,0
#loop to find difference of SetA-SetB
OuterLoop:
      #Get all elements of SetA
      addi $1,$0,8
      beq $1,$t3,Exit
      #Flag variable
      addi $t2,$0,0
      #Get elements from SetA
      lw $t5,0($t0)
      #Base address of SetB
      addi $t1,$0,0x00000020
      #Counter for second loop
      addi $t4,$0,0
#Loop through to get setB values
InnerLoop:
      addi $1,$0,10
      beq $1,$t4,InnerExit
      #Get eleemnts of SetB
      lw $t6,0($t1)
      #compare
      bne $t5,$t6,Inc
      #flag set if found SetA elemnt in SetB
      addi $t2,$t2,1
Inc:
     #Increment SetB address
     addi $t1,$t1,4
     #Increment counter
     addi $t4,$t4,1
     j InnerLoop
InnerExit:
      #check flag set or not
      addi $1,$0,0
      bne $1,$t2,next
      #f not set increment difference counter
      addi $s0,$s0,1
#Increment address of SetA for next element
#Increment outer loop counter
next:
     addi $t0,$t0,4
     addi $t3,$t3,1
     j OuterLoop
#store and display
Exit:
    #Get address of difference size
    la $t7,DifferenceSize
    #store difference size in allocated space
    sw $s0,0($t7)
    #Display store difference size
    addi $v0,$0,1
    lw $a0,0($t7)
    syscall
     jr $31              # return to OS

-------------------------------------------------------

Output

3

-------------------

Note:-

I am using MARS 4.5

I assume you want SetA-SetB count
