What is the field at point (a), located 0.3 m above and 0.2 m to the...

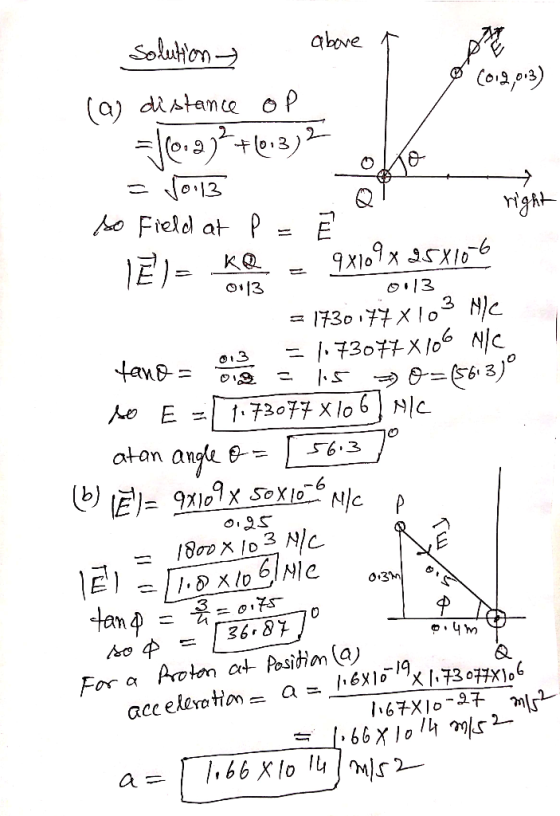

What is the field at point (a), located 0.3 m above and 0.2 m to the right of a 25 micro-C charge and 0.4 m to the left and 0.3 m above a -50 micro-C charge? If a proton is placed at point (a), what is its acceleration?
Homework Answers
Add Answer to:
What is the field at point (a), located 0.3 m above and 0.2 m to
the...
A point charge of +2 micro-coulombs is placed at x = +0.3 m, y = 0...
A point charge of +2 micro-coulombs is placed at x = +0.3 m, y = 0 m and a point charge of -9 micro-coulombs is placed at x = 0 m, y = +0.5 m. What is the magnitude of the total electric field produced by both charges in 105 N/C at the origin?
A point charge of +3 micro-coulombs is placed at x = +0.3 m, y = 0...
A point charge of +3 micro-coulombs is placed at x = +0.3 m, y = 0 m and a point charge of -6 micro-coulombs is placed at x = 0 m, y = +0.6 m. What is the magnitude of the total electric field produced by both charges in 105 N/C at the origin?
A point charge of +5 micro-coulombs is placed at x = +0.3 m, y = 0...
A point charge of +5 micro-coulombs is placed at x = +0.3 m, y = 0 m and a point charge of -7 micro-coulombs is placed at x = 0 m, y = +0.8 m. What is the magnitude of the total electric field produced by both charges in 105 N/C at the origin?
Question 5 1 pts A uniform sheet of charge lies on a horizontal surface. A point...
Question 5 1 pts A uniform sheet of charge lies on a horizontal surface. A point charge of -8 micro- coulombs is located 0.21 meters below the sheet. At a point 0.2 meters above the sheet, directly above the charge, the total electric field from the sheet and the point charge is zero. Then, the point charge below the sheet is removed and a point charge of -9 micro- coulombs with a mass of 0.3 kg is placed 0.2 meters...
A point charge of +10 micro-coulombs is placed at x = +0.2 m, y = 0...
A point charge of +10 micro-coulombs is placed at x = +0.2 m, y = 0 m and a point charge of -4 micro-coulombs is placed at x = 0 m, y = +0.38 m. What is the angle of the total electric field produced by both charges at the origin? In degrees measured counter-clockwise from the +x axis?
ABC Amplitudes Time t Point A Point B Point C 0.3 m 0 0 s 0.2...
ABC Amplitudes Time t Point A Point B Point C 0.3 m 0 0 s 0.2 s 0.4 s 0.2 m 0 0 0 3. The figure above shows two wave pulses on a spring traveling toward each other at time t0. At t0.2s the pulses completely overlap A student measures the amplitudes at points A, B and C at the three times shown in the table. Which of the following is the most likely set of values that the...
Please answer the following question in detail. A point charge of +3 micro-coulombs is placed at...
Please answer the following question in detail.
A point charge of +3 micro-coulombs is placed at x = +0.4 m, y = 0 m and a point charge of -8 micro-coulombs is placed at x-O m, y +0.3 m. What is the magnitude of the total electric field produced by both charges in 105 N/C at the origin?
Problem 3: Two equal charges g.-9-2x 10-6 C are located at z 0, V-0.3 m and...
Problem 3: Two equal charges g.-9-2x 10-6 C are located at z 0, V-0.3 m and z 0, V 0.3 m respectively. What are the magnitude and direction of the total electric force that q and g exert on a third charge 4.0 x 10 C located at 0.4 m, y 0m? Problem 4: What is the magnitude of the electric field E at a Geld point 2.0 m from a point charge q 4.0 x 10-9 C? Problem 5:...
Two charges q1 = 2.0 C and q2 = -2.0 C are located 1.0 m apart....
Two charges q1 = 2.0 C and q2 = -2.0 C are located 1.0 m apart. What is the electric field exactly midway between them? a) 14.4 X 104 N/C to the right b) 14.4 X 104 N/C to the left c) 7.2 X 104 N/C to the right d) 7.7X 104 N/C to the left What is the acceleration a proton placed at this point (i.e. the point midway between the charges in the previous problem)? a) 6.9 X...
A uniform sheet of charge lies on a horizontal surface. A point charge of -9 micro-coulombs...
A uniform sheet of charge lies on a horizontal surface. A point charge of -9 micro-coulombs is located 0.2 meters below the sheet. At a point 0.23 meters above the sheet, directly above the charge, the total electric field from the sheet and the point charge is zero. Then, the point charge below the sheet is removed and a point charge of -9 micro-coulombs with a mass of 0.2 kg is placed 0.23 meters above the sheet and launched vertically...
Question 5 1 pts A uniform sheet of charge lies on a horizontal surface. A point charge of -8 micro- coulombs is located 0.21 meters below the sheet. At a point 0.2 meters above the sheet, directly above the charge, the total electric field from the sheet and the point charge is zero. Then, the point charge below the sheet is removed and a point charge of -9 micro- coulombs with a mass of 0.3 kg is placed 0.2 meters...
ABC Amplitudes Time t Point A Point B Point C 0.3 m 0 0 s 0.2 s 0.4 s 0.2 m 0 0 0 3. The figure above shows two wave pulses on a spring traveling toward each other at time t0. At t0.2s the pulses completely overlap A student measures the amplitudes at points A, B and C at the three times shown in the table. Which of the following is the most likely set of values that the...
Please answer the following question in detail.
A point charge of +3 micro-coulombs is placed at x = +0.4 m, y = 0 m and a point charge of -8 micro-coulombs is placed at x-O m, y +0.3 m. What is the magnitude of the total electric field produced by both charges in 105 N/C at the origin?
Problem 3: Two equal charges g.-9-2x 10-6 C are located at z 0, V-0.3 m and z 0, V 0.3 m respectively. What are the magnitude and direction of the total electric force that q and g exert on a third charge 4.0 x 10 C located at 0.4 m, y 0m? Problem 4: What is the magnitude of the electric field E at a Geld point 2.0 m from a point charge q 4.0 x 10-9 C? Problem 5:...
