please solve this one 5-12. [5] The square of a directed graph G = (V,E) is...

please solve this one

5-12. [5] The square of a directed graph G = (V,E) is the graph G2 = (V,E2) such that (u,w) ∈ E2 iff there exists v ∈ V such that (u,v) ∈ E and (v,w) ∈ E; i.e., there is a path of exactly two edges from u to w.
Give efficient algorithms for both adjacency lists and matrices.
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

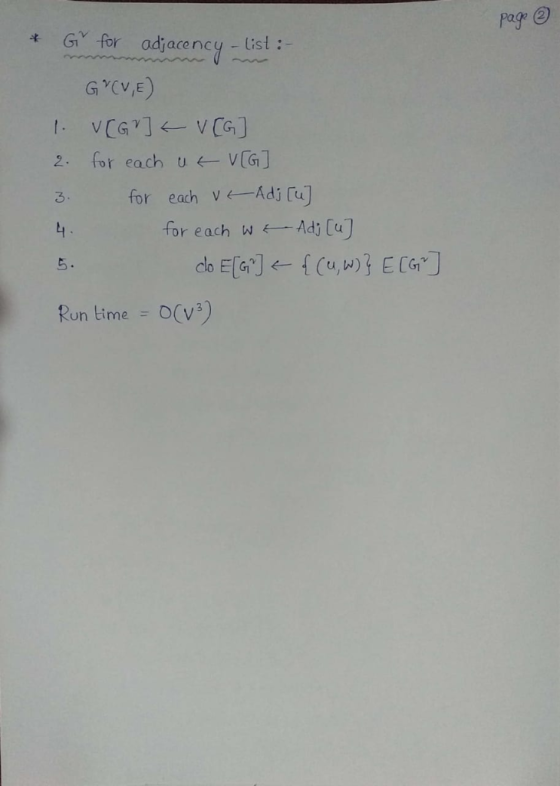

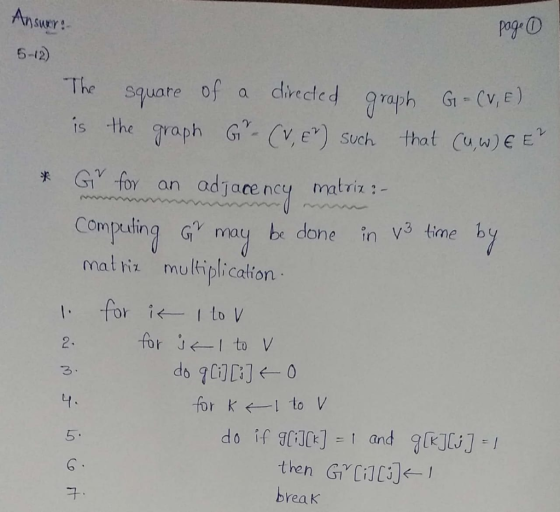

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
please solve this one 5-12. [5] The square of a directed graph G = (V,E) is...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Let G = (V, E) be a directed acyclic graph with n vertices and m edges....

    Let G = (V, E) be a directed acyclic graph with n vertices and m edges. Give an O(n + m) time algorithm that determines if G contains a directed path that touches every vertex in G exactly once. The graph G is given by its adjacency list representation.

  • Give an efficient algorithm that takes a directed graph G = (V, E) and two vertices...

    Give an efficient algorithm that takes a directed graph G = (V, E) and two vertices u, v E V, and determines if there are at least two edge-disjoint paths in G from u to v. i.e., your algorithm should determine whether there are at least two paths from u to v in G that have no edges in common. Argue your algorithm's correctness and analyze its time complexity.

  • Viterbi algorithm We can use dynamic programming on a directed graph G = (V, E) for...

    Viterbi algorithm We can use dynamic programming on a directed graph G = (V, E) for speech recognition. Each edge (u, v) in E is labeled with a sound s(u, v) from a finite set S of sounds. The labeled graph is a formal model of a person speaking a restricted language. Each path in the graph starting from a distinguished vertex v0 in V corresponds to a possible sequence of sounds produced by the model. The label of a...

  • 114points Let G- (V,E) be a directed graph. The in-degree of a vertex v is the...

    114points Let G- (V,E) be a directed graph. The in-degree of a vertex v is the number of edges (a) Design an algorithm (give pseudocode) that, given a vertex v EV, computes the in-degree of v under (b) Design an algorithm (give pseudocode) that, given a vertex v E V, computes the in-degree of v incident into v. the assumption that G is represented by an adjacency list. Give an analysis of your algorithm. under the assumption that G is...

  • 2. Design a deterministic algorithm to solve the following problem. input: A directed acyclic graph G...

    2. Design a deterministic algorithm to solve the following problem. input: A directed acyclic graph G = (V, E) stored using adjacency lists. output: A Hamiltonian path, if such a path exists. Otherwise, return NONE. Your algorithm must take O(|V| + |E|) time. You must describe your algorithm in plain English (no pseudocode) and you must explain why the running time of your algorithm is O(|V| + |E|). Maximum half a page

  • 3. Give an efficient algorithm that takes as input a directed graph G-(V,E) with edges labeled wi...

    Please show your work 3. Give an efficient algorithm that takes as input a directed graph G-(V,E) with edges labeled with either 0 or 1, and vertices s and t that ouputs TRUE if and only if there is a path (not necessarily simple) that goes from s to t such that the binary sequence of edges in the path avoids the substring "11" and outputs FALSE otherwise. (For example, the string 10100010 avoids 11 but the string 00101101110 does...

  • We are given a graph G = (V,E) where V represents a set of locations and...

    We are given a graph G = (V,E) where V represents a set of locations and E represents a communications channel between two points. We are also given locations s, t ∈ V , and a reliability function r : V × V → [0, 1]. You need to give an efficient algorithm which will output the reliability of the most reliable path from s to t in G. For any points u, v ∈ V , r(u, v) is...

  • 5. Here are the vertices and edges of directed graph G: V= {2.6.c.de.f} E= {ab, ac,...

    5. Here are the vertices and edges of directed graph G: V= {2.6.c.de.f} E= {ab, ac, af ca. bc. be.bf. cd, ce, de, df). Weights: w(ab) = 2 w(ac) = 5, w(af) = 10, w(ca) = 2. w(be) = 2. w(be) = 10, w(bf) = 11. w(cd)= 9. w(ce) = 7. w(de) = 2. w(df) = 2. a. Draw the Graph. This is a directed, weighted graph so you need to include arrows and weights. You can insert a pic...

  • Problem 1: Dynamic Programming in DAG Let G(V,E), |V| = n, be a directed acyclic graph...

    Problem 1: Dynamic Programming in DAG Let G(V,E), |V| = n, be a directed acyclic graph presented in adjacency list representation, where the vertices are labelled with numbers in the set {1, . . . , n}, and where (i, j) is and edge inplies i < j. Suppose also that each vertex has a positive value vi, 1 ≤ i ≤ n. Define the value of a path as the sum of the values of the vertices belonging to...

  • Problem 5. (12 marks) Connectivity in undirected graphs vs. directed graphs. a. (8 marks) Prove that...

    Problem 5. (12 marks) Connectivity in undirected graphs vs. directed graphs. a. (8 marks) Prove that in any connected undirected graph G- (V, E) with VI > 2, there are at least two vertices u, u є V whose removal (along with all the edges that touch them) leaves G still connected. Propose an efficient algorithm to find two such vertices. (Hint: The algorithm should be based on the proof or the proof should be based on the algorithm.) b....
