A negatively charged particle is moving the +z direction in a region that contains a uniform...

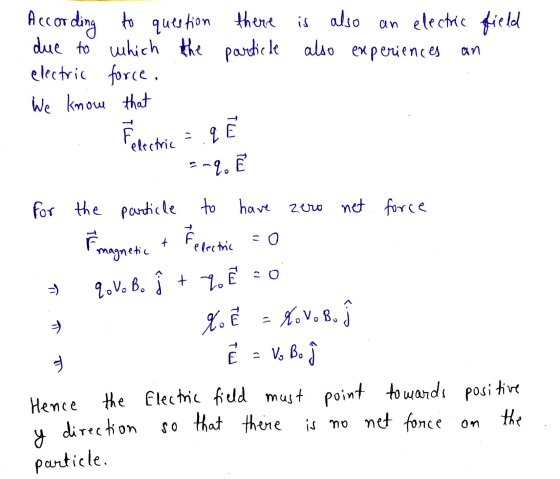

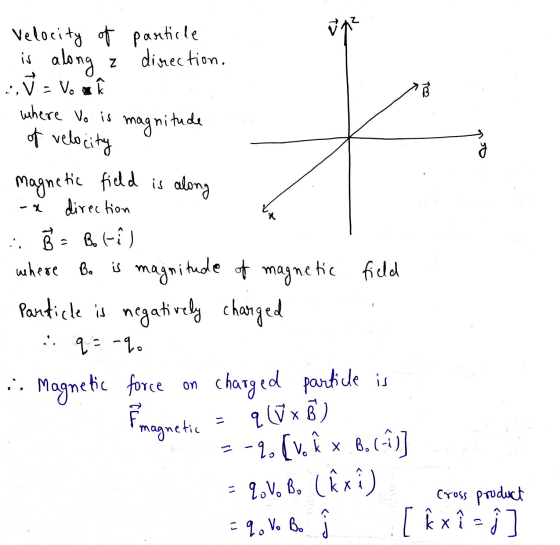

A negatively charged particle is moving the +z direction in a region that contains a uniform magnetic field along the -x direction. In what direction must an electric field point so that there is no net force on the particle? please explain in detail
Homework Answers
pPlease
give a positive rating to this answer.Thank youAdd Answer to:
A negatively charged particle is moving the +z direction in a
region that contains a uniform...
