Question

Design a program using a RAPTOR flowchart that has two parallel arrays: a String array named people that is initialized with the names of twenty of your friends, and a String array named phoneNumbers that is initialized with your friends’ phone numbers. The program should allow the user to enter a person’s name. It should then search for that person in the people array. If the person is found, it should get that person’s phone number from the phoneNumbers array and display it. If the person is not found in the people array, the program should display a message indicating so.

Answer 1

Dear student, according to the question, Here I am attaching Program in C++ (generated by Raptor)

#include <iostream>
#include <string>

using namespace std;
int main()
{
string raptor_prompt_variable_zzyz;
?? phone;
?? name;
?? i;
?? search;
?? key;
?? result;
??[] people = new ??[??+1];
??[] phonenumber = new ??[??+1];

i =1;
while (!(i>20))
{
raptor_prompt_variable_zzyz ="Enter Person Name";
cout << raptor_prompt_variable_zzyz << endl;
cin >> name;
people[i] = name;
i =i+1;
}
i =1;
while (!(i>20))
{
raptor_prompt_variable_zzyz ="Enter Phone Number";
cout << raptor_prompt_variable_zzyz << endl;
cin >> phone;
phonenumber[i] = phone;
i =i+1;
}
raptor_prompt_variable_zzyz ="Enter a Person Name";
cout << raptor_prompt_variable_zzyz << endl;
cin >> search;
key =0;
i =1;
while (!(i<=20))
{
if (people(i)==search)
{
key =1;
result =phonenumber(i);
}
else
{
}
i =i+1;
}
if (key==1)
{
cout << result << endl; }
else
{
cout << "Entered Person is Not Found" << endl; }

return 0;
}

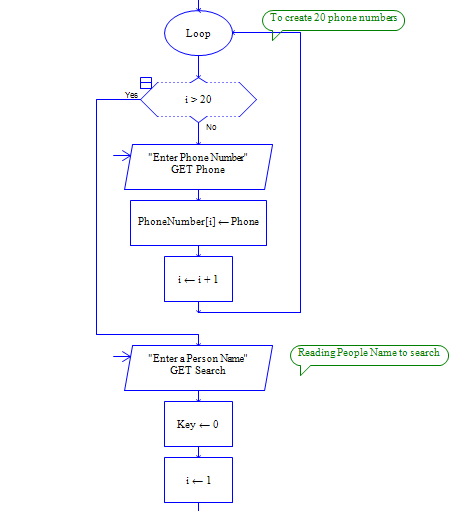

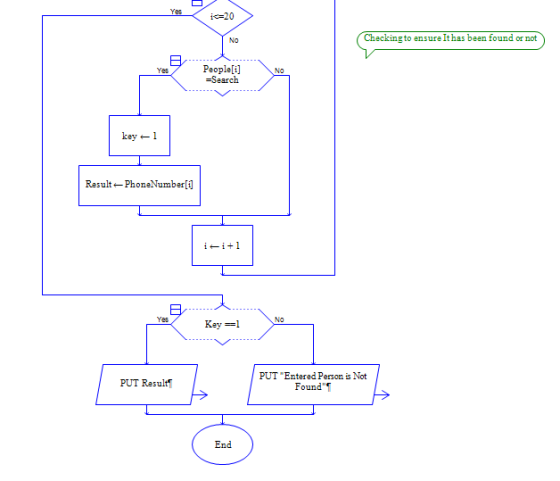

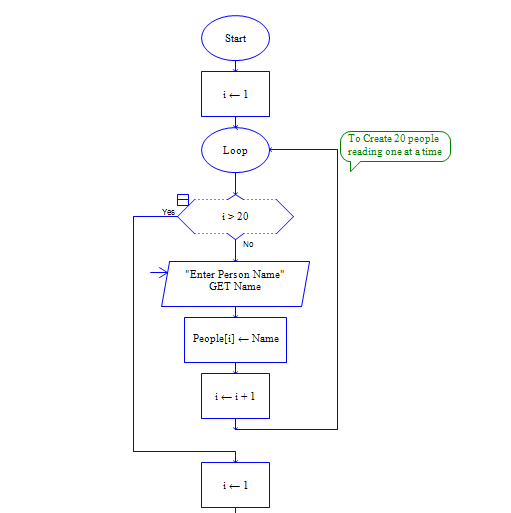

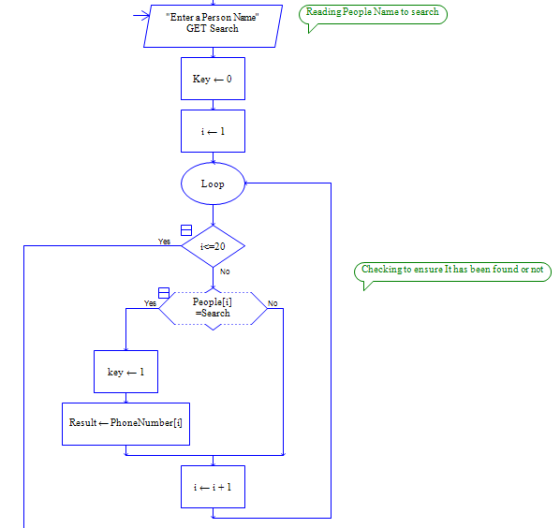

Raptor design

All the best. Feel free to contact if any doubts
