4 AAA batteries are connected in parallel to build one single power source. Each battery has...
4 AAA batteries are connected in parallel to build one single power source. Each battery has a voltage of 1.5 V and and internal resistance r = 0.15 Ω.

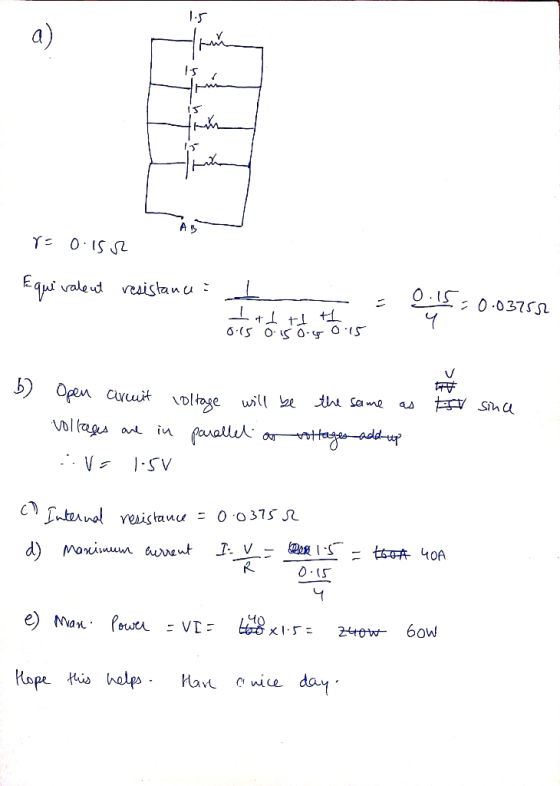

a. Draw a schematic of the built power source.
b. What is the (open circuit) voltage of this power source?
c. What is the internal resistance of this power source resistance?
d. What is the maximum current that can be drawn from this power source (hint: this value won’t be attained for long)?
e. What is the maximum usable power that can be drawn from this power source (i.e. not dissipated as heat in the power source)?
Homework Answers
Add Answer to:
4 AAA batteries are connected in parallel to build one single
power source. Each battery has...
Two circuits A and B are connected in parallel to a 12 V battery which has...
Two circuits A and B are connected in parallel to a 12 V battery which has an internal resistance of 0.25 Ω. Circuit A consists of two resistors 1 Ω and 5 Ω connected in series. Circuit B consists of two resistors 4 Ω and 7 Ω connected in parallel. Calculate the currents flowing through and the voltages across each of the five resistors (the four resistors of circuits A and B and the internal resistance). Calculate the power dissipated...
1. Two 20 v batteries are in series, connected positive pole to negative pole. They each...
1. Two 20 v batteries are in series, connected positive pole to negative pole. They each have internal resistance of 5 Ω. What power is dissipated in one of the batteries? 1). 80 watts. 2). 200 watts 3). 150 watts 4). 50 watts 2. A 12 μF capacitor is charged using a 7.0 v battery. The battery is then removed and a 1.5 MΩ resistor is connected to the capacitor. How many seconds pass before the voltage across the resistor...
Six 1.50 V batteries are connected in series, with the positive terminal of one battery connected...
Six 1.50 V batteries are connected in series, with the positive terminal of one battery connected to the negative terminal of the next. What is the emf of the combination? If the internal resistance of each battery is 2.00 Ω, find the terminal voltage when there is a current of 200 mA in the circuit.
Two AAA-size lithium batteries are connected in series in a flashlight. Each battery has 3.5 ...
Two AAA-size lithium batteries are connected in series in a flashlight. Each battery has 3.5 volt and 4- Amp-hour capacity. If the flashlight is connected to a light bulb with 10 Ohms resistance. How long does it take to drain the batteries?
An MP3 player takes two AAA batteries (1.5 V each) and has earbuds with a resistance...
An MP3 player takes two AAA batteries (1.5 V each) and has earbuds with a resistance of 60 Ω. Figure out the current used. A charged AAA battery has a capacity of 1000 mA hrs. For how many hours can you listen to music assuming you can totally drain the batteries? The batteries are in series to get 3 V.
A real battery is not just an emf. We can model a real 1.5 V battery as a 1.5 V emf in series with a resistor known as...
A real battery is not just an emf. We can model a real 1.5 V battery as a 1.5 V emf in series with a resistor known as the "internal resistance", as shown in the figure(Figure 1) . A typical battery has 1.0 Ω internal resistance due to imperfections that limit current through the battery. When there's no current through the battery, and thus no voltage drop across the internal resistance, the potential difference between its terminals is 1.5 V,...
Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a...
Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a value of 28 Ω and resistor B carries a current of 0.2505 A. What is the total power dissipated in the circuit?Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a value of 28 Ω and resistor B carries a current of 0.2505 A. What is the total power dissipated in the circuit?
4. A set of batteries are put into a circuit. a. Explain if how it is...
4. A set of batteries are put into a circuit. a. Explain if how it is possible for the terminal voltage to be less than, equal to, and/or greater than the emf of the batteries. b. Discuss how the batteries can be arranged to reduce internal resistance, and the affect this would have on the terminal voltage. 7.2.24 4. Suppose the voltage output of a battery is 10.0V in a parallel circuit, and the resistances are Ri=4.0002, Rz=5.00., and R3=6.092....
A resistor with resistance R is connected to a battery that has emf 14.0 V and...
A resistor with resistance R is connected to a battery that has emf 14.0 V and internal resistance r = 0.410 Ω. For what two values of R will the power dissipated in the resistor be 81.0W? (There is two answers)
7-11 please 7. Two parallel conducting plates are connected to a constant voltage source. The magnitude...
7-11 please
7. Two parallel conducting plates are connected to a constant voltage source. The magnitude of the electric field between the plates is 2,000 N/C. If the voltage is halved and the distance between the plates is reduced to 1/4 the original distance, the magnitude of the new electric field is (A) 8000 N/C (B) 1,600 N/C (C) 2,400 N/C (D) 4,000 N/C (E) 10,000 N/C 8. A parallel-plate capacitor is charged by connection to a battery. If the...
4. A set of batteries are put into a circuit. a. Explain if how it is possible for the terminal voltage to be less than, equal to, and/or greater than the emf of the batteries. b. Discuss how the batteries can be arranged to reduce internal resistance, and the affect this would have on the terminal voltage. 7.2.24 4. Suppose the voltage output of a battery is 10.0V in a parallel circuit, and the resistances are Ri=4.0002, Rz=5.00., and R3=6.092....
7-11 please
7. Two parallel conducting plates are connected to a constant voltage source. The magnitude of the electric field between the plates is 2,000 N/C. If the voltage is halved and the distance between the plates is reduced to 1/4 the original distance, the magnitude of the new electric field is (A) 8000 N/C (B) 1,600 N/C (C) 2,400 N/C (D) 4,000 N/C (E) 10,000 N/C 8. A parallel-plate capacitor is charged by connection to a battery. If the...
